Miller Spectrum 875 User Manual

. A complete Parts List is available at www.MillerWelds.com
OM-264259 Page 30

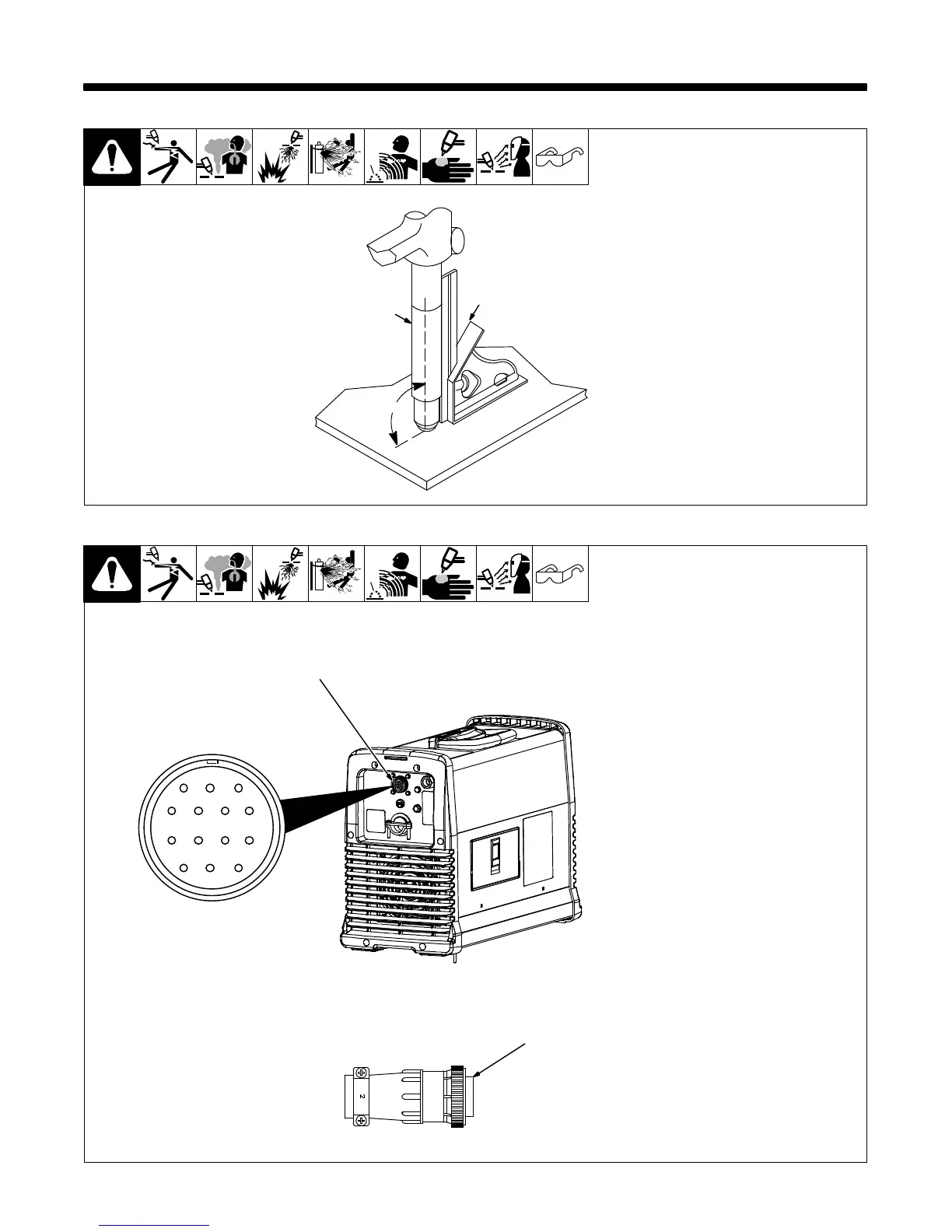

SECTION 7 − MECHANIZED OPERATION
7-1. XT60M Mounting Position
1 XT60M Machine Torch
2 Square
Use a square to align torch perpen-
dicular to the work surface.
1
90°
2
7-2. Remote Control Receptacle
243 336-A / 256 574-A
. Remote trigger will only oper-
ate with a machine torch in-
stalled. Remote trigger is dis-
abled when a handheld torch is
installed.
1 Remote Control Receptacle
RC61
RC61 provides remote arc start
inputs when using the XT60M
machine torch. Connect supplied
remote control cable or remote
pendant control to receptacle on
rear panel.
2 Hand Torch Adapter Plug
The supplied hand torch adapter
plug can be used for switching back
to a hand-held torch for hand cutting
operations or for using the
hand-held torch instead of the ma-
chine torch.
21
5
3
476
9811 10
1214 13
1
2

Miller Spectrum 875 Specifications

General

Amperage Output	20-60 A
CNC Interface	Optional
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Frequency	50/60 Hz
Output Current Range	20-60 A
Welding Process	Plasma cutting
TIG Start	Not applicable
Rated Output	60 A
Cutting Capability	3/4 in (19 mm)
Cutting Capacity	1 in (25 mm)
Severance Capacity	1-1/4 in (32 mm)
Input Phase	1- or 3-Phase
Duty Cycle	60%
