OM-265 363 Page 31

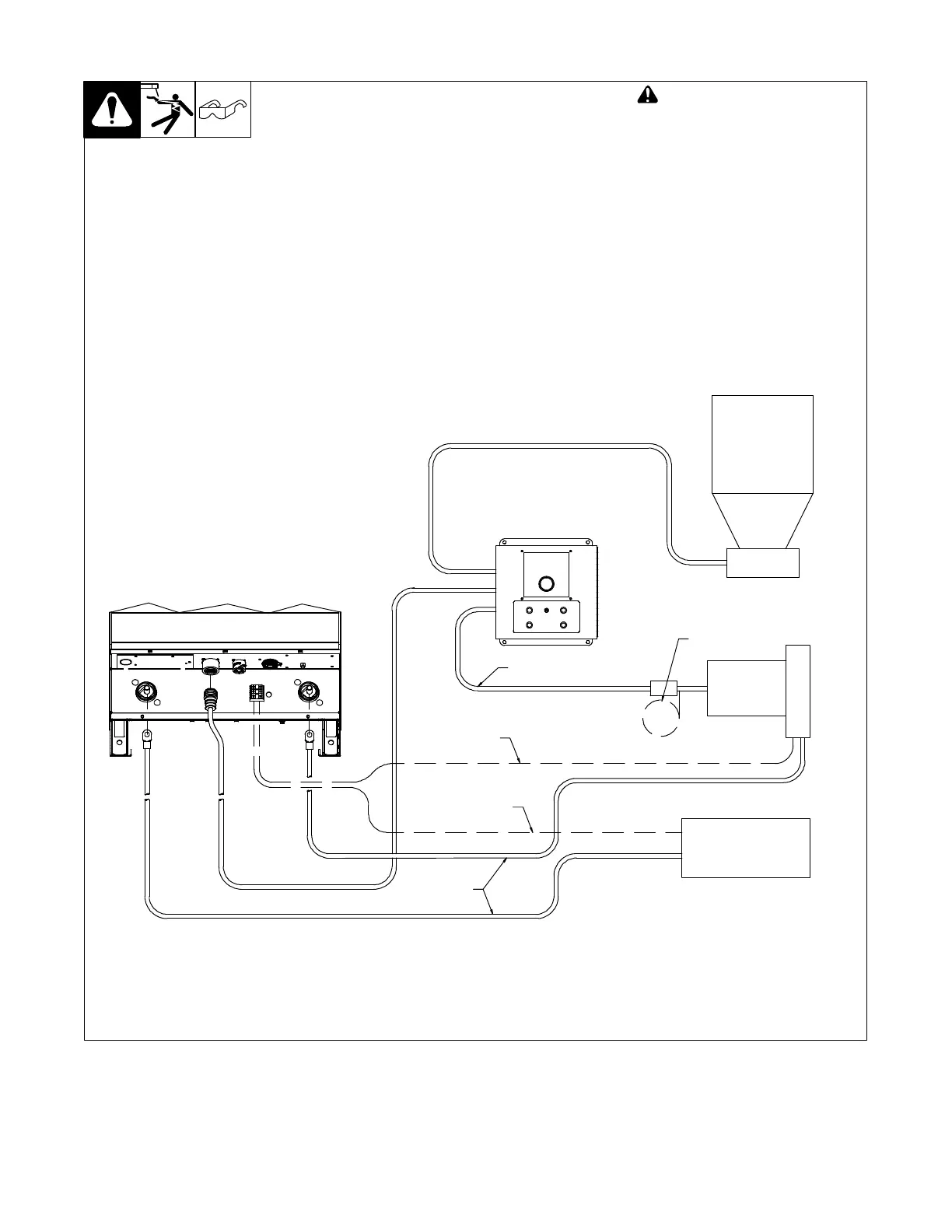

D. Basic Sub Arc (SAW) Equipment Connections For DCEN
Ref. 254 240-A
! Turn off welding power
source and weld control, and
disconnect input power be-
fore making connections.
. Use remote voltage sense
leads in all applications.
. Suggested size for remote volt-
age sense wire is 12 gauge or
larger.
. Tie-off and secure elec-
trode-volt sense lead from mo-
tor cable when setting up to op-
erate in DCEN.
. DC 650/800 Digital model
shown. Connections are the
same for DC 1000/1250 Digital
models.
Flux System
Flux Hopper
SubArc Interface
Motor Extension Cable
Workpiece
Weld Cable
From Terminal Strip
TE2 Terminal P
From Terminal Strip
TE2 Terminal N
Electrode Volt-sense Lead
From Motor Cable
Wire
Drive
Assembly
To Next Page
