Miller SubArc - Specifications; Serial Number and Rating Label Location; Product Specifications; Dimensions and Mounting Hole Layout

OM-253893 Page 11
SECTION 4 − SPECIFICATIONS
4-1. Serial Number And Rating Label Location
The serial number and rating information for the analog controller is located on the side . Use rating label to determine input power requirements and/or
rated output. For future reference, write serial number in space provided on back cover of this manual.
4-2. Specifications
Specification Description
Type Of Input Power From Welding
Power Source
Single-Phase 24 Volts AC, 25 Amperes, 50/60 Hertz
Overall Dimensions Including Knobs,
Receptacles, Etc.
Height: 11-1/2 in. (292 mm); Width: 12-1/2 in. (318 mm); Depth: 7 in. (178 mm)
Weight Net: 18.1 lb (8.2 kg)
Weld Voltage And Amperage
Capacity (AC Or DC)
0 To 60 Volts
0 To 1500 Amperes
Wire Feed Speed Range Dependent On Motor In System

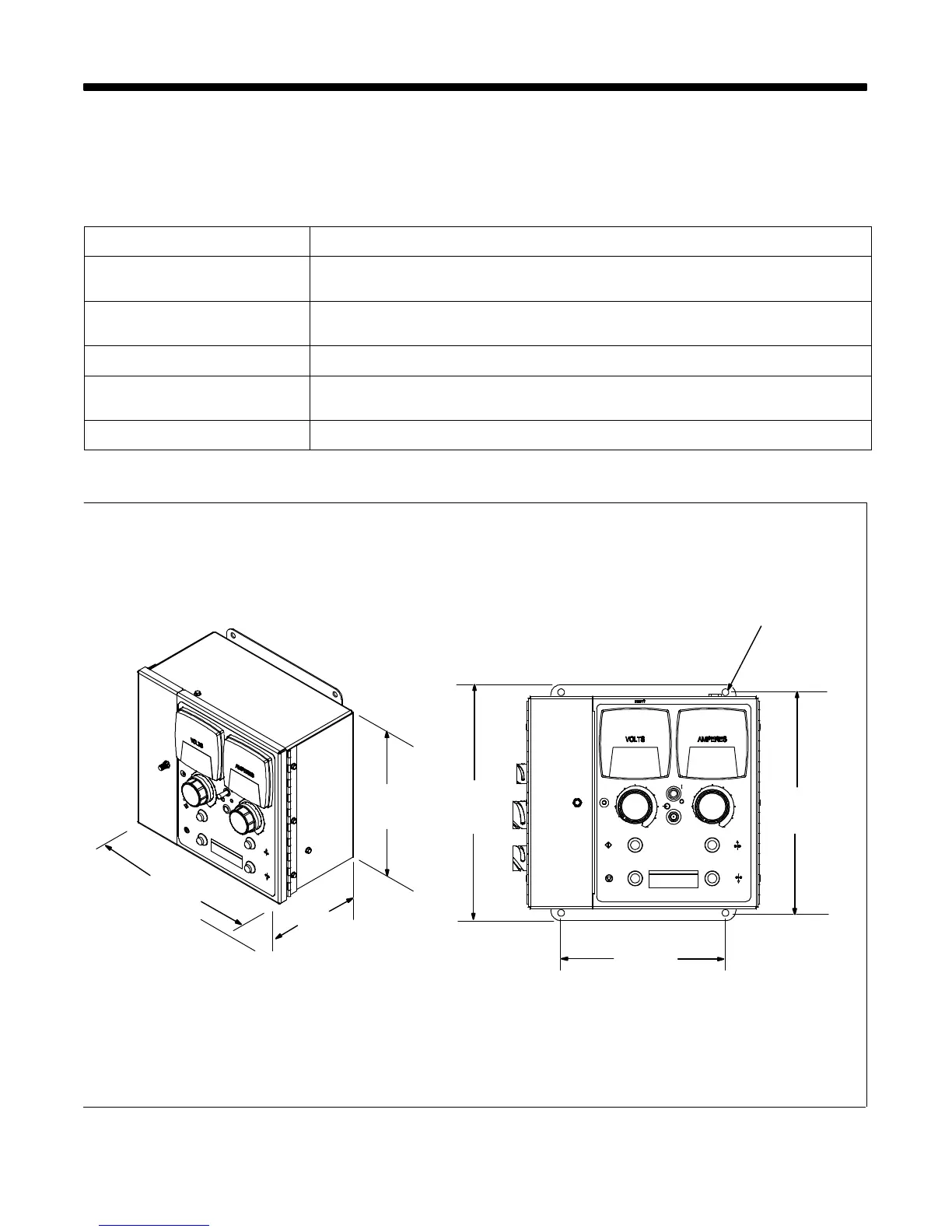

4-3. Dimensions And Mounting Hole Layout
* Includes front panel knobs
265694-A / 266728-A
10-1/4 in.
(260 mm)
7 in.
(178 mm)*
5/16 in.
Dia. 4 Holes
(7.9 mm)
 Digital model shown, dimensions are the same for analog models.
12 in.
(305 mm)
11-1/2 in.
(292 mm)
10-3/4 in.
(273 mm)
8 in.
(203 mm)
