OM-253893 Page 17

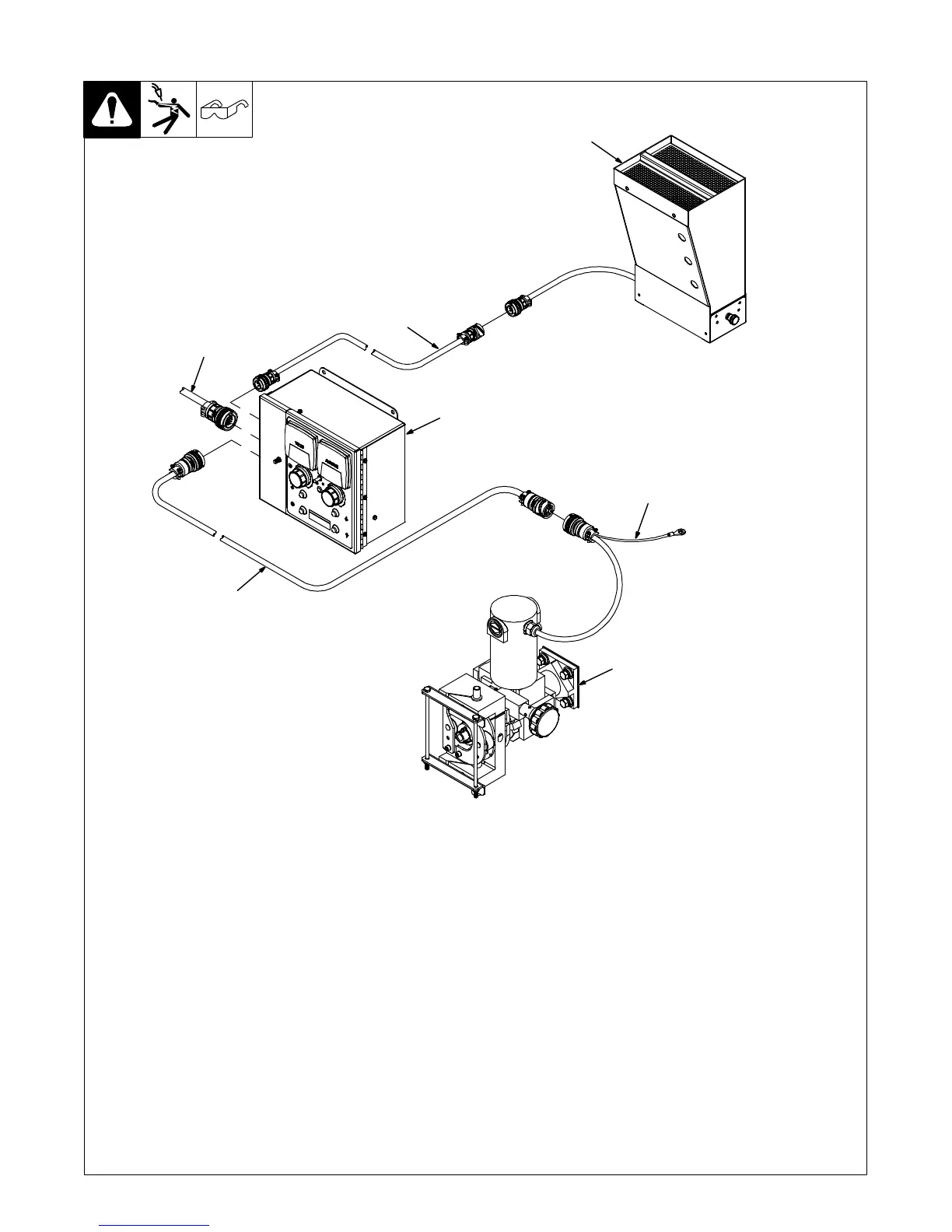

5-8. SubArc Interface Analog Plug Connections
265694-A / 254593-C
1 SubArc Interface
2 Motor Extension Cable Part No.
254232 XXX
XXX refers to the cable length in feet (e.g.
010 suffix is a 10 ft extension cable).
3 Wire Drive Assembly
4 Digital Flux Hopper
5 Digital Flux Hopper Extension Cable
Part No. 260623 XXX
XXX refers to the cable length in feet (e.g.
010 suffix is a 10 ft extension cable).
6 Power Source Control Cable Part
No. 260622 XXX
XXX refers to the cable length in feet (e.g.
030 suffix is a 30 ft control cable).
7 Positive Volt Sense Lead
Connect positive volts sense leads to
torch.
Motor shown without feed roller guard.
5
4
6
2
7
3
1
