Millipore DIRECT-Q 3 SYSTEM User Manual

INSTALLATION
- 10 -
4-2 CONNECTION OF TUBING

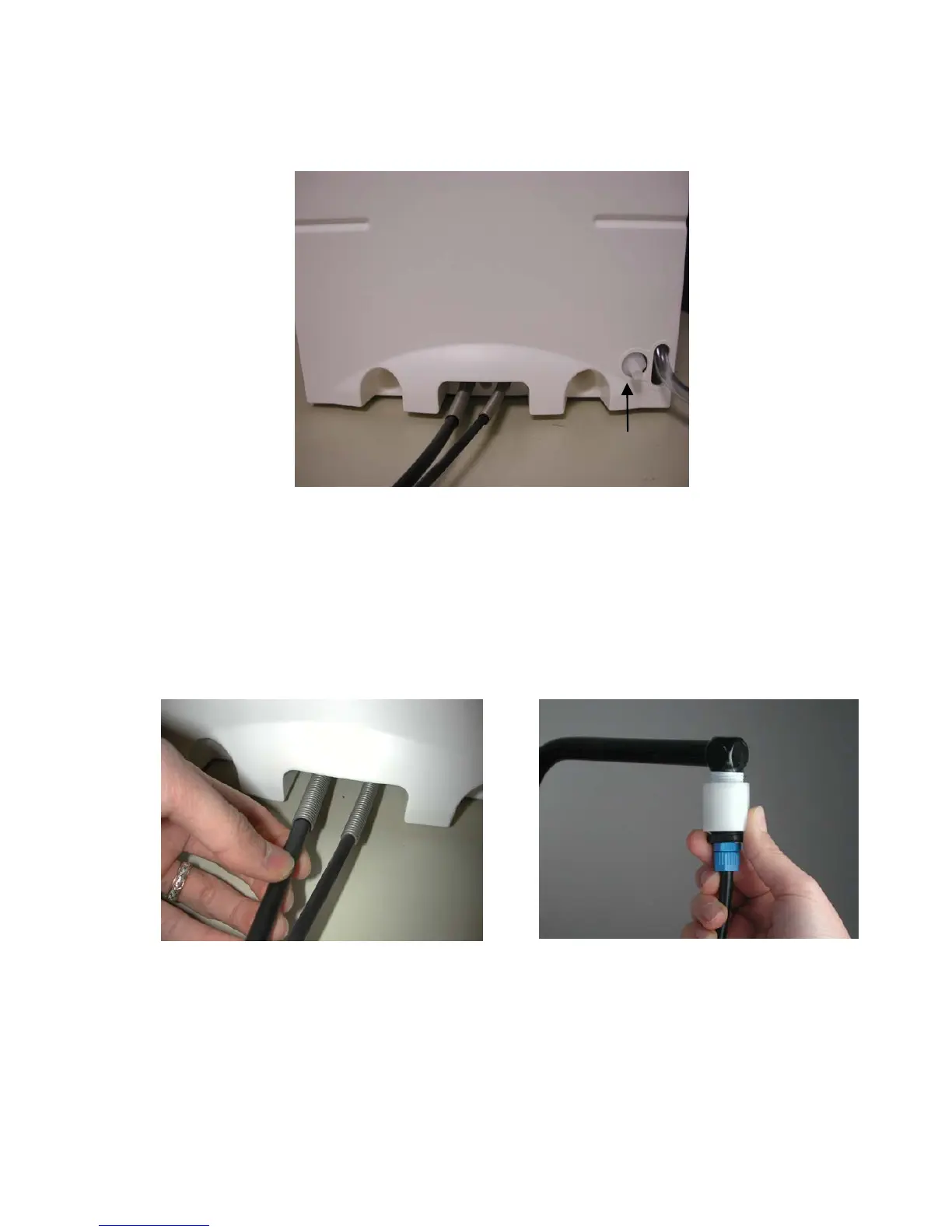

Rotate the Direct-Q so you can see the back of the system (see photo A).
A
1.
FEEDWATER
TUBING
3.
OVERFLOW
TUBING
2. REJECT
TUBING
4. TANK
OUTLET
F
EEDWATER TUBING
 Locate the Feedwater Tubing exiting from the bottom middle of the system (B). A 1/2 inch Female
GAZ fitting with a screen filter is attached at the end of this tubing. Unroll it until the fitting reaches
the Feedwater source.
 Apply white tape on the thread of the 1/2 inch Male GAZ valve or fitting of the Feedwater source.
 Connect the fitting to the valve (C).
B
C
FEEDWATER TUBING
1
2
3
4
