b. Lift the biopsy up (towards arrow’s direction). The locating pole, front clamp, the locating
hole and the front clamp become loose.

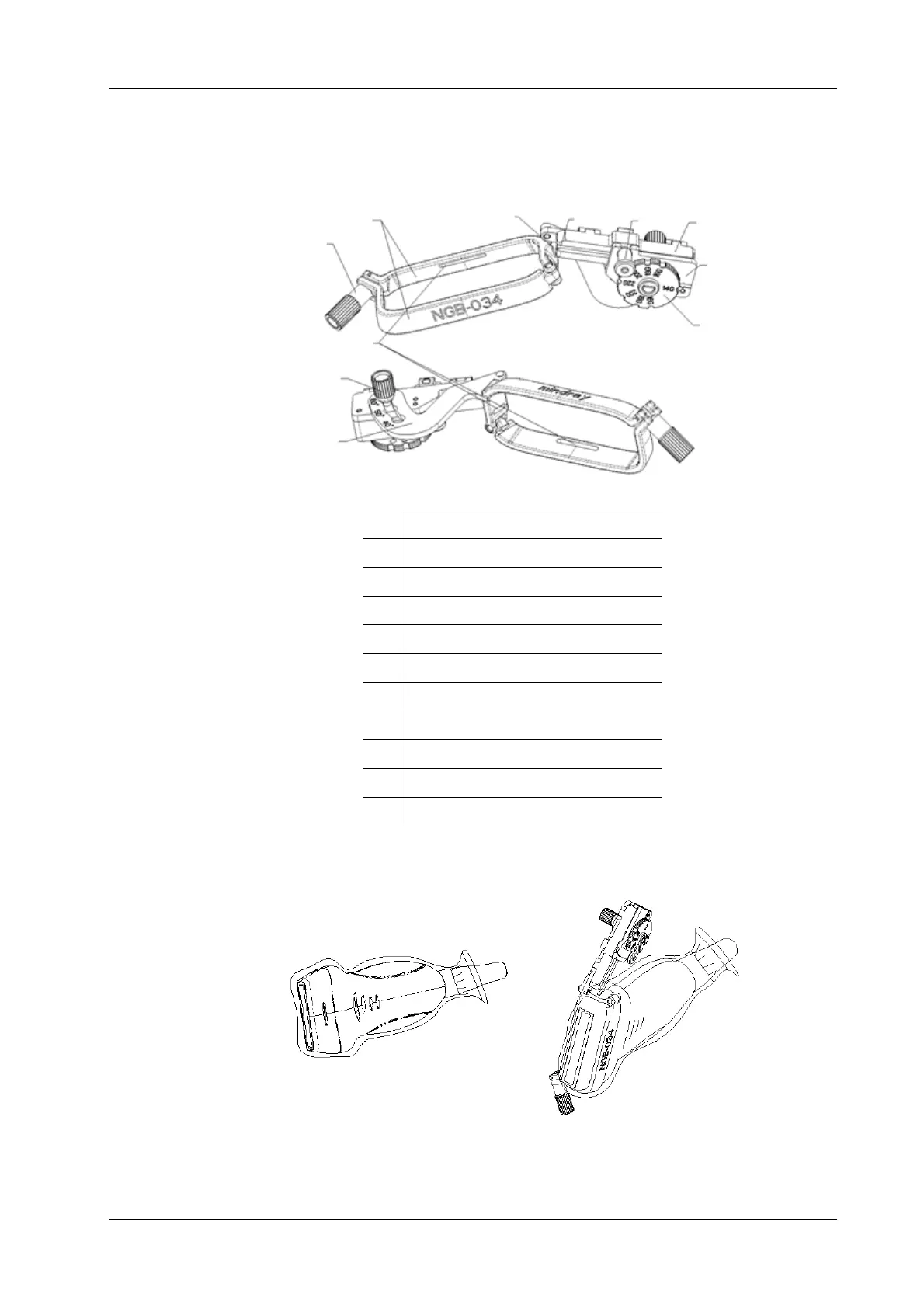

NGB-034 Metal-needle detachable needle-guided bracket
Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
1 Needle fixing nut
2 Guiding groove
3 Angle fixing nut
4 Angle adjusting base
5 Needle type dial scale
6 Needle adjusting base
7 V-shape cover
8 Lock pin
9 Needle guide hole
10 V-shaped guiding block
11 Clamp
To Next Page
