Mindray BA-88A Operation Manual

6-
7

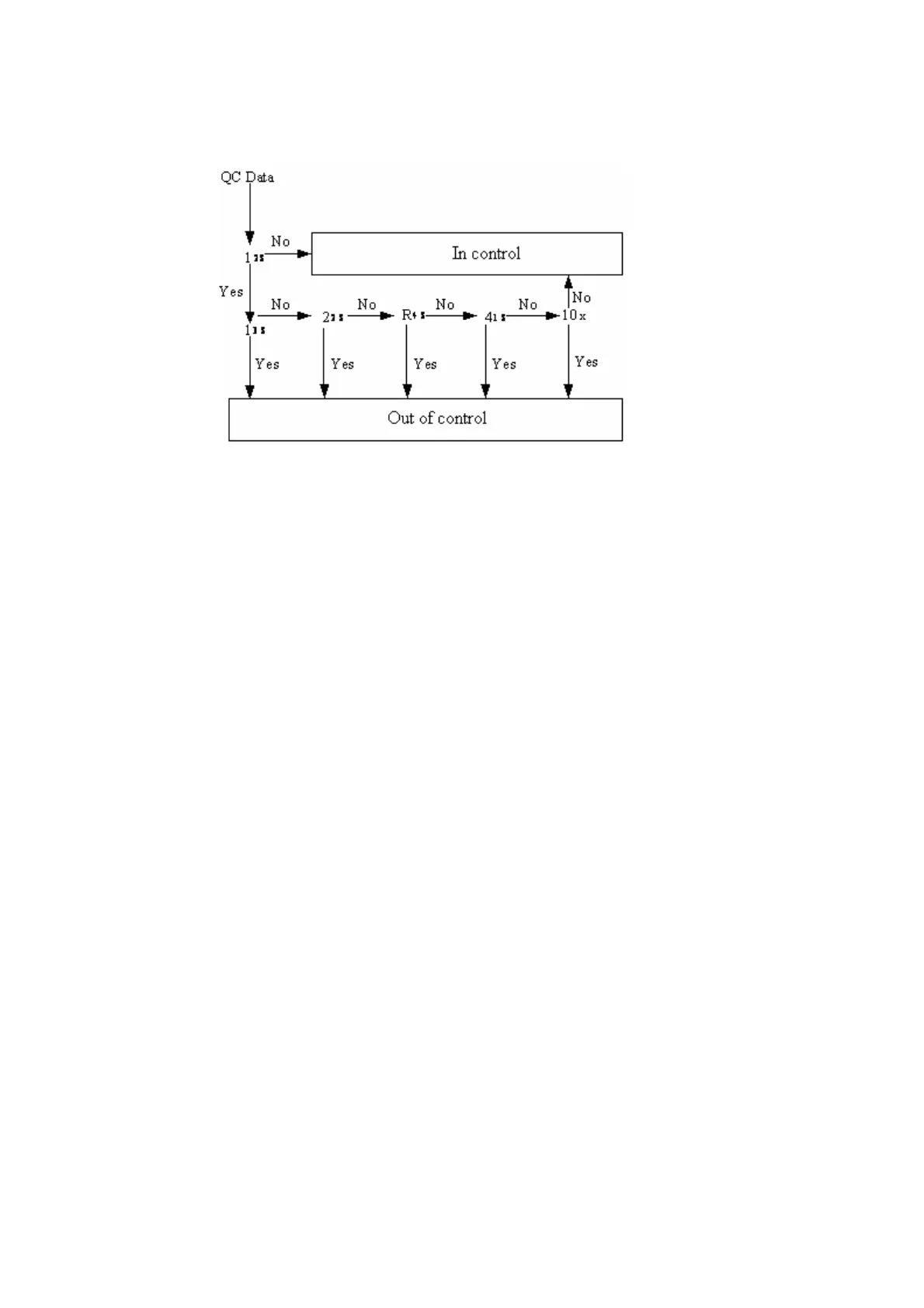

Figure 6-3 Westgard Multi-rule QC Conclusion Flow
For several controls, the conclusion logic is similar to the above condition, except for
multiple continuous QC data, which should be combined simultaneously.

Mindray BA-88A Specifications

General

Light source	Halogen lamp
Display	7 inch touch screen
Printer	Thermal printer
Interface	RS232
Wavelengths	340, 405, 546, 578, 630nm
Carry-over	< 1%
Power Supply	AC 100~240V, 50/60Hz
Operating Temperature	15-30°C
