BeneVision N22/BeneVision N19 Patient Monitor Service Manual 2-3
2.2.1 Functions of the Main Control Module
The main board is supported by the Bay Trail platform and uses Intel’s Bay Trail-I E38xx series processors.

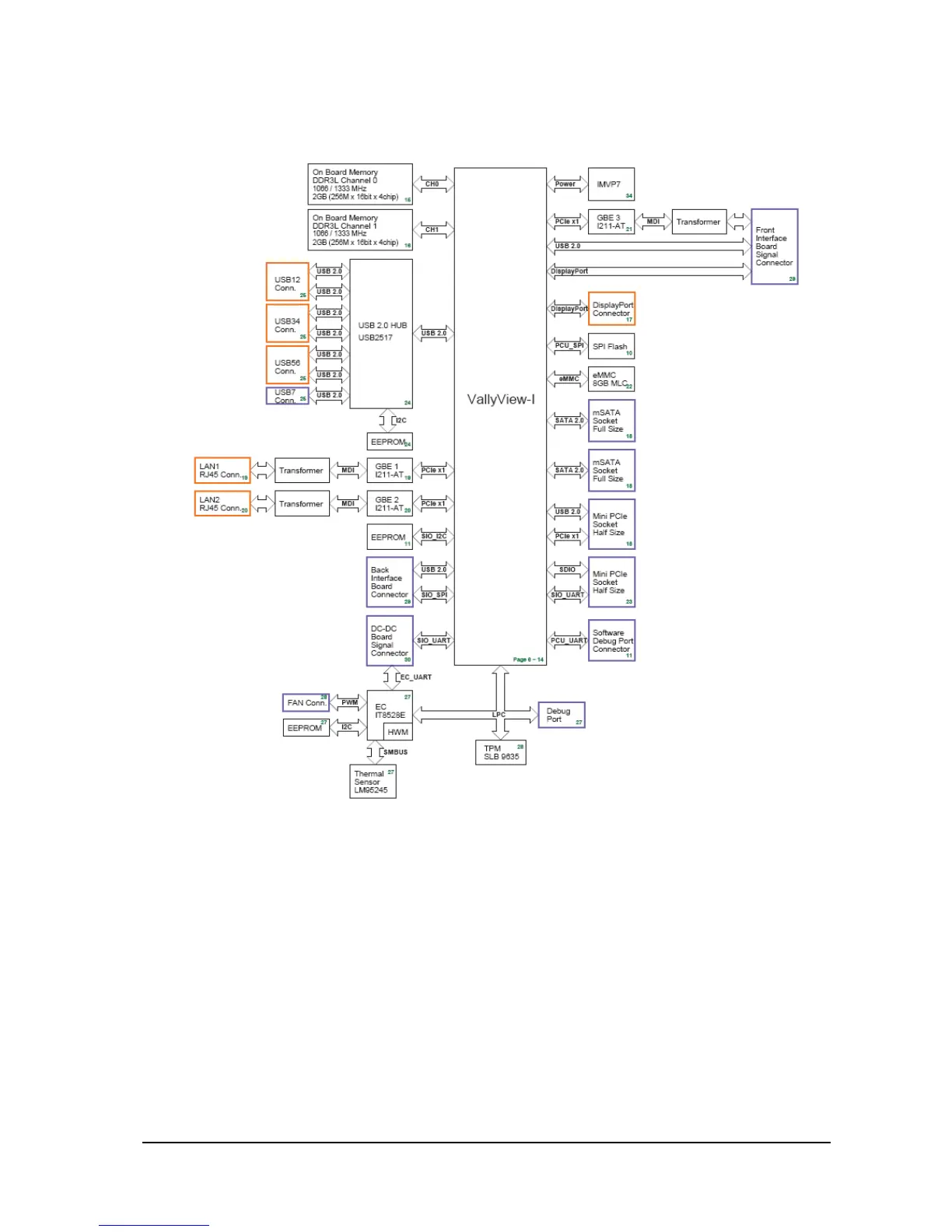

Architecture of the Main Board
As the core control unit of the system, the main board is responsible for such core functions of the system as display,
data processing and data storage.
The main board also provides high-speed interfaces, such as USB connector, DP interface and network connector.
