6-6 BeneVision N22/BeneVision N19 Patient Monitor Service Manual

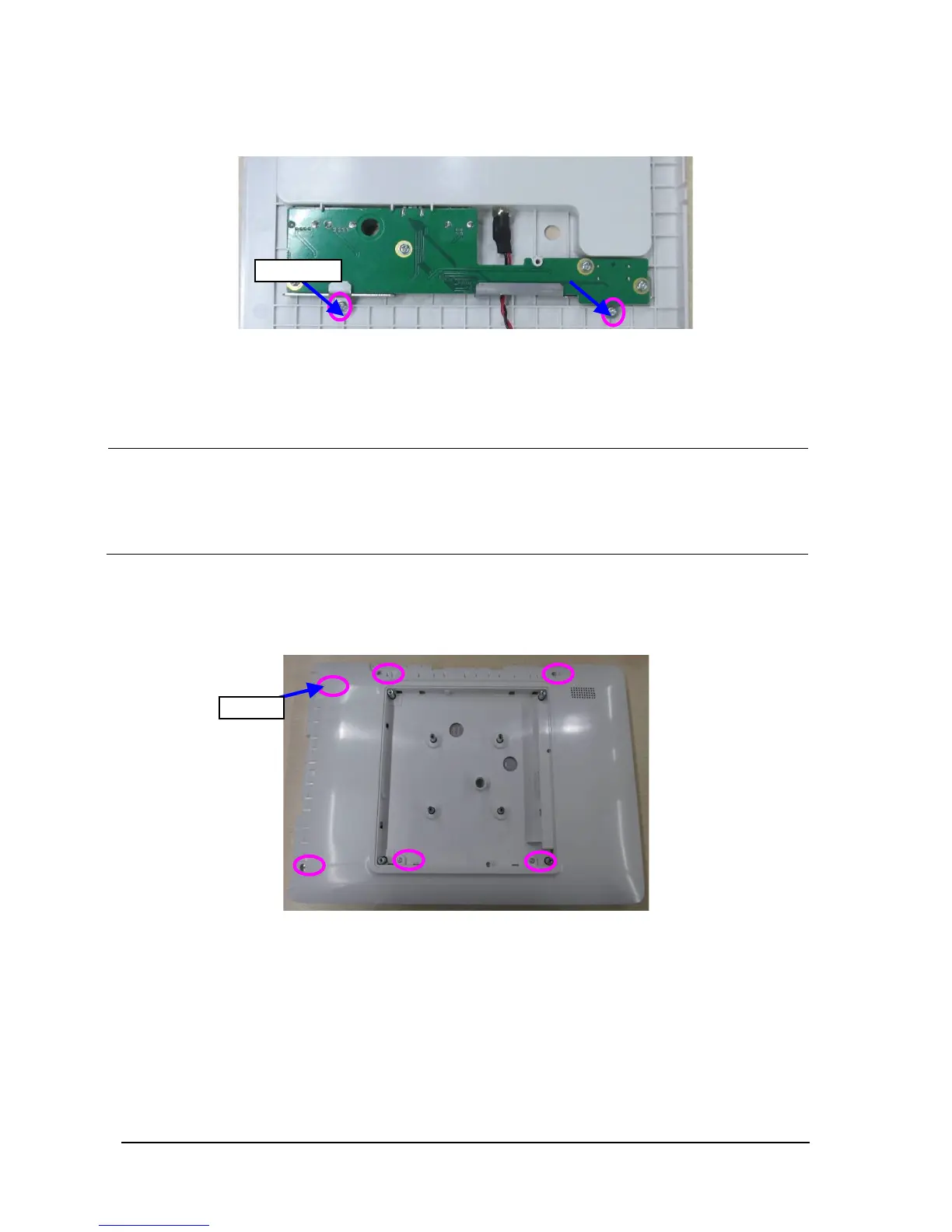

As shown in the following picture, loosen and remove the two M3X6 cross recessed pan head screws with pad, then
remove the display interface adapter board.
6.4 Disassembling Display (Capacitive Touchscreen)
Before disassembly, make sure that the point for placement is smooth and free of unrelated things, and
pave foam or similar material under the display, lest the touchscreen would be scratched.
When optional functions are indicated, the related operations may be involved if this function is selected for
the machine; otherwise, the related operations are not involved.
6.4.1 Removing Display Rear Housing Assembly (D19)
As shown in the following picture, loosen and remove the six M3X6 cross recessed pan head screws with pad.
