6.3.1 Disassembling Display and Main Unit (Main Unit and Display Integrated
Installation)

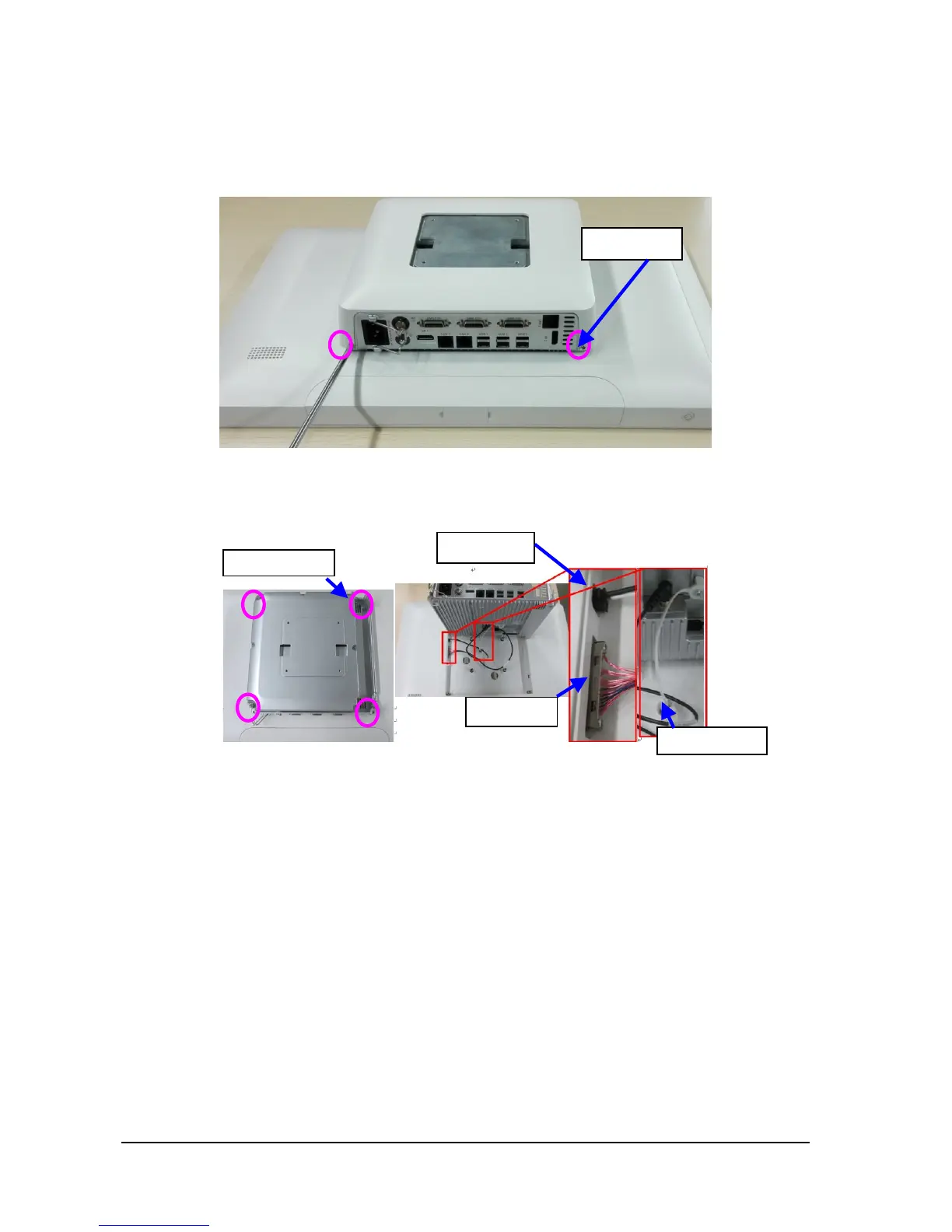

As shown in the following picture, place the monitor face down on the work surface, loosen two M3 captive screws, and
then lift the main unit housing to remove it.
As shown in the following picture, loosen to remove four M4X55 screws, lift the main unit slowly, disconnect the DP
cable, power cable and cord clamp, and separate the main unit from the display.
Captive screw
DP Cable
Power Cable
M4
×55 screw
Cord clamp
