BeneVision N22/BeneVision N19 Patient Monitor Service Manual 6-13
6.5.5 Removing DCDC Power Management Board

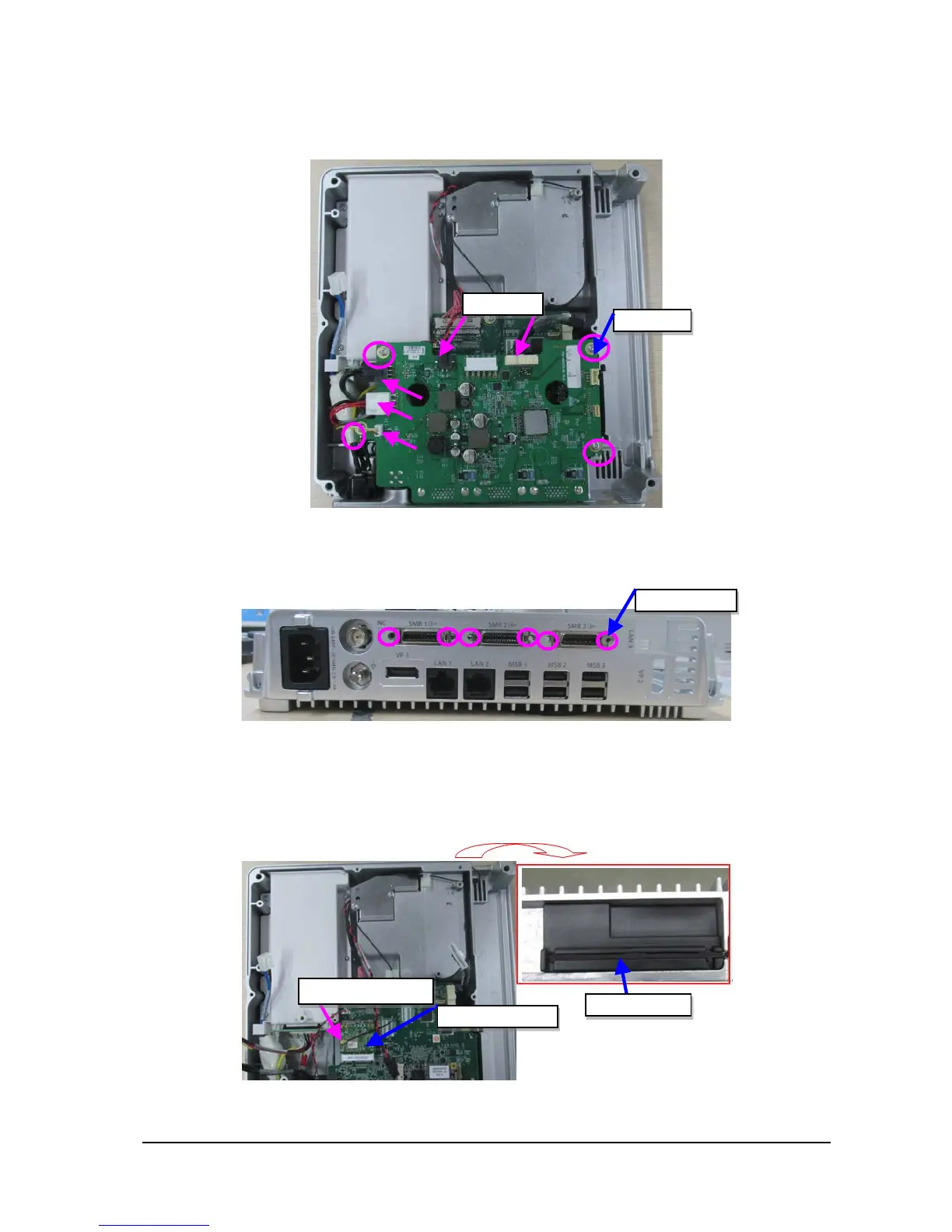

As shown in the following picture, loosen and remove the four M3X6 cross recessed pan head screws with pad, and
disconnect the power cable.
As shown in the following picture, loosen and remove the six small M2.5 pan head screws, then remove the DCDC power
management board.
6.5.6 Removing Antenna Module and Antenna Cable
As shown in the following picture, disconnect the antenna cable from the Wi-Fi module, then remove the antenna
module and antenna cable.
Cable
M3 screw
Antenna cable
Antenna module
Disconnect the cable
M2.5 screw
