BeneVision N22/BeneVision N19 Patient Monitor Service Manual 6-11
6.5.2 Removing iView Assembly Support Board/USB Interface Board (iView Assembly
Optional)

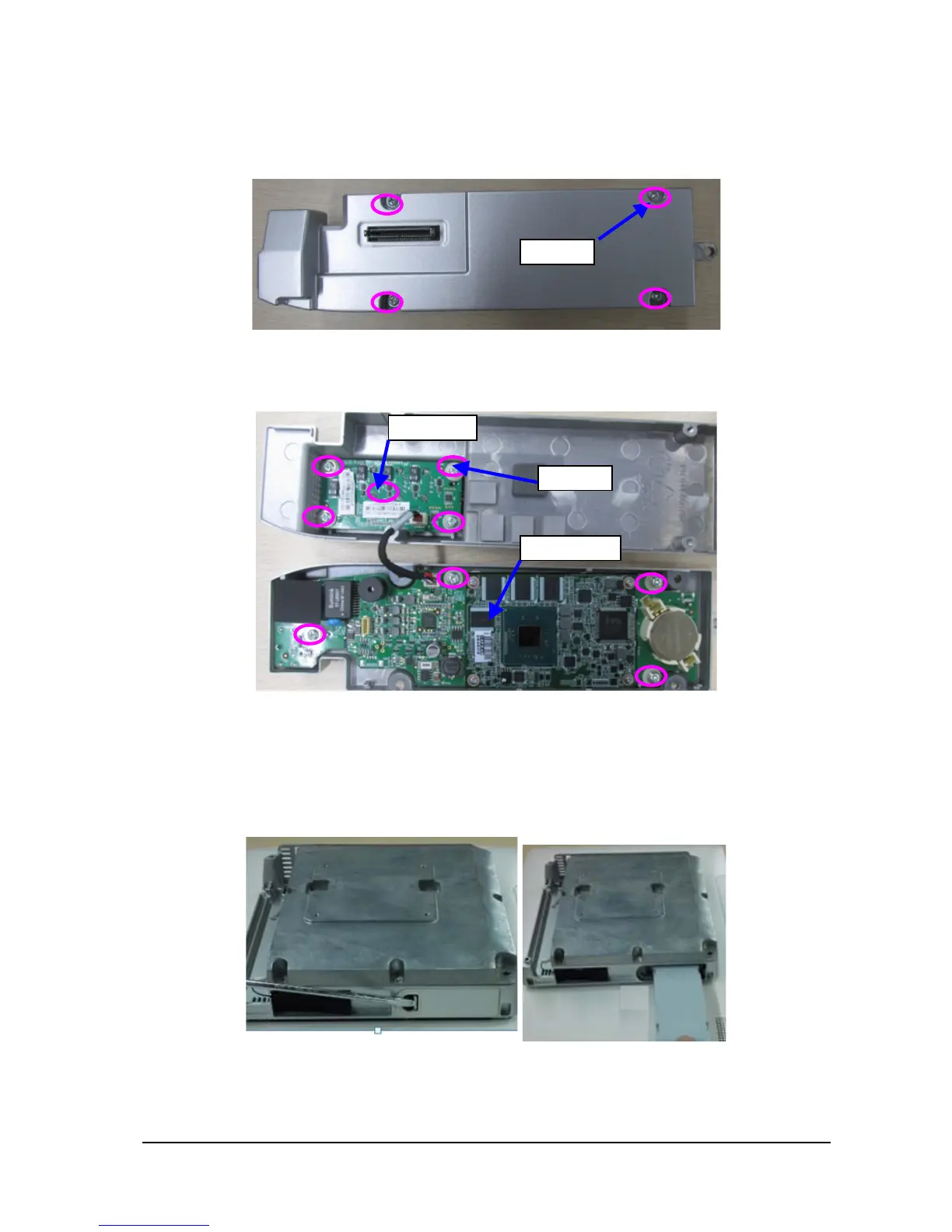

As shown in the following picture, loosen and remove the four M3X6 cross recessed pan head screws with pad, then
remove the iView assembly.
As shown in the following picture, loosen and remove the four M3X6 cross recessed pan head screws with pad, then
remove the USB board; remove the four M3X6 cross recessed pan head screws with pad, then remove the support board.
6.5.3 Removing Battery
As shown in the following picture, use a flat-bladed screwdriver to remove the battery cover, and then remove the
battery.
