BeneVision N22/BeneVision N19 Patient Monitor Service Manual 6-7
6.4.2 Removing Display Rear Housing Assembly (D22)

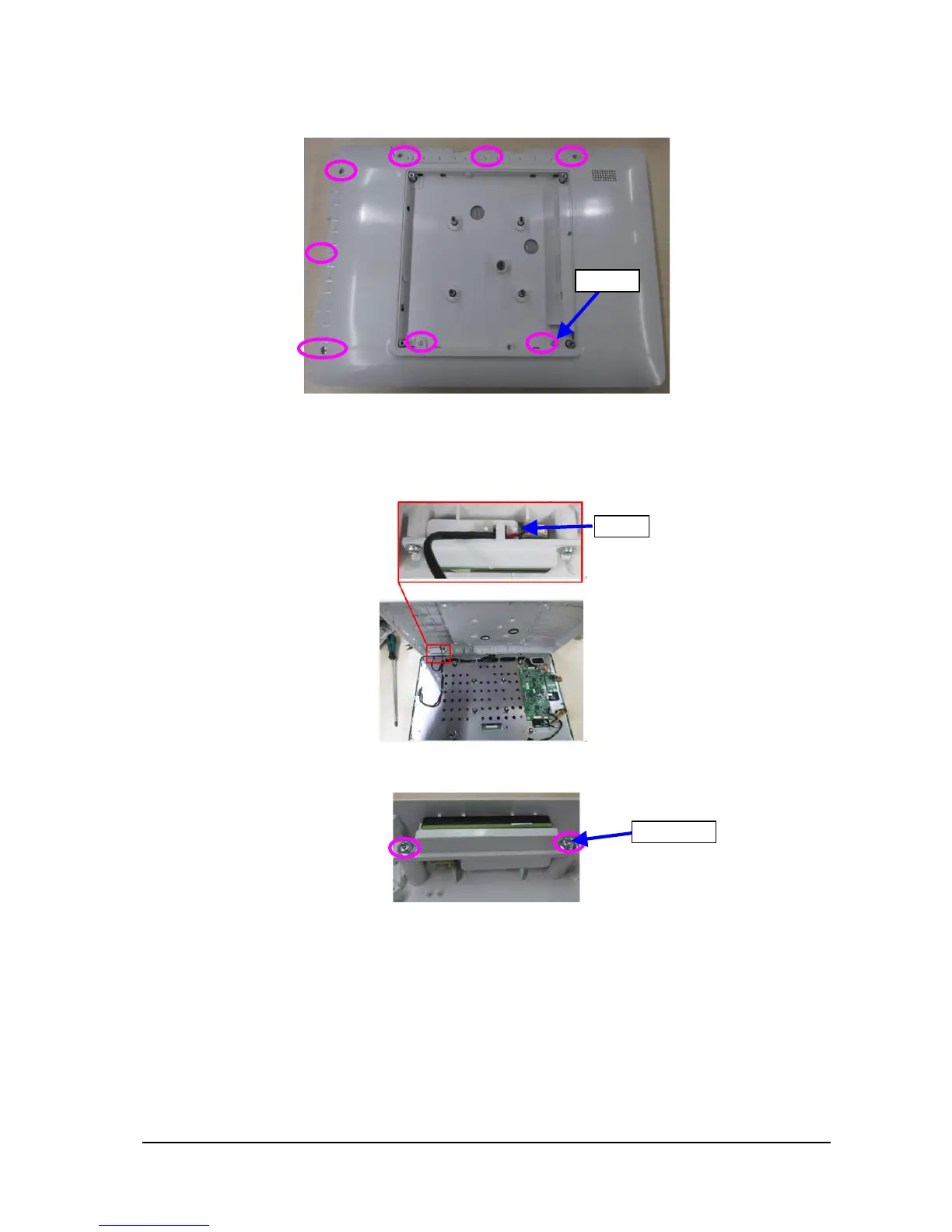

As shown in the following picture, loosen and remove the eight M3X6 cross recessed pan head screws with pad.
6.4.3 Removing Switch Keypad Board
As shown in the following picture, disconnect the switch keypad board cable.
As shown in the following picture, loosen and remove the two M3X6 cross recessed pan head screws with pad, then
remove the switch keypad board assembly.
