21.1 Review Overview
Trends are patient data collected over time and displayed in graphic, tabular, or other forms to give you a picture
of how your patient's condition is developing.
21.2 Review Page
The Review page contains tabs to display trend data in tabular, graphic, or other forms.
21.2.1 Accessing the Review Page
Choose one of the following methods to enter the review page:
■ Select the Review quick key.
■ Select the Main Menu quick key → from the Review column select the desired option.
21.2.2 Example Review Page

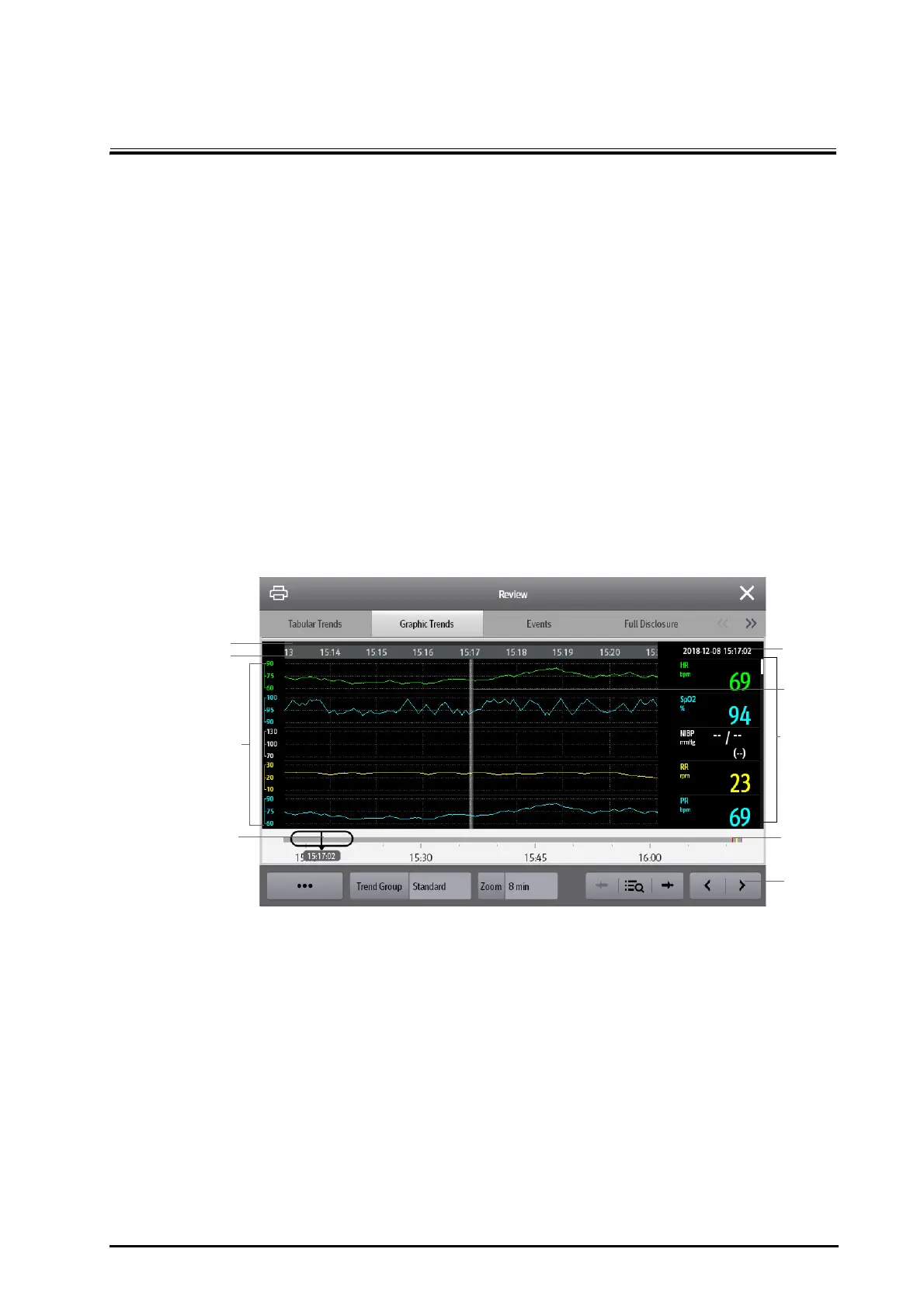

The review pages have similar structure. We take the graphic trends review page as an example.
(5)
(7)
(6)
(1)
(2)
(3)
(4)
(8)
(9)
(1) Event type indicator: different color blocks match different types of events:
■ Red: high priority alarm event
■ Yellow: medium priority alarm event
■ Cyan: low priority alarm event
■ Green: manual event
■ White: operation-related event
(2) Current window time line: indicates the time length of the current window. In case of system time change, the
question mark “?” is displayed beside the time.
(3) Waveform area: displays trend curves. The color of trend curves is consistent with the color of parameter labels.
(4) Slider: indicates the position of current window time in the entire time length. Dragging this button left or right
enables you to locate the trend data at a specific time and also refreshes trend data in current window
accordingly.
