4.6.2
The Display of the Targeted Goal Screen
The

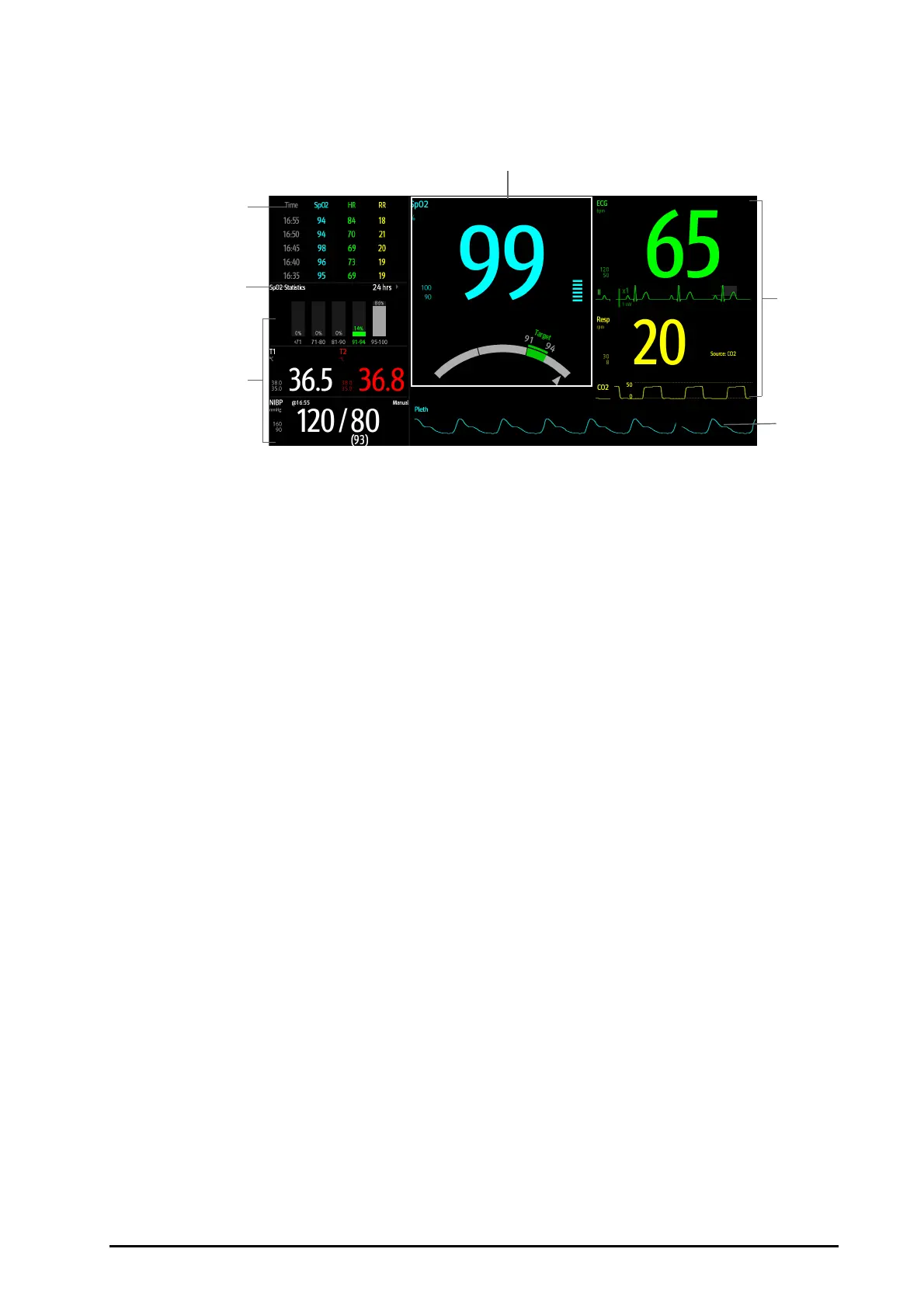

following figure shows the Targeted Goal screen. Your display may be configured to look slightly
different.
4.6.3 Configuring the Targeted Goal Screen Layout
To configure the parameter numerics, waveforms, and their sequence displayed on the Targeted Goal screen,
follow this procedure:
1. Access the Targeted Goal screen in either of the following ways:
◆ Select the Screen Setup quick key → select the Choose Screen tab → select Targeted Goal.
◆ Select the Main Menu quick key → from the Display column select Choose Screen → select
Targeted Goal.
2. Select a parameter numeric area or waveform area, and then from the popup list select an element to
display in this area. The parameters and waveforms not selected will not be displayed.
4.6.4 Operating the Targeted Goal Screen
You can access parameter setup and trends review from the Targeted Goal screen. To do so, follow this
procedure:
■ Select the parameter trend area to enter the Tabular Trends review page.
■ Select the target parameter statistics area to enter the parameter statistics setup menu. Set the range of
each SpO
2
section and the target section.
■ Select the desired waveform area, parameter numeric area, or dashboard to enter corresponding
parameter setup menu.
(5)
(6)
(1)
(2)
(3)
(4)
(1)
Parameter trends area: displays trends of the target parameter and secondary parameters. If the target
parameter is Art, this area only lists the trend of arterial pressure.
(2) Target parameter statistics area: displays the statistics of the target parameter by sections.
(3)
Other parameter area: displays parameter measurements and alarm limits of parameters other than the target
parameter and secondary parameters.
(4)
Target parameter area: displays the measurement of the target parameter in big numerics, as well as its target
range, and alarm limits.
• If the target parameter is Resp or PR, parameter source is also displayed.
• The dashboard shows the target range in green.
•The
△ pointer below the dashboard indicates the current measurement value.
(5)
Secondary parameters area: displays parameter measurement of secondary parameters in big numerics, as well
as waveforms and alarm limits. If secondary parameters are Resp and PR, parameter sources are also displayed.
(6)
Target parameter waveform area: displays the waveform of the target parameter.
• If the target parameter is Resp or PR, the waveform of the source parameter is displayed.
• If the target parameter is ECG, the first ECG waveform is displayed by default.
