Parameter Menus Operations
2 - 18 0070-10-0666-01 Trio™ Operating Instructions

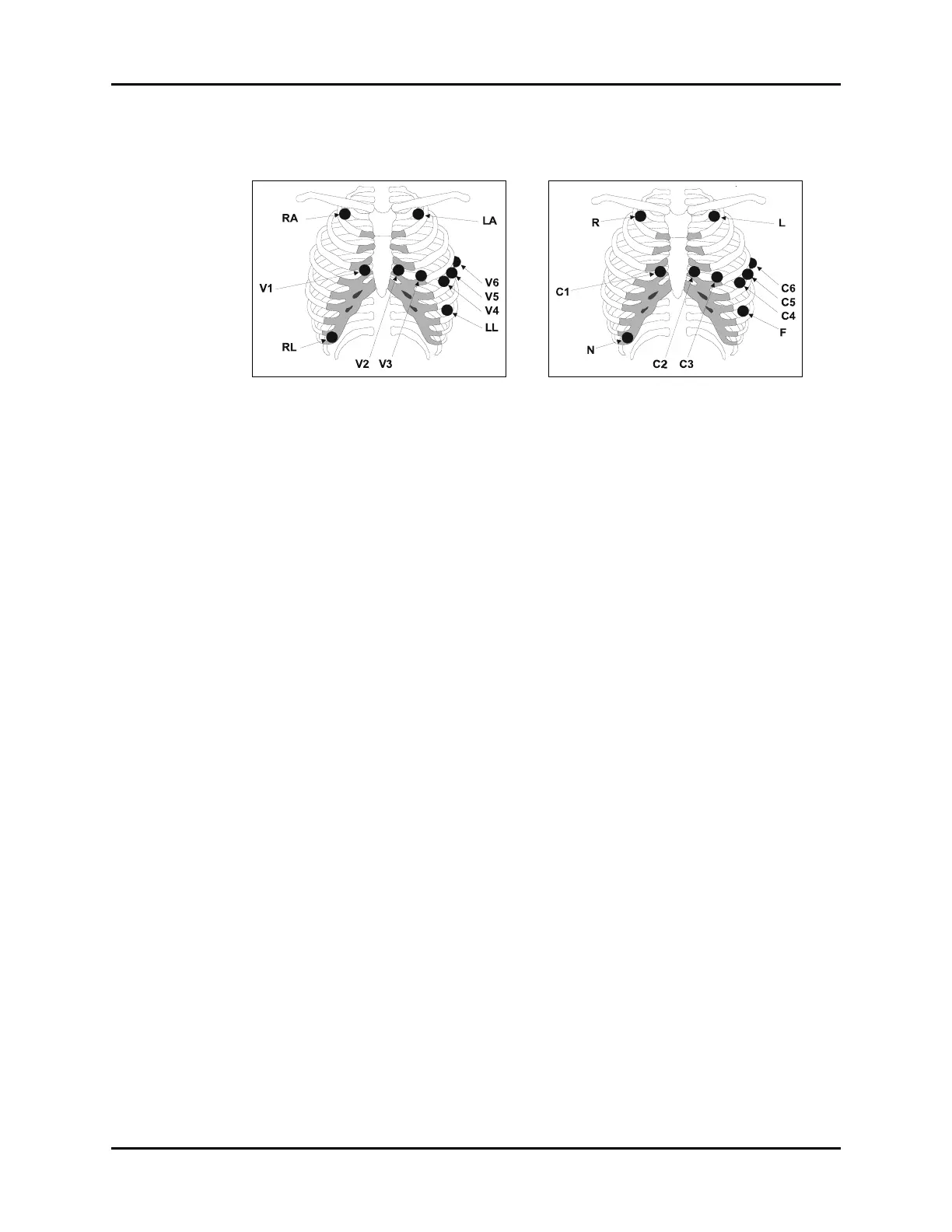

V-Lead and C-Lead Electrode Positions
FIGURE 2-18 V-Lead Electrode Placement
(AHA)
FIGURE 2-19 C-Lead Electrode Placement
(IEC)
• V1 - Place the electrode at the
fourth intercostal space, on the right
sternal border
• C1 - Place the electrode at the
fourth intercostal space, on the right
sternal border
• V2 - Place the electrode at the
fourth intercostal space, on the left
sternal border
• C2 - Place the electrode at the
fourth intercostal space, on the left
sternal border
• V3 - Place the electrode midway
between V2 and V4 on a line joining
these 2 locations
• C3 - Place the electrode midway
between C2 and C4 on a line joining
these 2 locations
• V4 - Place the electrode at the
fifth intercostal space on the mid-
clavicular line
• C4 - Place the electrode at the
fifth intercostal space on the mid-
clavicular line
• V5 - Place the electrode at the fifth
intercostal space on the anterior
axillary line
• C5 - Place the electrode at the fifth
intercostal space on the anterior
axillary line
• V6 - Place the electrode at the fifth
intercostal space on the mid-axillary line
• C6 - Place the electrode at the fifth
intercostal space on the mid-axillary line
