Trio™ Operating Instructions 0070-10-0666-01 2 - 19

Operations Parameter Menus

Lead II Monitoring

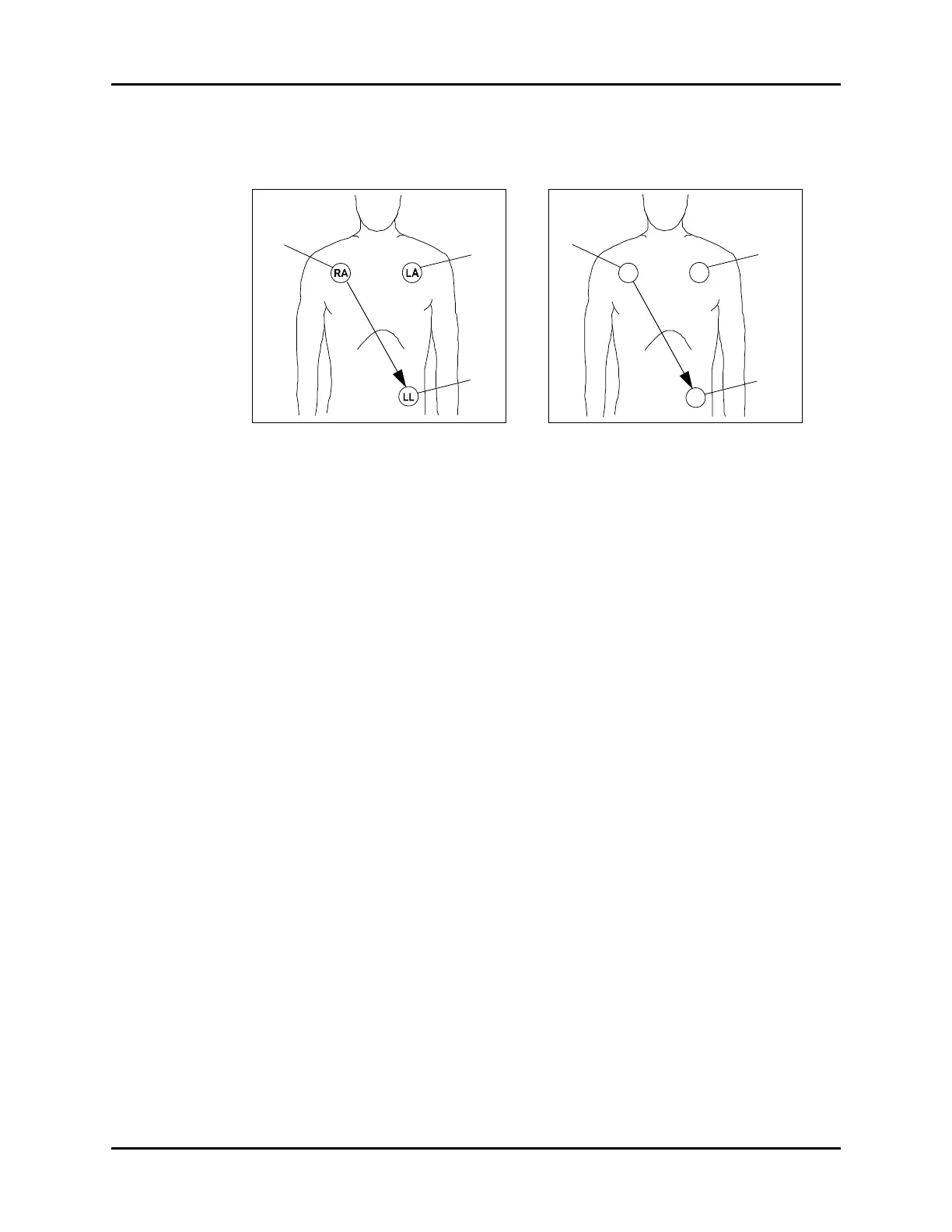

FIGURE 2-20 Lead II Monitoring (AHA) FIGURE 2-21 Lead II Monitoring (IEC)

• Place the RA (white) electrode under the

patient’s right clavicle, at the mid-

clavicular line within the rib cage frame.

• Place the LA (black) electrode under the

patient’s left clavicle, at the mid-

clavicular line within the rib cage frame.

• Place the LL (red) electrode on the

patient’s lower left abdomen within the

rib cage frame.

Select ECG Lead II on the monitor. Lead II is

the direct electrical line between the RA

(white) electrode and the LL (red) electrode.

• Place the R (red) electrode under the

patient’s right clavicle, at the mid-

clavicular line within the rib cage frame.

• Place the L (yellow) electrode under the

patient’s left clavicle, at the mid-

clavicular line within the rib cage frame.

• Place the F (green) electrode on the

patient’s lower left abdomen within the

rib cage frame.

Select ECG Lead II on the monitor. Lead II is

the direct electrical line between the R (red)

electrode and the F (green) electrode.

White

Black

Red

Yellow

Green
