Parameter Menus Operations
2 - 60 0070-10-0666-01 Trio™ Operating Instructions
SCALE ADJUST Opens the IBP SCALE ADJUST menu and is used to change the
scale at which the invasive pressure is displayed. Scale should be
adjusted to make the waveform as large as possible on the display
without clipping or cutting off any part.
To adjust the scale, use the Navigator™ Knob to scroll to the desired
area of the scale and select the desired limit. Three (3) scale choices
are available: HI, LO and MID. MID allows the user to establish a
reference line between the HI and LO set limits of the scale.

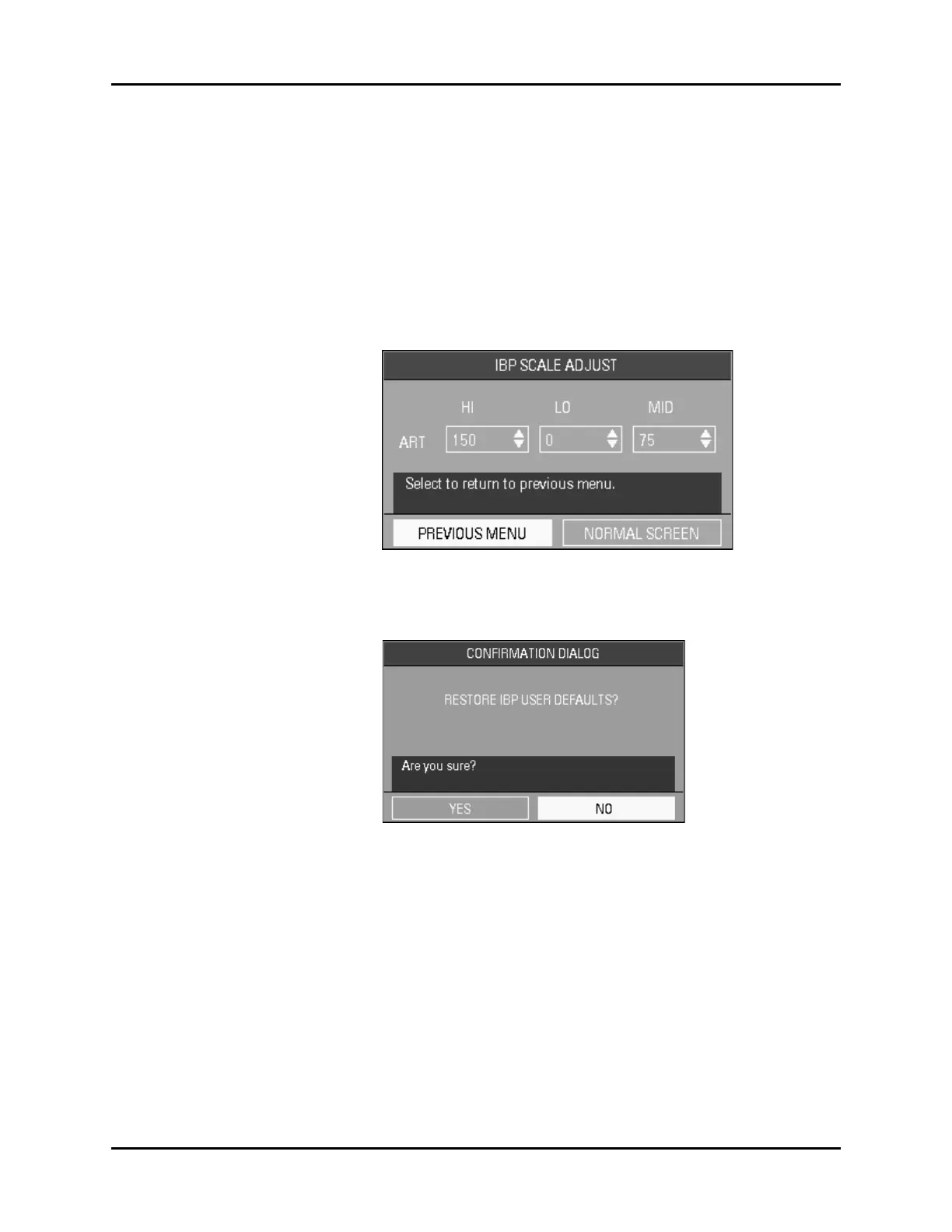

FIGURE 2-45 IBP Scale Adjust Menu
RESTORE
DEFAULTS
Allows the user to restore the IBP user default configuration.
FIGURE 2-46 Confirmation Dialog Box
