TURN OFF THE COMPUTER AND ALL THE SCSI DEVICES
BEFORE CHANGING SCSI IDS, CONNECTING SCSI
CABLES, OR DISCONNECTING SCSI CABLES.
CONNECTING TO THE COMPUTER
9
IF THE SCANNER IS THE ONLY OR LAST DEVICE IN THE CHAIN…
One D-sub-25 to Centronics 50 cable is included with your scanner. Please see your dealer if you require a
different cable.

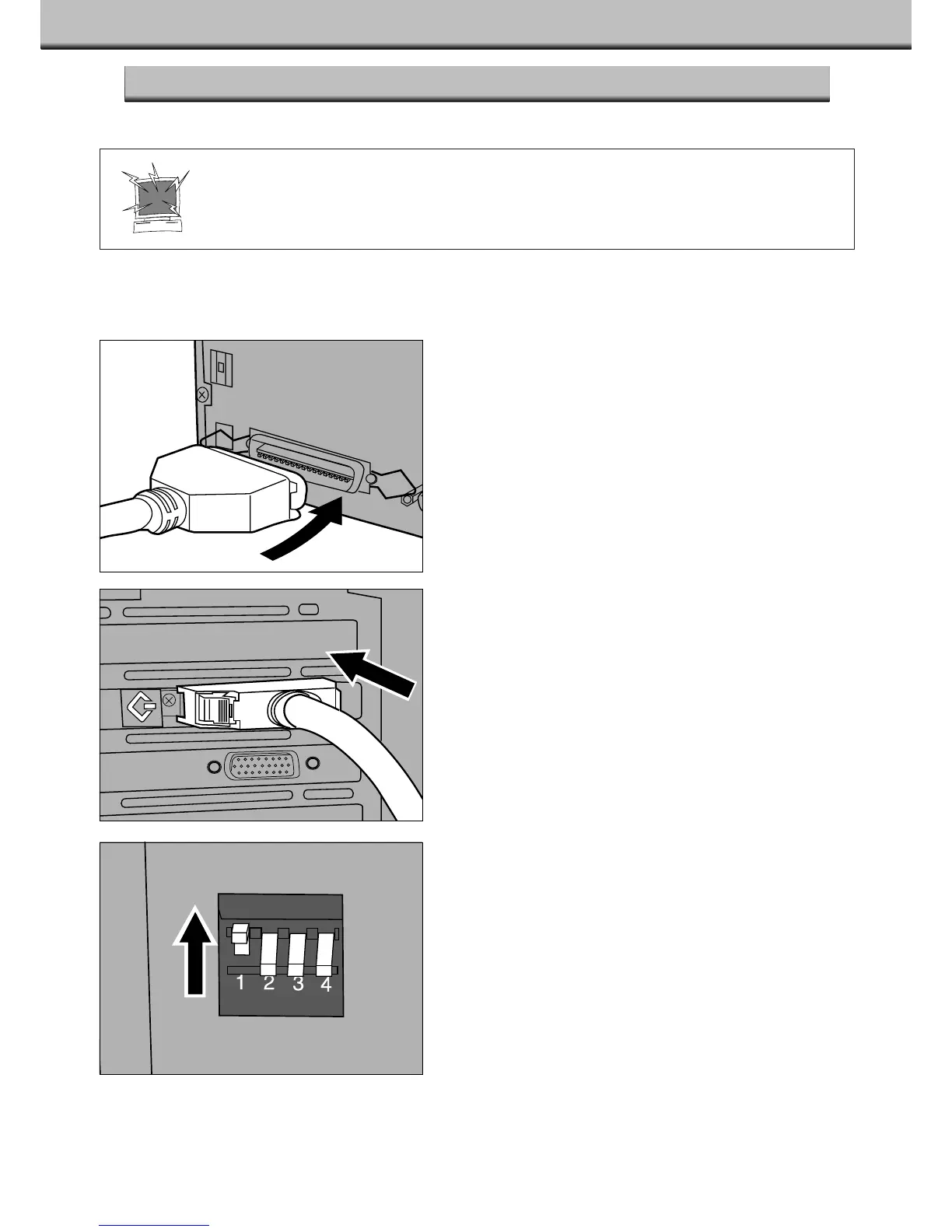

1.Connect one end of the SCSI cable to either
SCSI port on the back of the scanner.
• Either SCSI port can be used, there is no dedicated in or
out port.
2.Connect the other end of the SCSI cable to the
SCSI port on the computer or on the last SCSI
device in the chain.
3.Flip the dip switch marked 1 up to turn the
terminator on.
• Dip switches 2 through 4 are inactive. Their position will not
affect the scanner operation.
Continued on following page.
