Names of Parts and Displays
E9
Battery
Preparations
1
Remove the battery
chamber cover by sliding it
lightly in the direction of the
arrow.
1. Preparing
2. Inserting

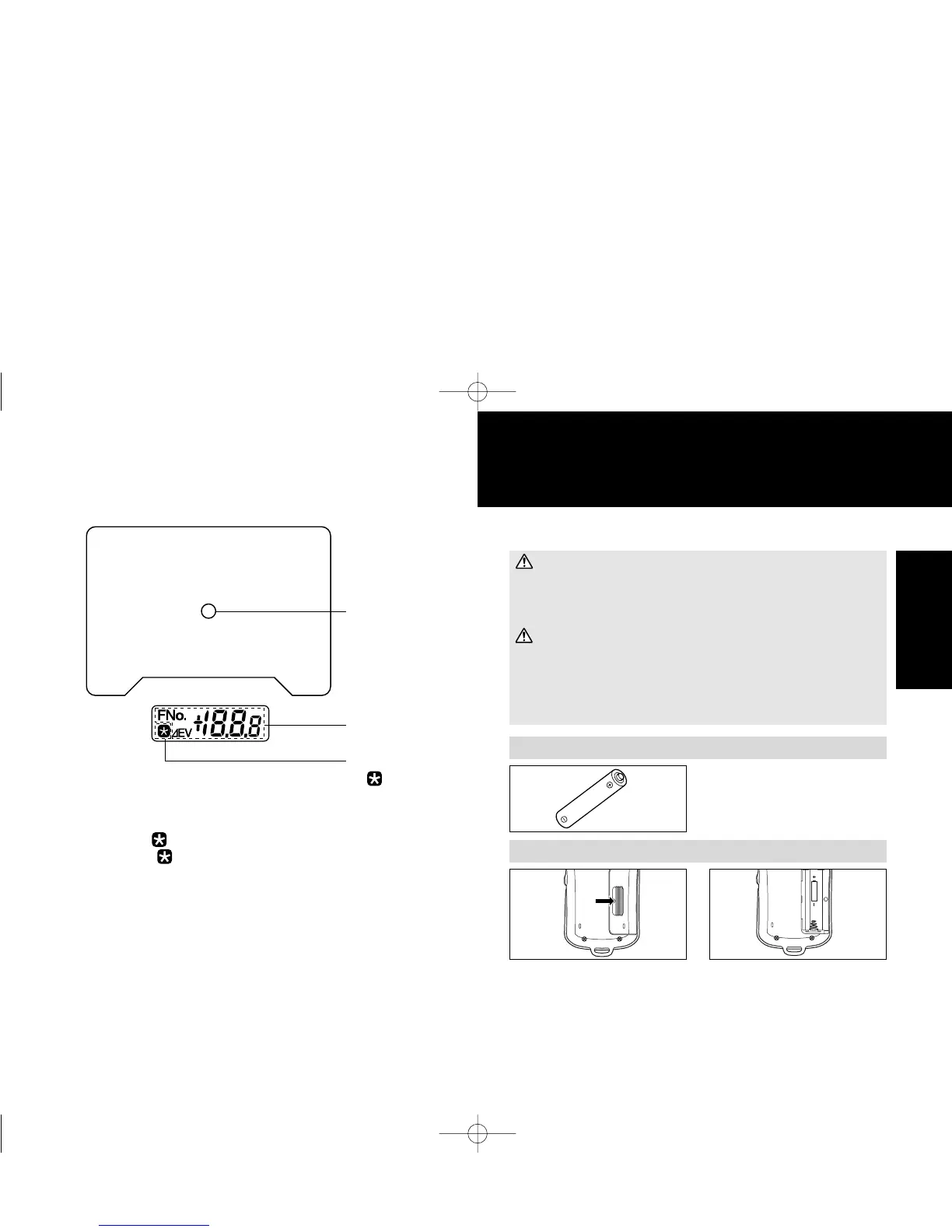

Viewfinder display
13. Viewfinder indicator
Same as the indicator on the external data panel.
14. Viewfinder FNo./EV display
Displays an f-number (FNo.) or exposure value (EV) during spot
measurement.
15. Measuring index circle
The circle’s internal area indicates the measuring area for spot
measurement.
For the purpose of explanation, the above figure shows
all available indicators on the display.
The instrument uses a single
alkaline dry cell (LR-6/1.5 V).
WARNING
Do not throw batteries into fire. Do not recharge (non-
rechargeable batteries), short circuit, heat or disassemble
batteries. Otherwise, there is a risk of causing fire or injury due to
an explosion or fluid leakage.
CAUTION
Do not use any batteries other than those designated for use with
the instrument. When fitting batteries, make sure to align them
according to the polarity shown on the instrument (plus "+" and
minus "-"). Otherwise there is a risk that the batteries may leak or
become damaged, leading to fire, injury or pollution of the
surrounding environment.
15.Measuring index
circle
14.Viewfinder
FNo./EV display
13.Viewfinder
indicator
2
Insert the battery with the
plus (+) and minus (-) ends
oriented according to the
diagram in the battery
chamber.
★ The meter will not work if the
battery is inserted in the
wrong direction.
