4. Batteries & Wiring
•Battery Compartment
•The battery compartment is located under the
recovery tank. The battery compartment can be
accessed for servicing and maintenance by tilting the
recovery tank. Make sure the recovery tank is has
been drained before tilting.
•The battery compartment contains two 12 volt
batteries connected in series.

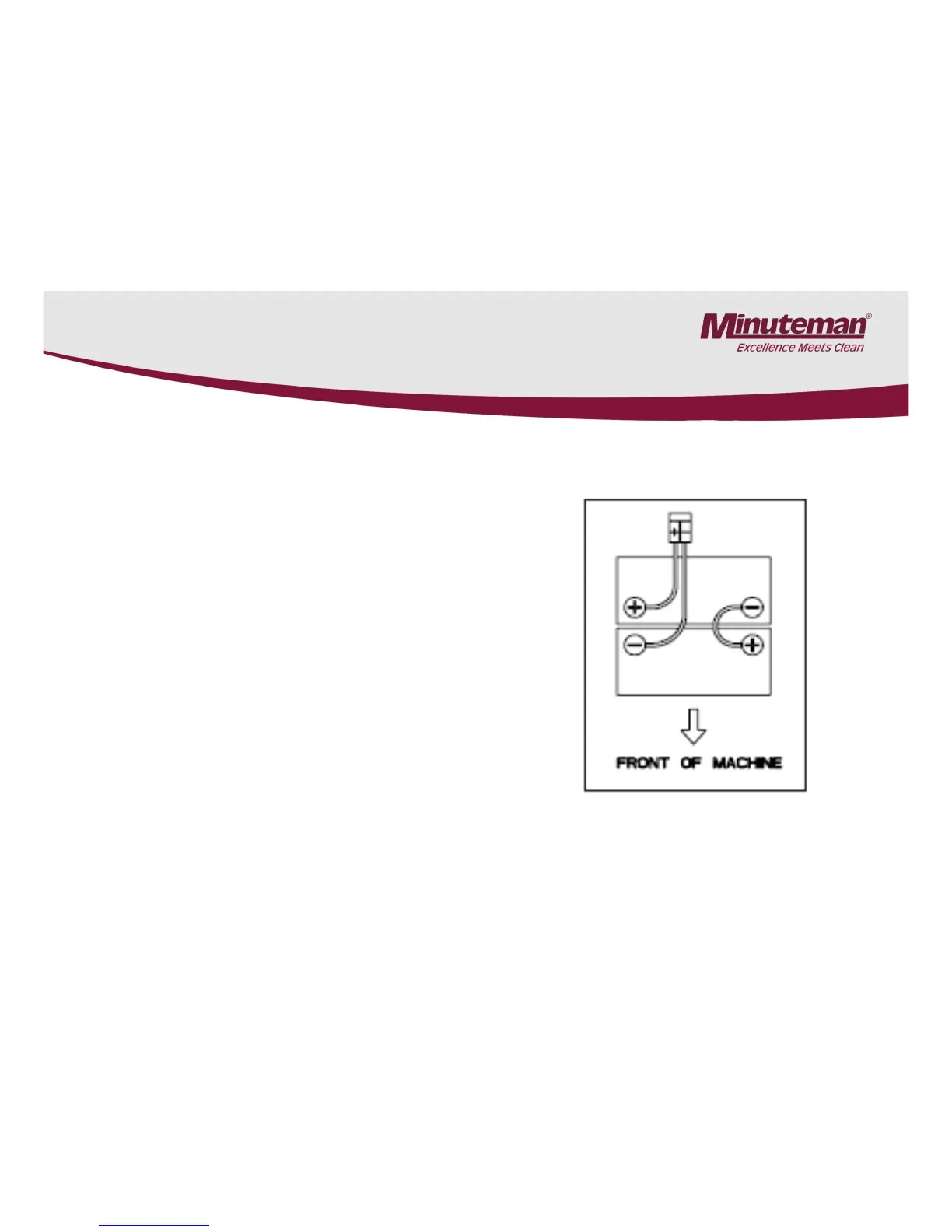

•Connect the batteries according the battery wiring
diagram to the right.
•The recommended batteries are two 12 volt, 115 Ah
deep cycle battery part number 956712 for the Wet
Lead Acid type or 12 volt 100Ah AGM Maintenance
Free is part number 956100. Do not use Automotive
or Marine type batteries.
•When changing the type of battery (going to Gel from
Wet Lead Acid or visa versa) the battery charger will
need to be programmed accordingly. See Section 8.1
on Programming the Charger.
Page 14
