11. Squeegee Caster Adjustment
(Curved)
11.2

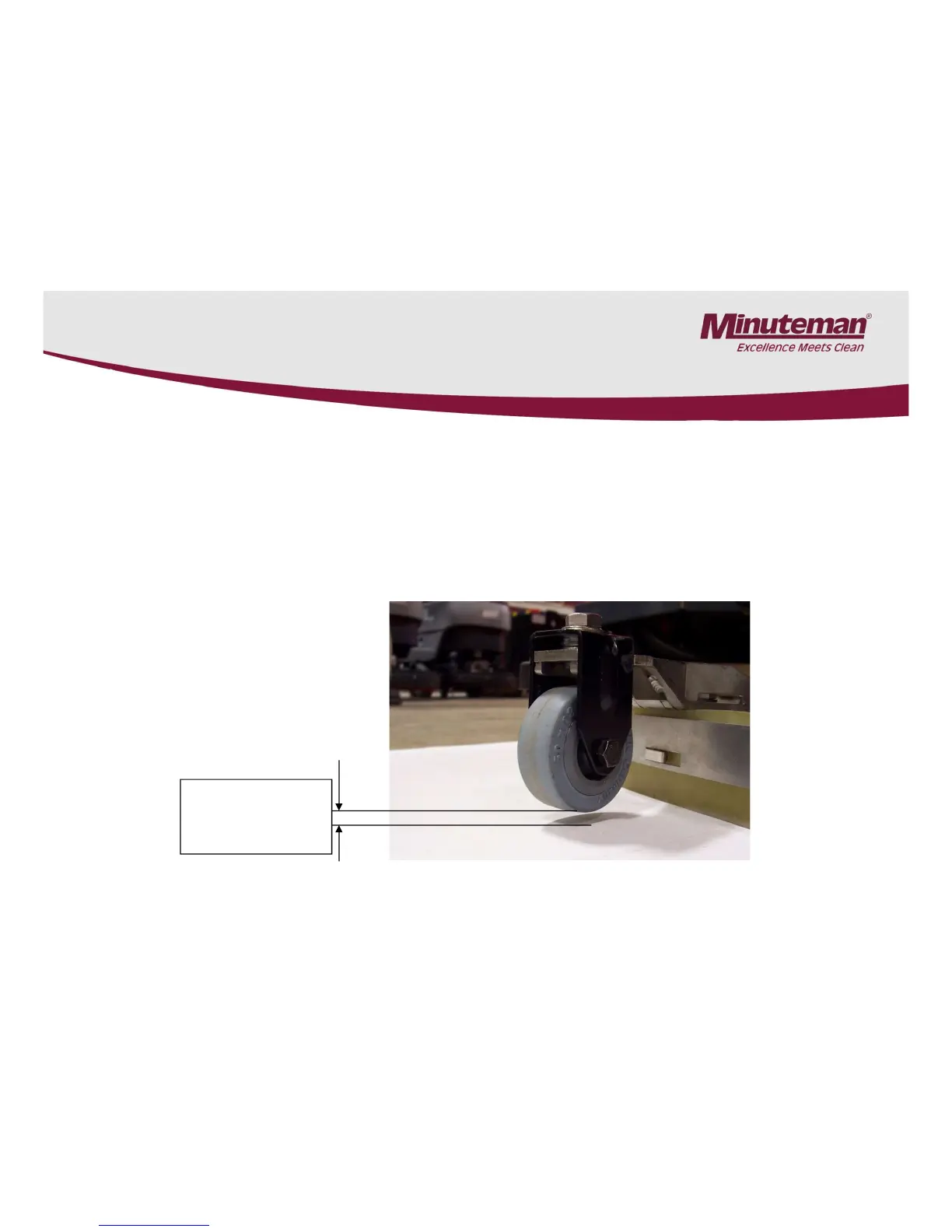

Clearance between support roller and floor with unfolded sealing strip (Factory
presetting): 3 mm ±0.5 (Fig. 5/2).
Place additional 1mm spacers (pos. 15, Fig. 5/3) between the angle and the fixed roller
housing (pos. 7, Fig. 5/3) to increase clearance or remove existing 1mm spacer from
between the angle and the fixed roller housing in order to reduce the clearance. Re-insert
the spacers removed from between the angle and the fixed roller housing again above
the fixed roller housing to allow complete tightening of the screws.
3mm
±
0.5
0.118 in
± .02
Page 41
