Minuteman E20S - Key Switch

16. Key Switch
Switch Off
Switch On
Switch Unload

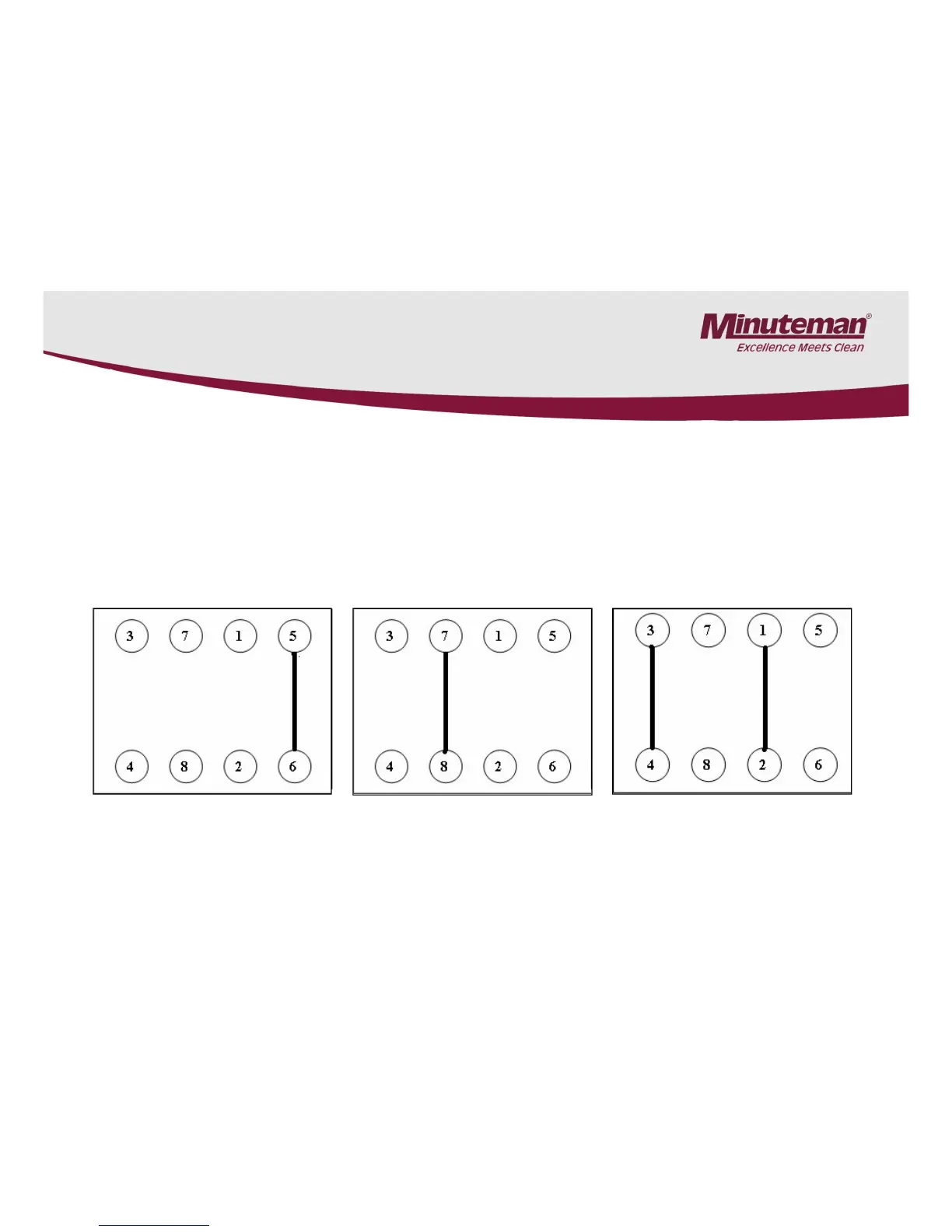

•The key switch has 8 terminals. Below shows the three different switch
functions. The black bars indicate the internal connection made by the
switch in each position.
