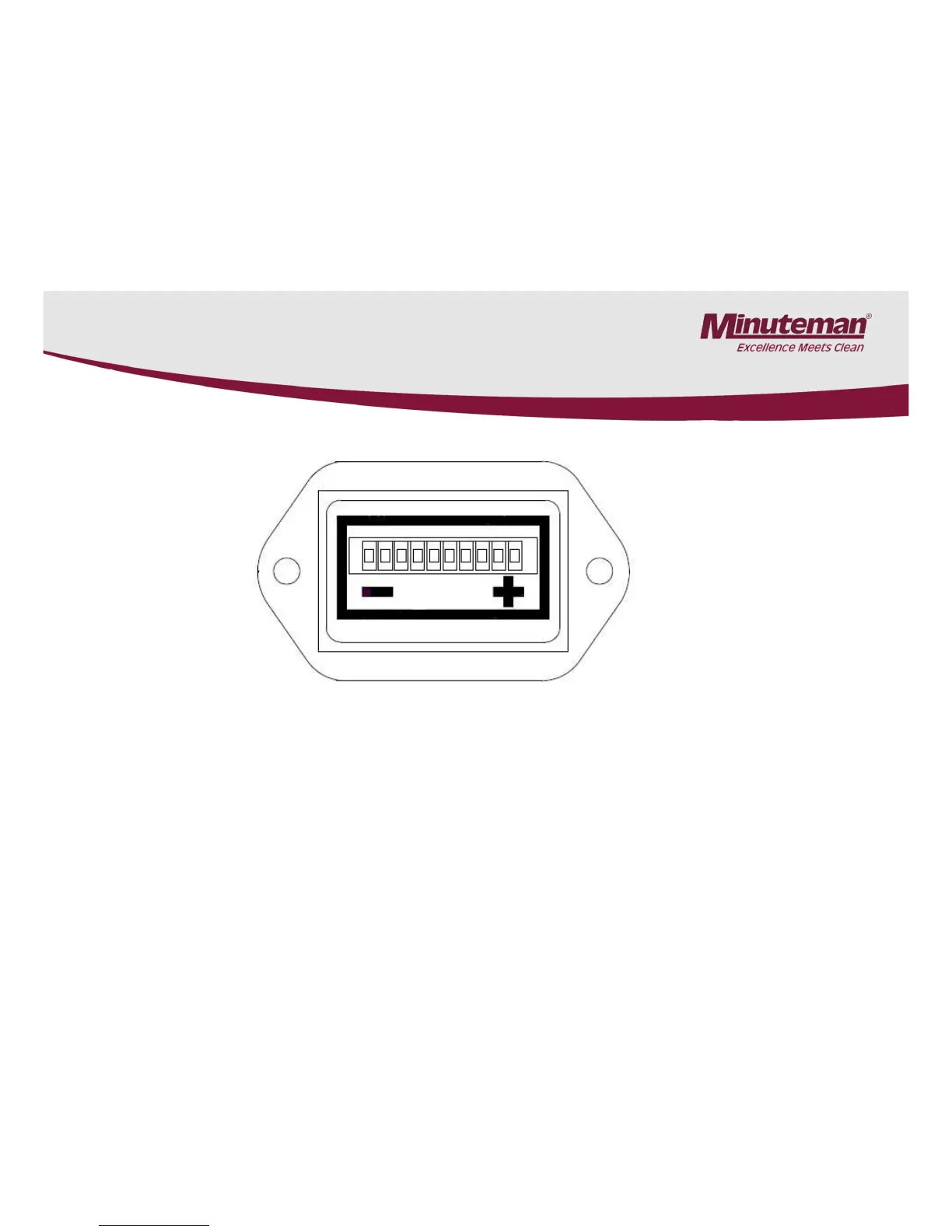

9. Battery and Error Code Indicator
Traction Drive Models only
•The indicator will display the charge status during machines operation. The
indicator uses ten LEDS. 1 to 10 LEDS may be illuminated at any given time.
10 being a fully charged battery pack. 1 LED would be a discharged battery
pack.
•The indicator will also will display errors by rapidly flashing 1 to 10 LEDS.
See the following references for the type of error that it has detected.
Page 32
