8.7 Prime Chargers
• Machines built after serial number 18060266 will be equipped the Prime Chargers
• Prime chargers are pre-programmed at the factory for specific battery types and are not
reprogrammable in the field.
• The maximum D.C. output is 12 amps.
• The current (amps) will decrease as voltage climbs.
• Machines built with the earlier style chargers can not be upgraded to the Prime charger

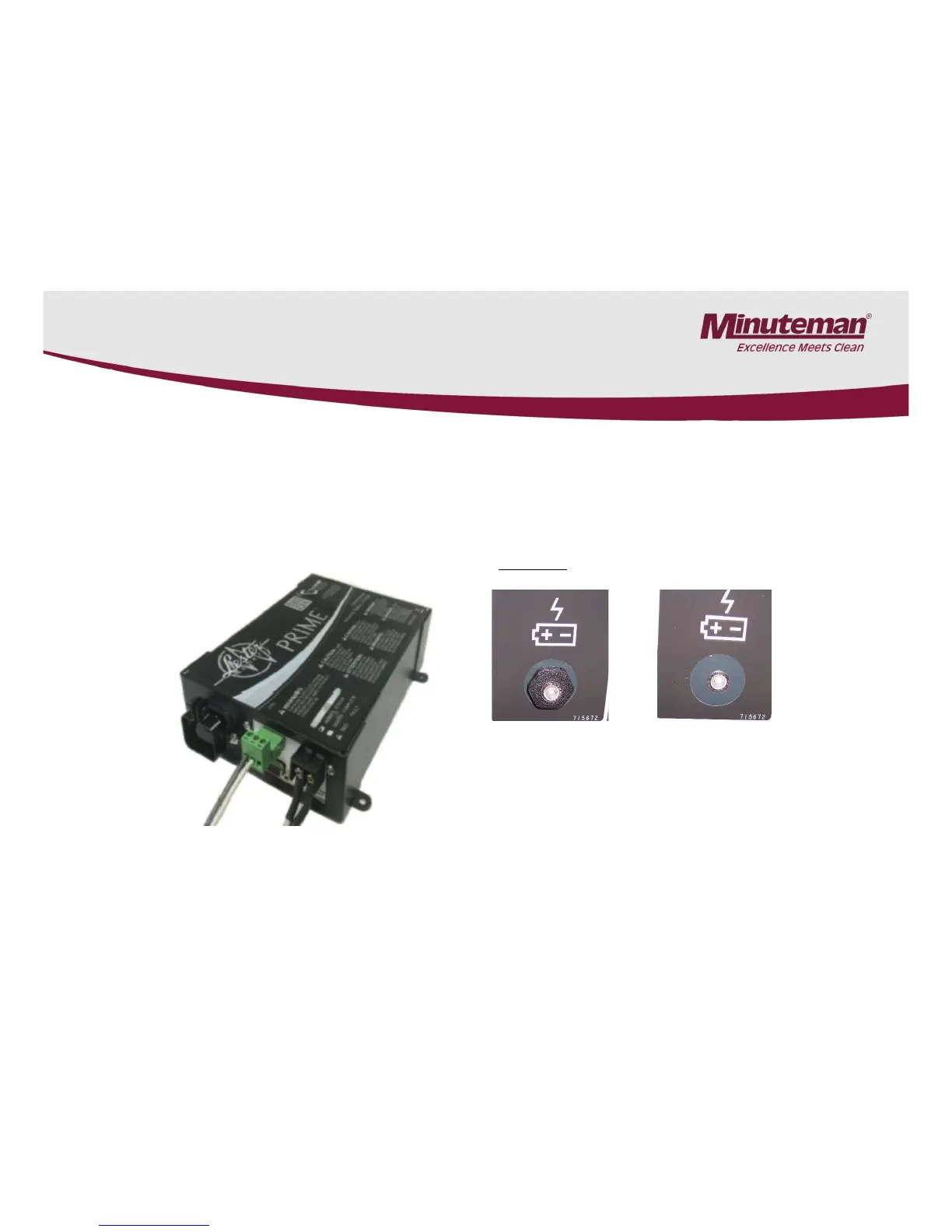

Prime Charger
Indicator Version 1
Prime Charger
Indicator Version 2
