18. Testing the Main Power Relay on the E17, E20 and
E26ECO

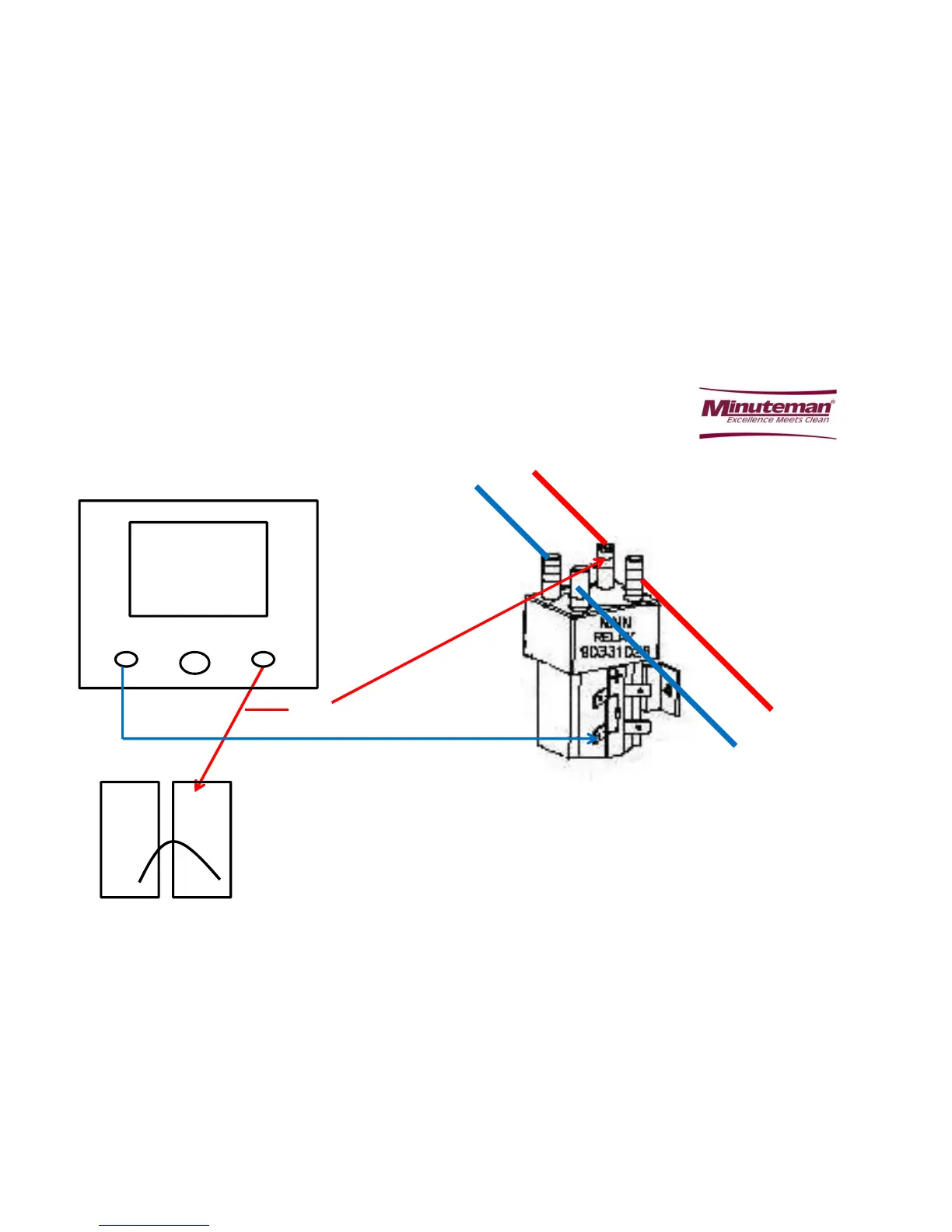

Note: Measure the voltage from the battery positive
source to the B- terminal of the main relay’s coil to
determined of the B- is being supplied to the coil.
It should be 24 volts.
+ -
-
+
