Mira Advance ATL J97C User Manual

18

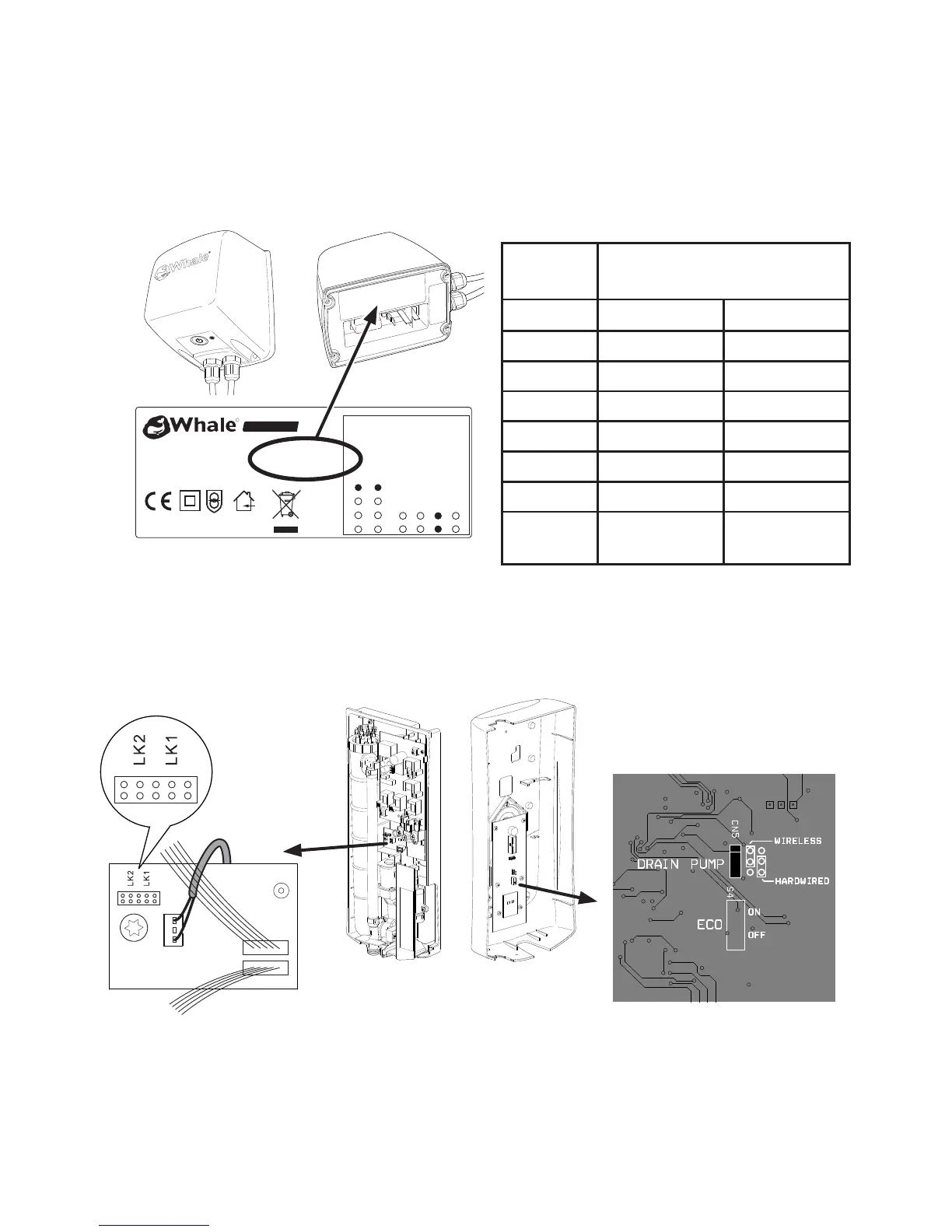

Instantmatch by Whale® Digital Pump
The Mira Advance ATL 'Extra' models can be connected to the Instantmatch by
Whale® Pump. This section describes how to identify and connect the shower to the
drain pump. For full installation instructions of the Instantmatch by Whale® Pump,
see separate guide.
1. Identify the drain pump model using the TYPE number in the table. The
corresponding number is shown on the drain pump transformer.
2. Set the electronic jumper positions of the DRIVER and SIGNAL in the shower
according to the TYPE number of the drain pump
DRIVER SIGNAL
Jumper
location
(Mira Advance Flex Extra Wireless J97P only.)
TYPE
Drain
Pump
Shower
Type Driver Signal
755.171 LK1 Hardwired
755.199 LK1 Hardwired
755.299 LK2 Hardwired
755.349 LK2 Hardwired
755.399 LK2 Hardwired
755.449 LK2 Hardwired
755.549 LK2
Hardwired/
Wireless
R
INSTANT
MATCH
Input: 230Vac ~ 50Hz 800mA
Fuse T5A
Duty Cycle: 30min/60min
This transformer is only for use with:
SDP021T Shower Drainage Pump
Type: 755.549
IP 45 30°C Max
Class II Indoor use
only
F
Jumper Layout - See Instructions
Post installation - To perform any
change to jumper settings, the power
supply must be switched off for
30 seconds prior to the change being made.
Off
Delay
(Seconds)
10
30
Gems Sensor Venturi Sensor Mira Advance Extra Wired Mira Advance Extra Wireless
