Mira Advance Installation Guide

15
1306246-W2-A
THERMOSTATIC
ELECTRIC SHOWER
Mira Advance
8.7 and 9.8 kW
Kohler Mira Limited, July 2017
Installation Template
1327483-W7-A
Optional
Hole
Bottom
Fixing Hole
Bottom
Fixing Hole
Optional
Hole
Optional
Hole
Top Fixing
Hole
Optional
Hole
Inlet
Connector
Electrical
Connections
Outlet
Connector
Place Spirit Level on This Line
to Level Product Before Drilling
This Installation Template is compatible with
the following Mira Advance Electric Showers:
Standard 8.7 and 9.8 kW
Flex 8.7 and 8.9 kW
Flex Extra 8.7 kW

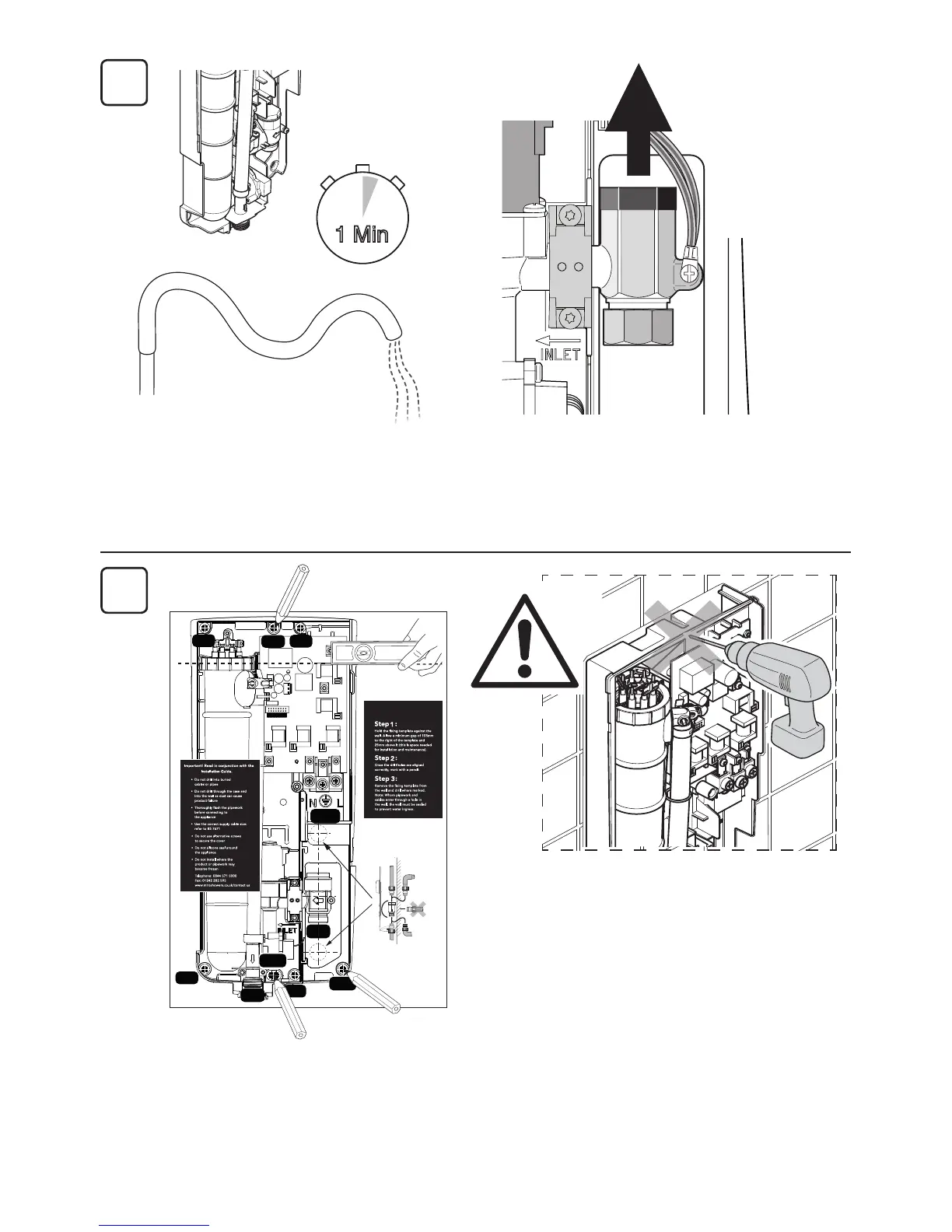

DO NOT ush through the product by removing the inlet lter. Debris may damage
the product and invalidate the guarantee.
Flush the pipework for approximately 1 minute prior to connection.
1 Min
DO NOT
REMOVE TO
FLUSH THE
PRODUCT
5
6
Use the installation template provided to mark and drill the required xing holes. Do
not drill through the shower unit into the wall. Plaster and brick dust will damage the
internal components of the product.
Note! Make sure that you mark a minimum of two xing holes, one at the top and
one at the bottom.

Mira Advance Specifications

General

Temperature Control	Thermostatic
Warranty	2 Years
Power Ratings	9.8 kW
Water Connection	15 mm
Outlet Connection	1/2"
Water Pressure	0.7 - 10 bar
Cable Entry Points	Bottom entry
Safety Features	Overheat protection
Approvals	WRAS
