Mirage 22000/4000/6000User’s Manual
Typical hardware configurations for active and passive 3D systems are shown in
Figure 3.31, Figure 3.32, Figure 3.33 and Figure 3.34. Hardware descriptions follow
the illustrations.

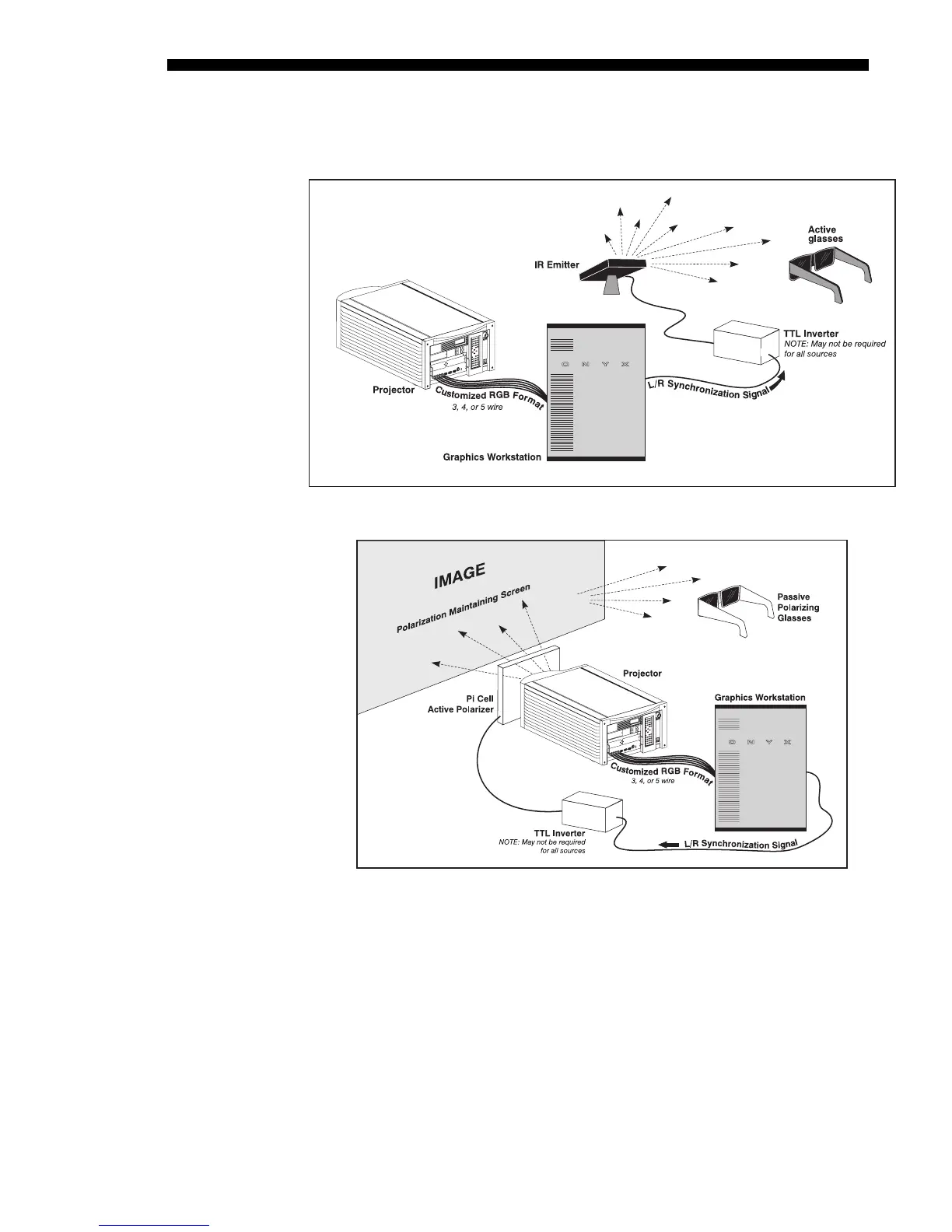

Figure 3.31. Typical 3D Configuration with Active Glasses & TTL Inverter
Figure 3.32. Typical 3D Configuration with Passive Glasses & TTL Inverter
