5. PARAMETERS
5.2 Control method
5.2.3 Selecting the PM motor control
 Setting for the PM motor control by selecting IPM initialization on the
operation panel
(" ")
• The parameters required to drive an IPM motor MM-EFS or MM-THE4 are automatically set by batch. (Refer to page 185.)
• [PM] indicator on the operation panel (FR-DU08) is turned ON when the PM motor control is set.
The following shows the procedure to perform the motor parameter initialization (change the parameter settings to the
appropriate settings for an IPM motor MM-EFS (1500 r/min specification) or MM-THE4) by selecting IPM initialization on the
operation panel.

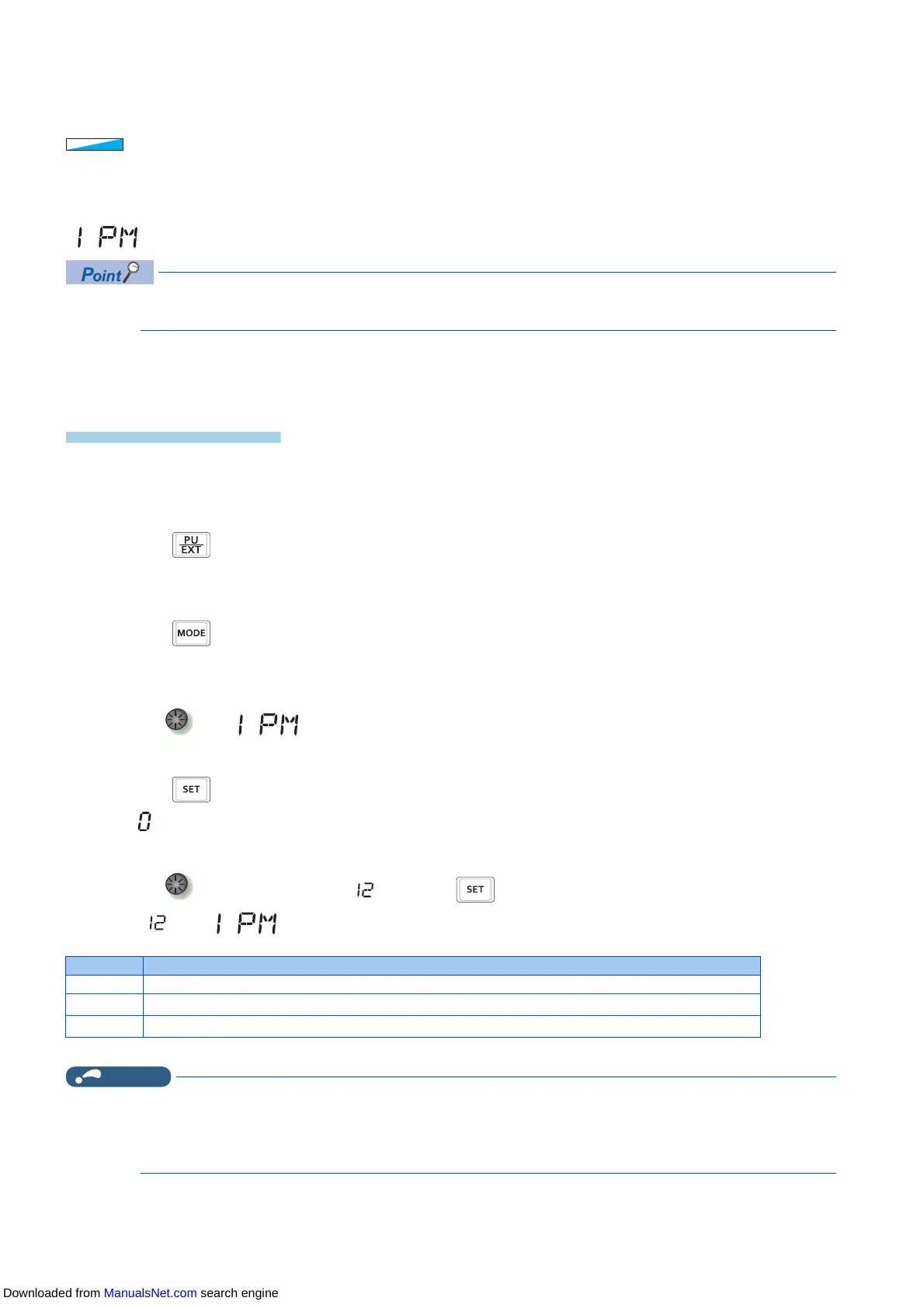

Operating procedure
1. Turning ON the power of the inverter
The operation panel is in the monitor mode.
2. Changing the operation mode
Press to choose the PU operation mode.
[PU] indicator turns ON.
3. Selecting the parameter setting mode
Press to choose the parameter setting mode.
[PRM] indicator is ON.
4. Selecting IPM initialization
Turn until " " (IPM initialization) appears.
5. Displaying the set value
Press to read the present set value.
" " (initial value) appears.
6. Changing the setting value
Turn to change the value to " ", and press to confirm it.
" " and " " are displayed alternately. The setting is completed.
*1 The setting is available for the standard structure model or the separated converter type.
NOTE
• If the motor parameter initialization is performed by using IPM initialization for the use of a PM motor, the setting of Pr.998 PM
parameter initialization is also changed automatically.
• To set a speed by adjusting frequencies or to monitor it, use Pr.998. (Refer to page 183.)
• When Pr.998 = "112 or 114", IPM initialization setting is displayed as "12 or 14".
Setting Description
0 Parameter settings for an induction motor
12
*1
Parameter setting (in rotations per minute) for the IPM motor MM-EFS (1500 r/min specification) or MM-THE4
14
*1
Parameter setting (in rotations per minute) for the IPM motor MM-EFS (3000 r/min specification)
PMPMPM
