Mitsubishi Electric FR-F800 Series User Manual

201
5. PARAMETERS
5.4 (E) Environment setting parameters
1
2
3
4
5
6
7
8
9
10

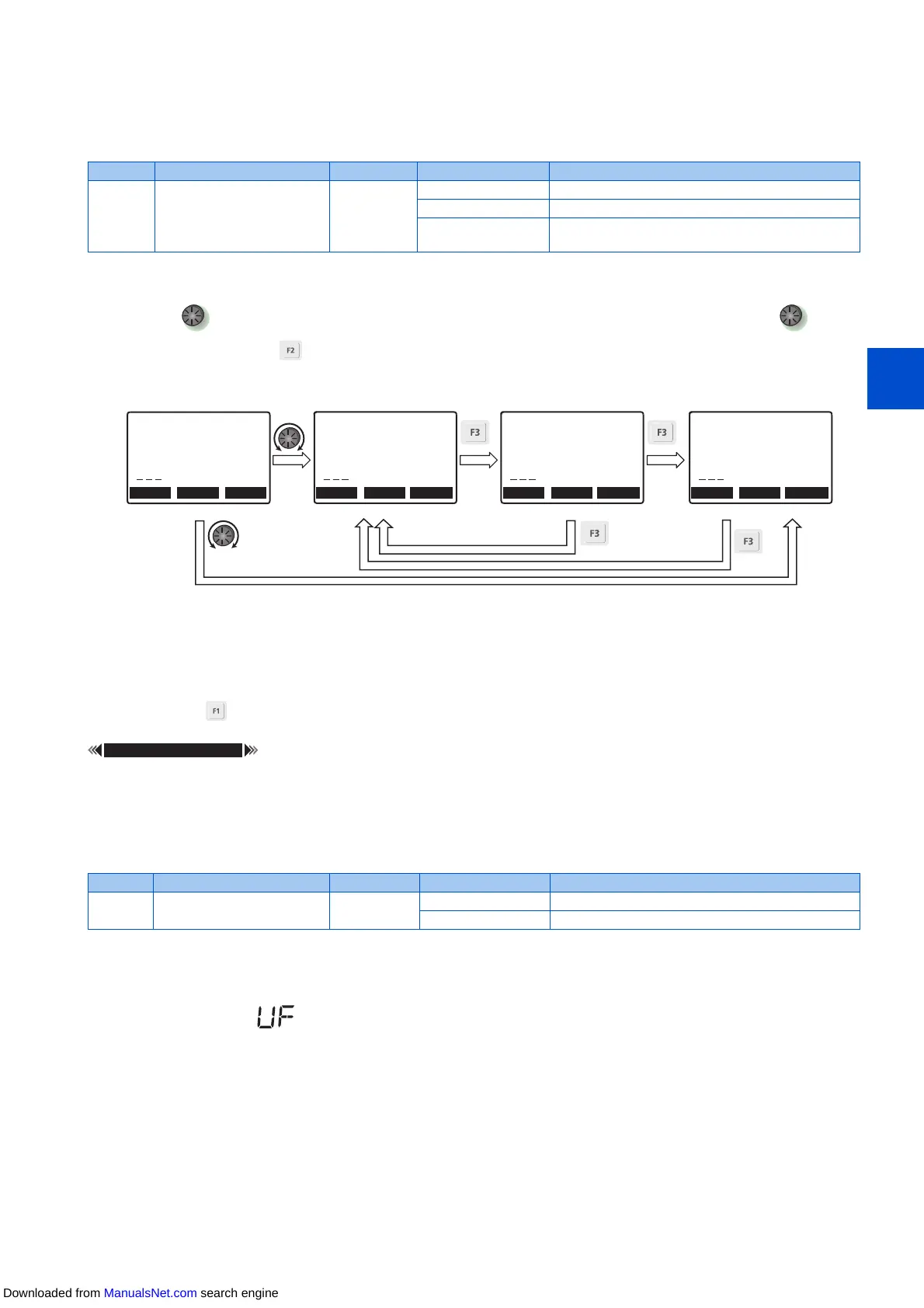

5.4.7 Direct setting
The PID set point setting screen (direct setting screen) can be displayed first on the LCD operation panel (FR-LU08) according
to the parameter setting.
• This function is useful for setting the PID set point on the LCD operation panel.
• The monitor display can be switched from the main monitor screen to the set point setting screen for the PID action simply
by turning , according to the setting of Pr.1000 Direct setting selection. On each setting screen, turn to input
a setting value, and press to confirm the setting.
*1 When Pr.1000 = "0"
*2 When Pr.1000 = "1"
*3 When Pr.1000 = "2"
*4 Not displayed when PID control is disabled (Pr.128 = "0").
*5 Indication of "NEXT" is not displayed when Pr.1000 = "0".
• To switch back the monitor display from the Extended direct screen or the Frequency setting screen to the Main monitor
screen, press .
Parametersreferredto
Pr.128 PID action selection page 419
5.4.8 Resetting USB host errors
When a USB device is connected to the USB connector (connector A), the USB host error can be canceled without performing
the Inverter reset.
• Parameter copy (refer to page 579) or the trace function (refer to page 486) is available when a USB device (such as a
USB memory) is connected to the USB connector (connector A).
• When a device such as a USB charger is connected to the USB connector and an excessive current (500 mA or higher)
flows, USB host error " " (UF warning) is displayed on the operation panel.
• When the UF warning appears, the USB error can be canceled by removing the USB device and setting Pr.1049 = "1".
(The UF warning can also be canceled by resetting the inverter power or resetting with the RES signal.)
Pr. Name Initial value Setting range Description
1000
E108
Direct setting selection 0
0 Displays the Frequency setting screen.
1 Displays the direct setting screen (for set point setting).
2
Displays the direct setting screen (for set point setting)
and the frequency setting screen.
(SET)
One of the Main monitor screen
Example of screen switching and shifting when the PID control is enabled (Pr.128 ≠ "0")
Direct #1 screen ∗4 Direct #2 screen ∗4 Frequency setting screen ∗5
(NEXT) (NEXT)
(NEXT)
∗3
(NEXT)
∗2
∗1
∗2,∗3 ∗2,∗3 ∗3
PREV SET NEXT
STOP PU
Hz
Output frequency
12: 34
0.00
NEXT
BACK SET NEXT
STOP PU
Frequency Setting
Pres value
Set value
0.00Hz
100.00Hz
10.0PSI
10.0PSI
NEXT
BACK SET NEXT
STOP PU
PID act set pnt
Pres value
Set value
10.0PSI
10.0PSI
NEXT
BACK SET NEXT
STOP PU
2ndPID set point
Pres value
Set value
(BACK)
Pr. Name Initial value Setting range Description
1049
E110
USB host reset 0
0 Read only
1 Resets the USB host.
Downloaded from ManualsNet.com search engine

Mitsubishi Electric FR-F800 Series Specifications

General

Series	FR-F800
Category	Inverter
Power Range	0.4kW to 630kW
Output Frequency	0 to 400Hz
Rated Output Current	Varies by model (refer to specifications)
Control Method	V/f control, Vector control
Communication Options	RS-485
Protection Features	Overload, Short circuit
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in or external options available
Cooling Method	Forced air cooling
Ambient Temperature	-10°C to 50°C
Storage Temperature	-20°C to 65°C
Humidity	Up to 95% (non-condensing)
Altitude	Up to 1000m
Enclosure Rating	IP20 (standard)
Dimensions	Varies by model
