Mitsubishi Electric FR-F800 Series User Manual

635
7. PRECAUTIONS FOR MAINTENANCE AND INSPECTION
7.2 Measurement of main circuit voltages, currents, and powers
1
2
3
4
5
6
7
8
9
10

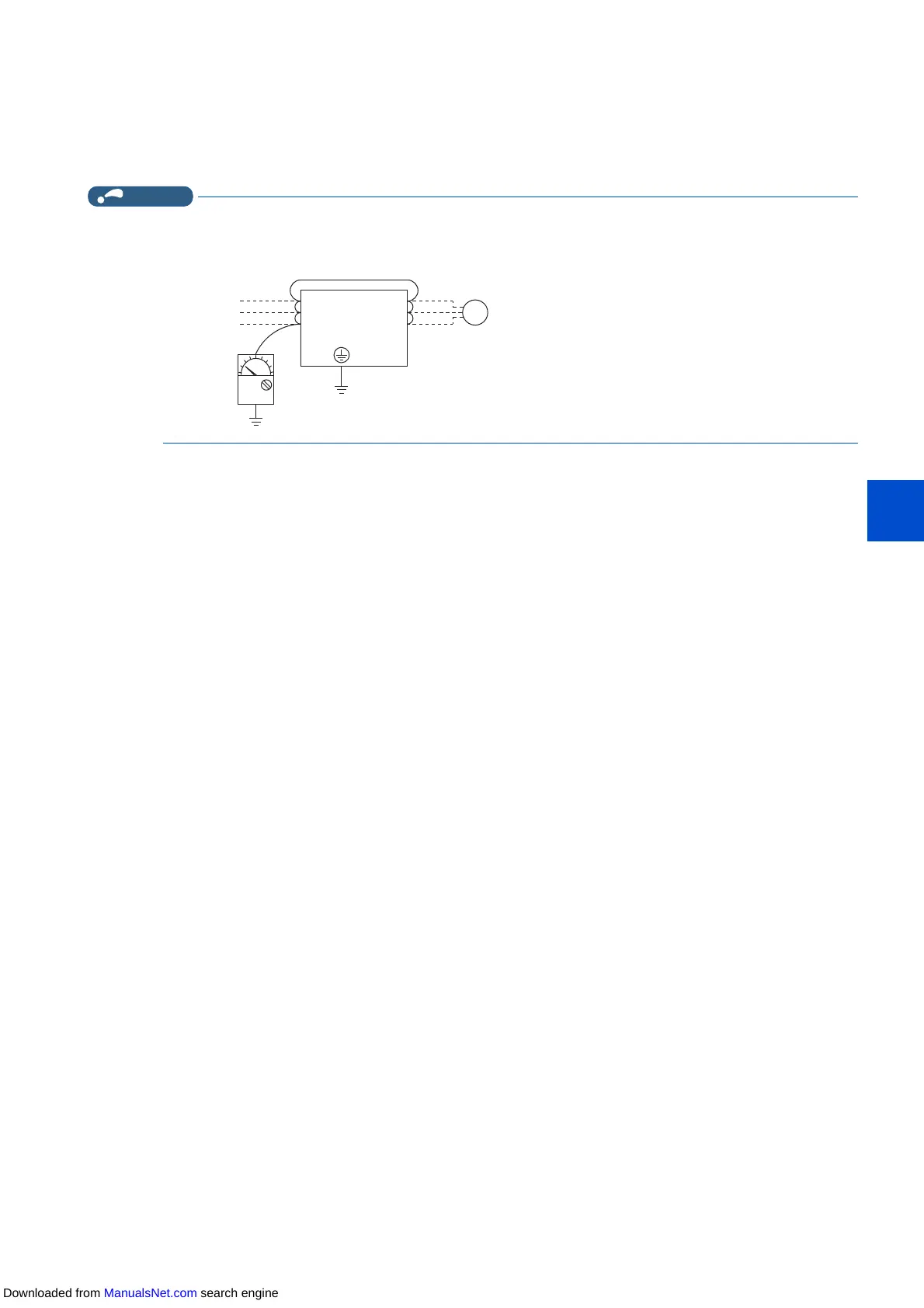

7.2.7 Insulation resistance test using megger
• For the inverter, conduct the insulation resistance test on the main circuit only as follows and do not perform the test on
the control circuit.
(Use a 500 VDC megger.)
NOTE
• Before performing the insulation resistance test on the external circuit, disconnect the cables from all terminals of the inverter
so that the test voltage is not applied to the inverter.
• For the continuity test of the control circuit, use a tester (high resistance range) and do not use the megger or buzzer.
7.2.8 Pressure test
Do not conduct a pressure test. Deterioration may occur.
U
V
W
Inverter
500 VDC
megger
Power
supply
M
Motor
R/L1
S/L2
T/L3
Downloaded from ManualsNet.com search engine

Mitsubishi Electric FR-F800 Series Specifications

General

Series	FR-F800
Category	Inverter
Power Range	0.4kW to 630kW
Output Frequency	0 to 400Hz
Rated Output Current	Varies by model (refer to specifications)
Control Method	V/f control, Vector control
Communication Options	RS-485
Protection Features	Overload, Short circuit
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in or external options available
Cooling Method	Forced air cooling
Ambient Temperature	-10°C to 50°C
Storage Temperature	-20°C to 65°C
Humidity	Up to 95% (non-condensing)
Altitude	Up to 1000m
Enclosure Rating	IP20 (standard)
Dimensions	Varies by model
