Dimensions Annex
A - 8

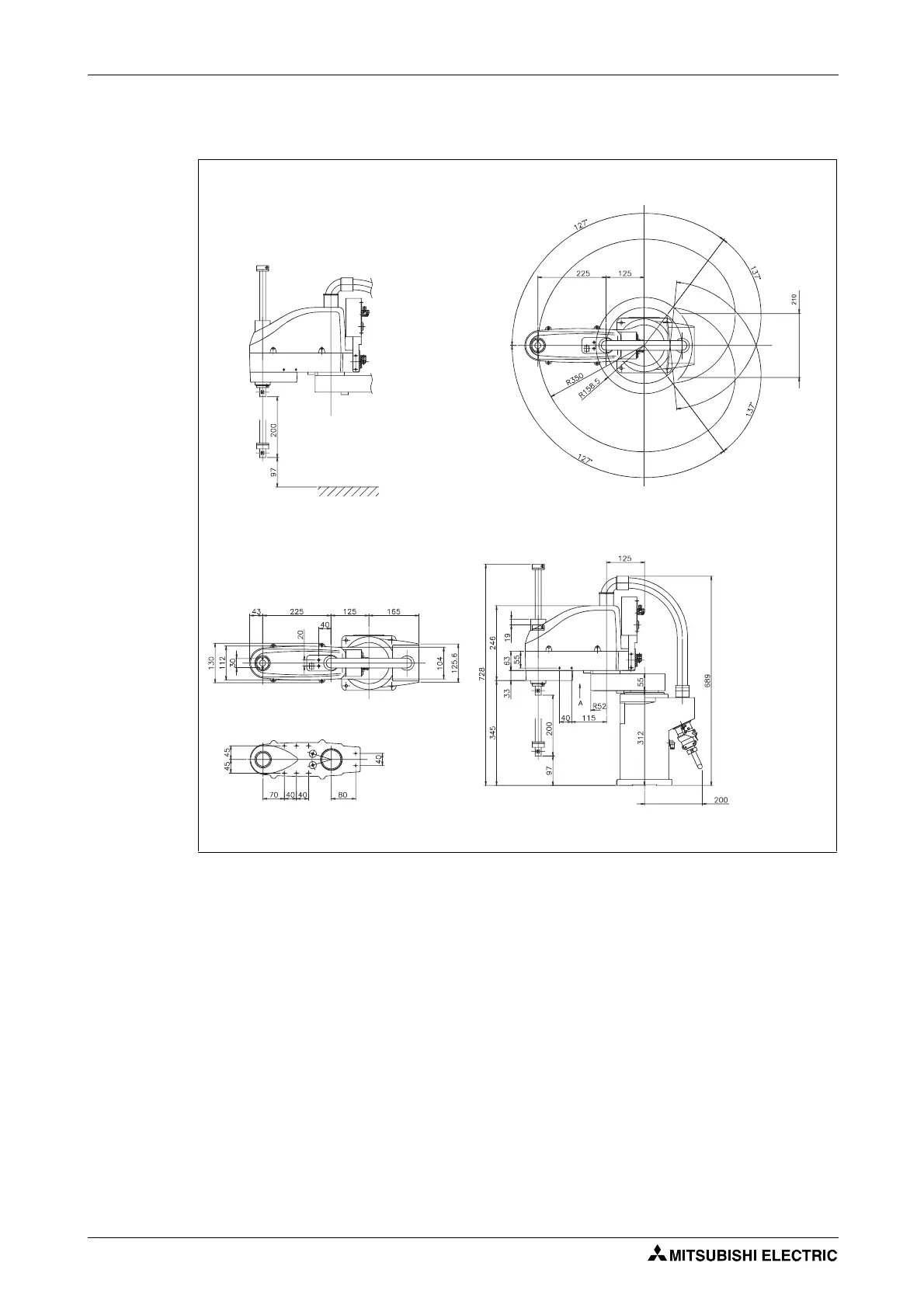

The following figure shows the external dimensions and the range of motion of robot arms
RH-6SDH3520 and RH-6SQH3520
.
R001409E
Fig. A-8:
External dimensions and range of motion of robot arms RH-6SDH3520
and
RH-6SQH3520
Weight: 20 kg
Limits of
range of motion
View A
Installation
surface
All dimensions in mm
