Annex Dimensions
SD-/SQ series A - 9

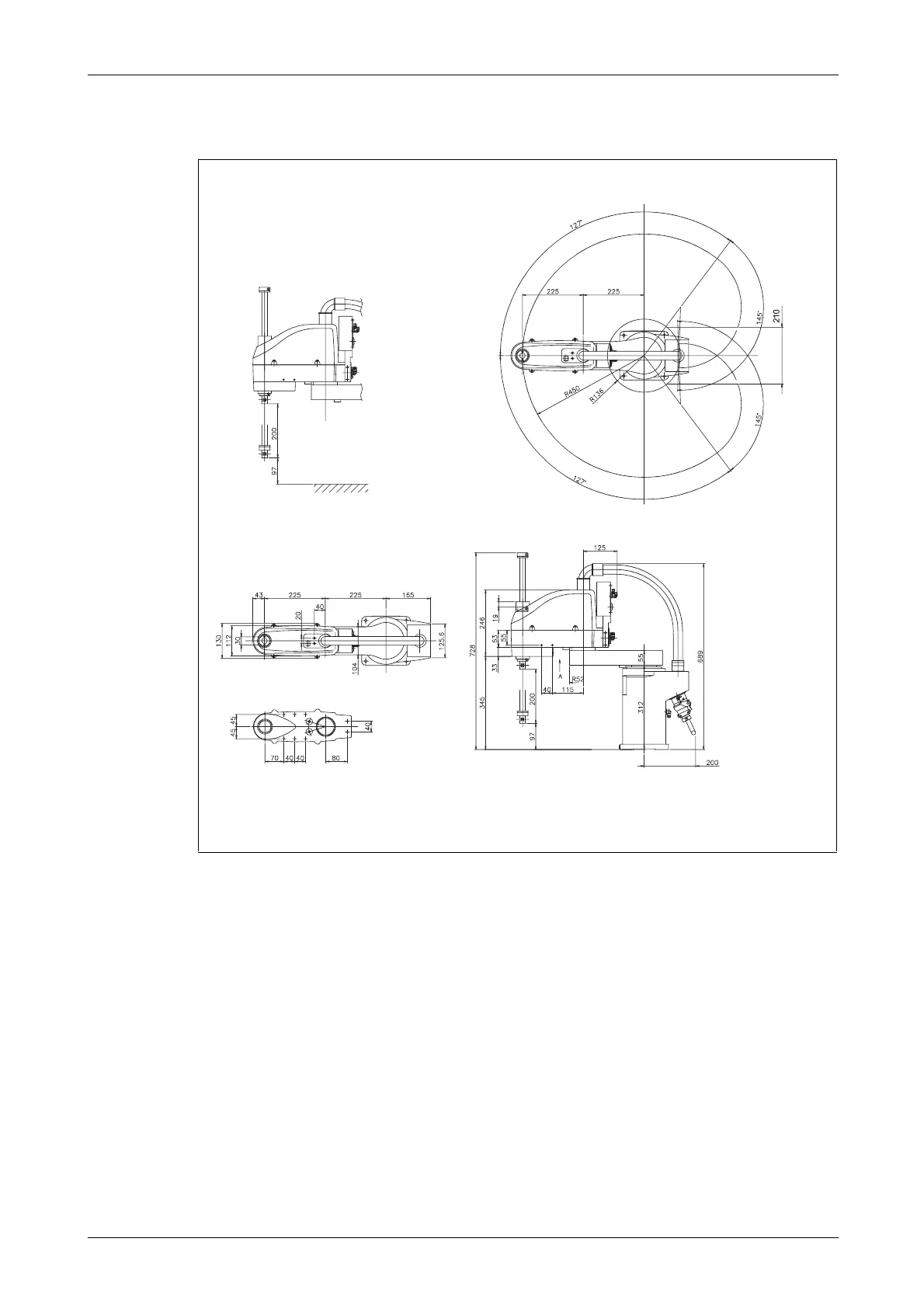

The following figure shows the external dimensions and the range of motion of robot arms
RH-6SDH4520 and RH-6SQH4520
.
R001410E
Fig. A-9:
External dimensions and range of motion of robot arms RH-6SDH4520
and
RH-6SQH4520
All dimensions in mm
Limits of
range of motion
View A
Installation
surface
Weight: 21 kg
