Unpacking the robot system Installation
3 - 2
RV-3SD/SDJ, RV-6SD/6SDL, RV-3SQ/3SQJ and RV-6SQ/6SQL
The robot arm is packaged in a box. The following figure shows you step-by-step how to unpack the
robot arm.
Use a knife or similar object to open the packaging tape, as shown in
.
Using both hands, remove the upper part of the packaging as shown in
.
Remove the four screws with which the base is screwed onto the lower section.
Transport the robot arm to the place of installation, as described in Section 3.2.
NOTE
Keep the packaging and transport locks for later transport.
R001296C

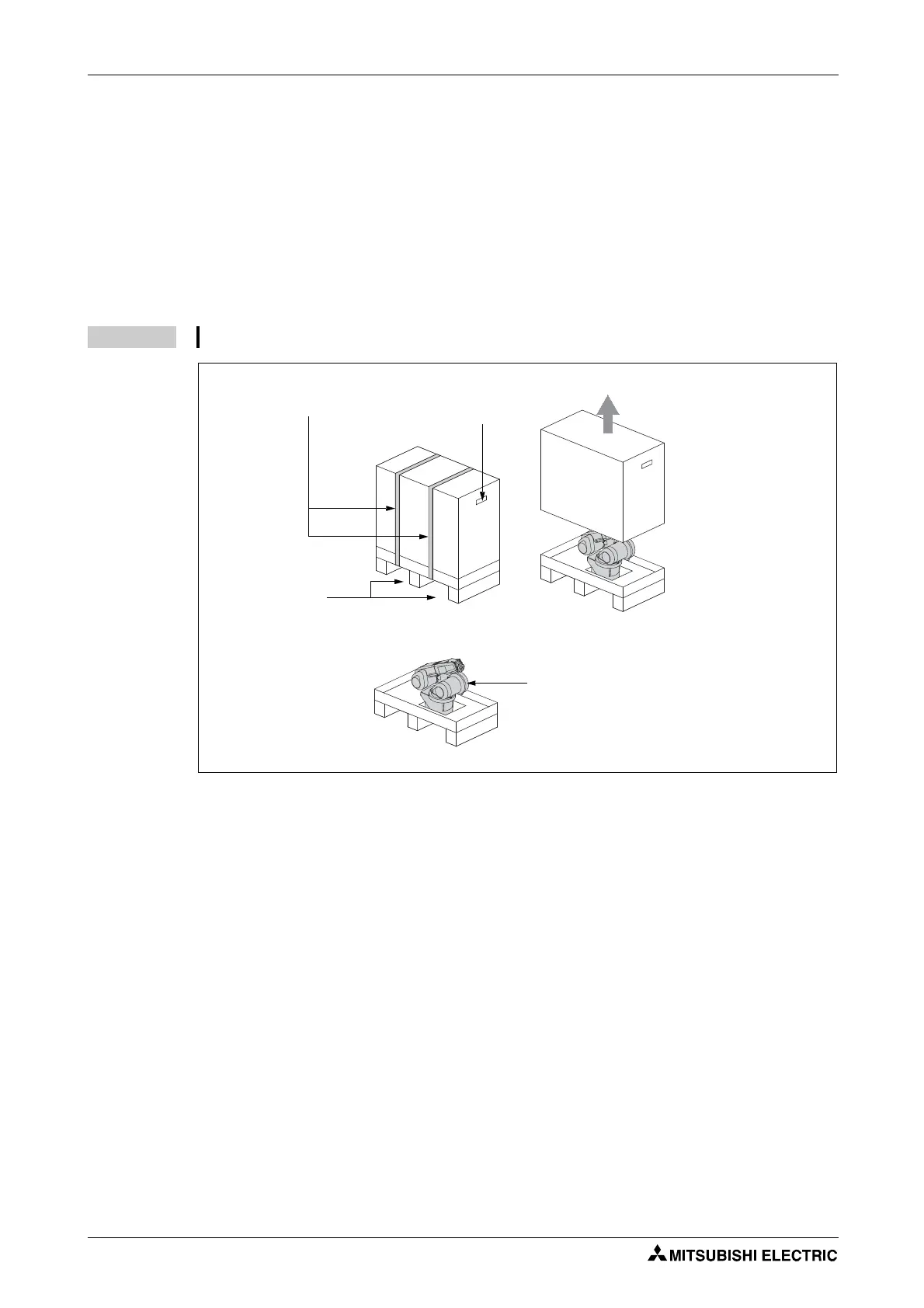

Fig. 3-2: Unpack articulated arm robot RV-3SD/SDJ, RV-6SD/6SDL, RV-3SQ/3SQJ and RV-6SQ/6SQL
Packing tape
Robot arm
Fork lift
Handle
(both sides)
