Mitsubishi 3000GT User Manual
5
of 1
of 1 rating
738 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
304

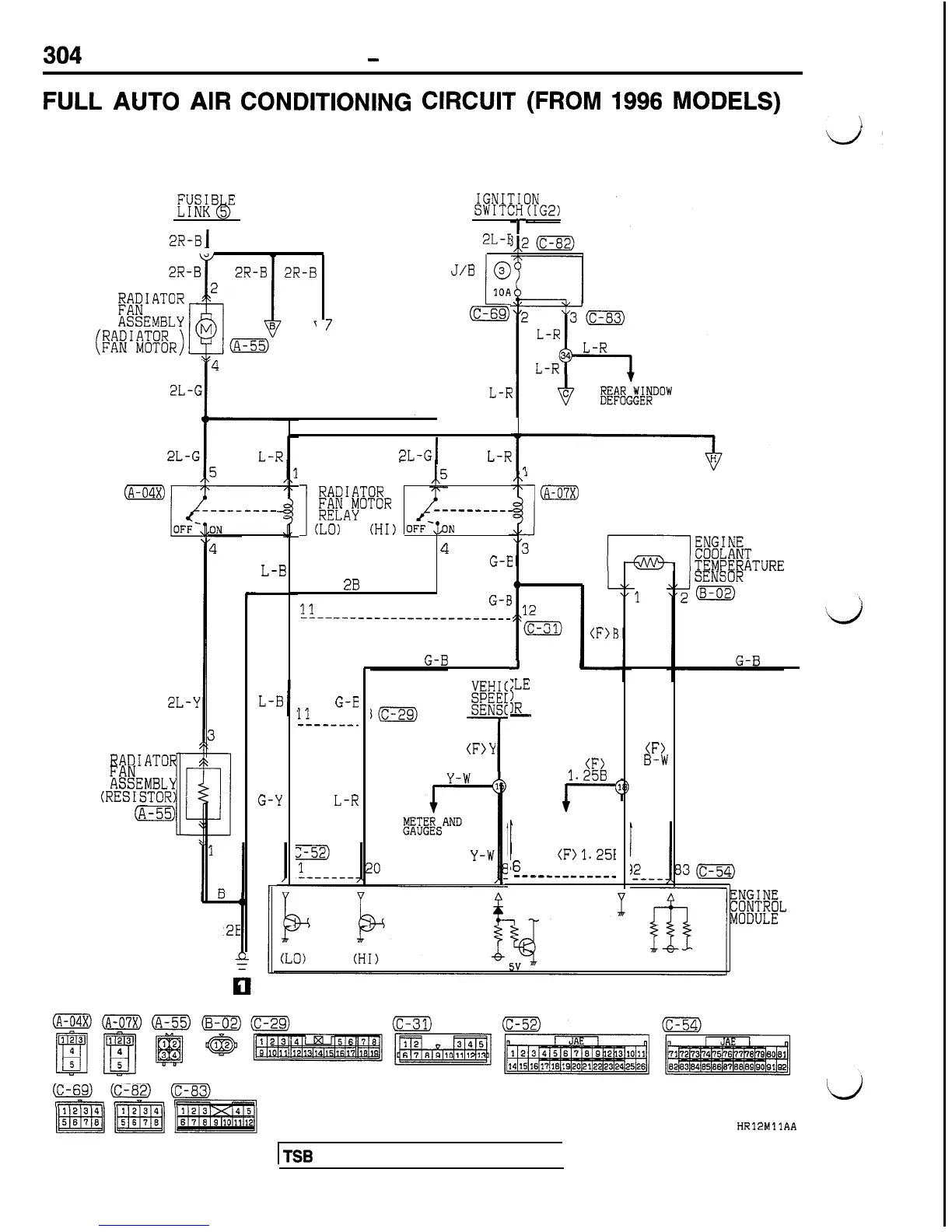

CIRCUIT DIAGRAMS
-
Full Auto Air Conditioning Circuit
FULL
AUTO
AIR
CONDITIONING
CIRCUIT
(FROM
1996
MODELS)
i/,
IGNITION
SWITCH(IG2)
r
2L-E
2R-Bj
J/B
@
I--
10A
7
(c-69)
2L-G
I
L-R
(A-04X)
I
RADIATOR
;;FAyOTOR
----------
(LO)
(HI)
OFF-..%
4
G-E
2B
II
G-E
1
(A-07X)
----
2E
L-B
(F>l
c
1
11
---------__~~----_________
J
r
(F>Y
:LE
!R
-
I.
RADIATOR
FAN
ASSEMBL,Y
(RESISTOR)
(A-55)
L-B
G-E
11
-----_-_
G-Y
L-R
(F)
B-W
(F>
1.258
I--
i
MFI SYSTEM
I
(F)1.25I
6
----------___
HR12MllAA
1
TSB
Revision
1
305
307
Table of Contents
Default Chapter
3
Alphabetical Index
3
Group/Section Index
3
Fusible Link, Fuse and IOD or Storage Connector Location
4
Inspection Terminal Location
5
Grounding Location
6
Relay Location
8
Sensor Location
11
Control Unit Location
16
Solenoid, Solenoid Valve Location
18
Diode Location
19
Junction Block
20
Centralized Junction
22
Fusible Link (Relay Box in Engine Compartment)
22
Dedicated Fuse
23
Multi-Purpose Fuse (in Junction Block)
24
Centralized Relay
25
Computer Connector
26
Connector Continuity and Voltage Test
26
Harness Connector Inspection
26
Terminal Engagement Check
26
Round Waterproof Connector
27
Rectangular Waterproof Connector
28
Injector Connector
28
How to Diagnose
29
Troubleshooting Steps
29
Inspection Instruments
30
Checking Switches
31
Checking Relays
32
Switch Connection
32
Cautions in Event of Blown Fuse
33
Checking Fuses
33
Checking Cables and Wires
34
Handling On-Vehicle Battery
34
General Electrical System Checks
35
Voltage Check
35
Continuity Check
36
Short-Circuits Check
36
Configuration Diagrams
37
Convertible
38
Hatchback
38
Overall Configuration Diagram
38
How to Read Configuration Diagram
39
Engine Compartment (up to 1993 Models)
40
Turbo
40
Engine Hood
43
Engine Compartment (from 1994 Models)
44
Engine and Transaxle (M/T)
48
Rear View
49
Engine and Transaxle (A/T)
50
Dash Panel
52
Front Side
54
Instrument Panel and Floor Console
56
Interior
58
Luggage Compartment
60
Convertible 1995 Models
61
Convertible 1996 Models
62
Circuit Diagrams
63
How to Read Circuit Diagrams
64
Connector/Grounding Indications
66
Green
68
Wire Color Codes
68
Component Location
69
Power Distribution
69
Power Distribution Circuit (up to 1993 Models)
70
Power Distribution Circuit (1994 Models)
74
Power Distribution Circuit (1995 Models)
78
Power Distribution Circuit (from 1996 Models)
82
MFI Circuit (1992 Model) (Non-Turbo)
86
MFI Circuit (1992 Model) (Turbo)
92
MFI Circuit (1993 Models) (Non-Turbo)
98
MFI Circuit (1993 Models) (Turbo)
104
MFI Circuit (1994 Models) (Non-Turbo)
110
MFI Circuit (1994 Models) (Turbo)
118
MFI Circuit (199 Models) (Non-Turbo) (Federal)
126
MFI Circuit (1995 Models) (Non-Turbo) (California)
134
MFI Circuit (1995 Models) (Turbo)
142
MFI Circuit (from 1996 Models) (Non-Turbo)
150
MFI Circuit (from 1996 Models) (Turbo)
158
Component Location up to 1993 Models and 1994, 1995 Models Non Turbo (Federal)
166
Component Location 1994, 1995 Models Except Non Turbo (Federal) and from 1996 Models
171
Cooling Component Location
177
Cooling Circuit (up to 1993 Models)
178
Cooling Circuit (1994, 1995 Models) (Non-Turbo) (Federal)
180
Cooling Circuit (1994, 1995 Models) (Turbo, Non-Turbo) (California)
182
Cooling Circuit (from 1996 Models)
184
Fan Operating Mode
186
Troubleshooting Hints
186
Up to 1993 Models
186
From 1994 Models
187
ELC-4 A/T Circuit (1992 Model)
188
ELC-4 A/T Circuit (1993 Model)
192
ELC-4 AIT Circuit (1994, 1995 Models) (Federal)
196
ELC-4 A/T Circuit (1994, 1995 Models) (California)
200
ELC-4 A/T Circuit (from 1996 Models)
204
Buzzer Circuit (up to 1993 Models)
210
Buzzer Circuit (from 1994 Models)
211
Key-Reminder Warning
213
Seat Belt Warning
213
Power Window Circuit (up to 1993 Models)
214
Power Window Circuit (1994 Models)
216
Power Window-Circuit (1995 Models)
218
Power Window Circuit (from 1996 Models)
220
Central Door Locking Circuit (up to 1993 Models) (Vehicles Without Keyless Entry System)
224
Central Door Locking Circuit (up to 1993 Models) (Vehicles with Keyless Entry System)
226
Central Door Locking Circuit (1994, 1995 Models)
230
Central Door Locking Circuit (from 1996 Models)
234
Vehicles with Keyless Entry System
239
Vehicles Without Keyless Entry System
239
Heater Circuit (up to 1995 Models)
241
Heater Circuit (from 1996 Models)
242
Manual Air Conditioning Circuit (1992 Model)
244
Manual Air Conditioning Circuit (1993 Models)
250
Manual Air Conditioning Circuit (1994, 1995 Models) (Non-Turbo) (Federal)
256
Manual Air Conditioning Circuit (1994, 1995 Models) (Turbo, Non Turbo) (California)
262
Manual Air Conditioning Circuit (from 1996 Models)
268
Full Auto Air Conditioning Circuit (1992 Model)
274
Interior
281
Full Auto Air Conditioning Circuit (1993 Models)
282
Full Auto Air Conditioning Circuit (1994, 1995 Models) (Non Turbo) (Federal)
290
Full Auto Air Conditioning Circuit (1994, 1995 Models) (Turbo, Non Turbo) (California)
298
Full Auto Air Conditioning Circuit (from 1996 Models)
306
Blower Motor Relay
314
Windshield Wiper and Washer
316
Wiper Linked with Washer
317
Low-Speed (and High-Speed) Wiper
317
Intermittent Wider
317
Auto Wiper Stop
317
Windshield Wiper and Washer Circuit
318
Rear Wiper and Washer Circuit
320
Intermittent Wiper
321
Low-Speed Wiper
321
Remote Controlled Mirror Circuit
322
Anti-Lock Braking System (ABS) Circuit (up to October, 1993) (FWD)
324
Anti-Lock Braking System (ABS) Circuit (from November, 1993) (FWD) (Hatchback)
328
Anti-Lock Braking System (ABS) Circuit (1995 Models) (FWD) (Convertible)
332
Luggage Compartment
333
Anti-Lock Braking System (ABS) Circuit (up to October, 1993) (AWD)
336
Anti-Lock Braking System (ABS) Circuit (from November, 1993) (AWD)
340
Anti-Lock Braking System (ABS) Circuit (1995 Models) (AWD) (Convertible)
344
Anti-Lock Braking System (ABS) Circuit (from 1996 Models)
348
Electronic Control Suspension (ECS) Circuit (up to 1993 Models)
354
Electronic Control Suspension (ECS) Circuit (1994 Models)
358
Electronic Control Suspension (ECS) Circuit (1995 Models) (Hatchback)
362
Electronic Control Suspension (ECS) Circuit (1995 Models) (Convertible)
366
Active Exhaust System
371
Active Exhaust System Circuit (up to 1993 Models)
372
Active Exhaust System Circuit (1994 Models)
374
Supplemental Restraint System (SRS) Circuit (up to 1993 Model)
376
Supplemental Restraint System (SRS) Circuit (from 1994 Models)
378
Auto-Cruise Control
381
Auto-Cruise Control Circuit (up to 1993 Models) (M/T)
382
Auto-Cruise Control Circuit (1994, 1995 Models) (M/T)(Non Turbo) (Federal)
386
Auto-Cruise Control Circuit (1994, 1995 Models) (M/T) Turbo, Non Turbo (California)
390
Auto-Cruise Control Circuit (from 1996 Models) (M/T)
394
Auto-Cruise Control Circuit (1992 Model) (A/T)
398
Auto-Cruise Control Circuit (1993 Models) (A/T)
402
Auto-Cruise Control Circuit (1994, 1995 Models) (A/T)
406
Auto-Cruise Control Circuit (from 1996 Models) (A/T)
414
Power Seat Circuit (up to 1993 Models)
418
Power Seat Circuit (1994, 1995 Models)
420
Power Seat Circuit (from 1996 Models)
422
Tension-Reducer Type Seat Belt Circuit (up to 1994 Models)
425
Tension-Reducer Type Seat Belt Circuit (from 1995 Models)
426
Active Aero Circuit (up to 1993 Models)
430
Active Aero Circuit (from 1994 Models) (Hatchback)
432
Car Telephone Circuit (1992 Model) (Vehicles Harness Without Telephone Component)
437
Car Telephone Circuit (1993 Models) (Vehicles Harness Without Telephone Component)
438
Top Stack Circuit (1995 Models) (Convertible)
440
Top Stack Circuit (from 1996 Models) (Convertible)
442
Sunroof Circuit (from 1995 Models) (Hatchback)
444
Table of Contents
447
Charging System Specifications
448
Generator
448
Troubleshooting (up to 1993 Models)
449
Circuit Diagram
449
Troubleshooting (from 1994 Models)
450
When Engine Is Stopped
451
When Engine Is Being Started/Has Started
451
On-Vehicle Service
452
Generator Output Line Voltage Drop Test
452
Output Current Test
453
Regulated Voltage Test
455
Voltage Regulation Table
455
Wave-Form Check Using an Analyzer Measurement Method
456
Standard Wave-Form
456
Observation Conditions
456
Abnormal Wave-Forms Examples
457
Generator Removal and Installation
458
Removal Service Point
458
Disassembly and Reassembly (up to 1995 Models)
459
Disassembly and Reassembly (from 1996 Models)
460
Disassembly Service Point
460
Generator Pulley Removal
460
Stator/Regulator and Brush Holder Removal
461
Rotor Assembly Installation
461
Inspection
462
Rotor
462
Stator
462
Positive Rectifier Test
462
Negative Rectifier Test
463
Diode Trio Test
463
Brush Replacement (up to 1995 Models)
463
Brush Replacement (from 1996 Models)
464
Starting System Specifications
465
Starter Motor
465
General Specifications
465
Service Specifications
465
Troubleshooting
466
Circuit Diagram
466
Сircuit Diagram (Vehicles Without Theft-Alarm System)
466
Сircuit Diagram (Vehicles with Theft-Alarm System (M/T))
467
Сircuit Diagram (Vehicles with Theft-Alarm System (AK)
468
Pinion Gap Adjustment
469
Starter Motor Removal and Installation
469
Free Running Test
470
Magnetic Switch Hold-In Test
470
Magnetic Switch Pull-In Test
470
Magnetic Switch Return Test
471
Starter Relay
471
Disassembly and Reassembly (Except from 1994 California Version)
472
Disassembly and Reassembly (from 1994 Сalifornia Version)
473
Commutator Inspection
474
Snap Ring/Stop Ring Removal
474
Starter Motor Parts Cleaning
474
Stop Ring/Snap Ring Installation
474
Brush Holder
475
Front and Rear Bracket Bushing
475
Overrunning Clutch
475
Armature Coil Open-Circuit Check
476
Armature Grounding Test
476
Armature Short-Circuit Test
476
Brushes and Springs Replacement
476
Crank Angle Sensor (up to 1992 Model)
477
Ignition Coil
477
Ignition System Specifications
477
Special Tools
477
Troubleshooting (up to 1995 Models)
479
Troubleshooting (from 1996 Models)
480
Spark Plug Cable Test
482
Spark Plug Test
482
Ignition System
482
On-Vehicle Service
482
Check
482
Ignition Secondary Voltage Wave-Form Check
483
Measurement Method
483
Wave-Form Observation Points
485
Examples of Abnormal Wave-Forms
486
Ignition Primary Voltage Wave-Form Check
487
Observation Conditions (Only Pattern Selector below Changes from the above Conditions)
488
Ignition System Removal and Installation
491
Installation Service Points
492
Crankshaft Position Sensor Installation (up to 1992 Model)
492
Spark Plug Cable Installation
492
Crankshaft Position Sensor Installation (up to 1992 Model, from 1993 Model)
493
Spark Plug Cable
494
Ignition Power Transistor
494
Primary Coil Resistance
495
Secondary Coil Resistance
495
Chassis Electrical
497
Warnings Regarding Servicing of Supplemental Restraint System (SRS) Equipped Vehicles
497
Special Tools
498
Specifications
498
Service Specifications
498
Troubleshooting
498
Battery Inspection
499
Battery Specifications
499
Battery Charging
500
Charge Rate Chart
500
Battery Testing Procedure
501
Load Test Chart
501
Load Test Rate Chart
501
Ignition Switch Removal and Installation
502
Ignition Switch Segment Removal Steps
502
Special Tool
502
Steering Lock Cylinder Removal Steps
502
Column Cover Lower/Column Cover/Upper Removal
503
Removal Service Points
503
Steering Lock Cylinder Removal
503
Steering Wheel Removal
503
Ignition Switch Check
504
Meters and Gauges Specifications
505
Indicators and Warning Lights
506
Sealant
507
Service Specifications
507
Meters and Gauges Circuit Diagram (up to 1993 Models)
508
Chassis Electrical
519
Lighting System
555
Headlight Aiming
596
Bulb Replacement
598
Fog Light
601
Front Combination Light and
602
Headlight
604
Hazard Switch
606
Horn Switch
614
Relay
614
Specifications
615
Cigarette Lighter
619
Troubleshooting
620
Removal and Installation
682
Speaker
683
Rear Window Defogger
688
Defogger Relay
692
On-Vehicle Service
699
Rear Window Defogger Switch
699
Special Tools
701
Troubleshooting
702
Theft-Alarm System
706
Alphabetical Index
731
Starting System
499
Other manuals for Mitsubishi 3000GT
Workshop Manual Supplement
58 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Mitsubishi 3000GT and is the answer not in the manual?
Ask a question
Mitsubishi 3000GT Specifications
General
Brand
Mitsubishi
Model
3000GT
Category
Automobile
Language
English
Related product manuals
Mitsubishi 1993 3000GT
216 pages
Mitsubishi 3000gt 1999
57 pages
Mitsubishi 3000gt 1997
50 pages
Mitsubishi 1995 3000GT Spyder
384 pages
Mitsubishi COLT
273 pages
Mitsubishi Galant
424 pages
Mitsubishi Outlander 2007
545 pages
Mitsubishi 2014 OUTLANDER
20 pages
Mitsubishi 2015 OUTLANDER
20 pages
Mitsubishi 2013 Outlander
602 pages
Mitsubishi Lancer Sportback
433 pages
Mitsubishi LANCER 2014 SERIES
16 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
