Mitsubishi 6A1 series User Manual

6A1 ENGINE (E-W) -
Fuel and Emission Control Parts
11A-5-2

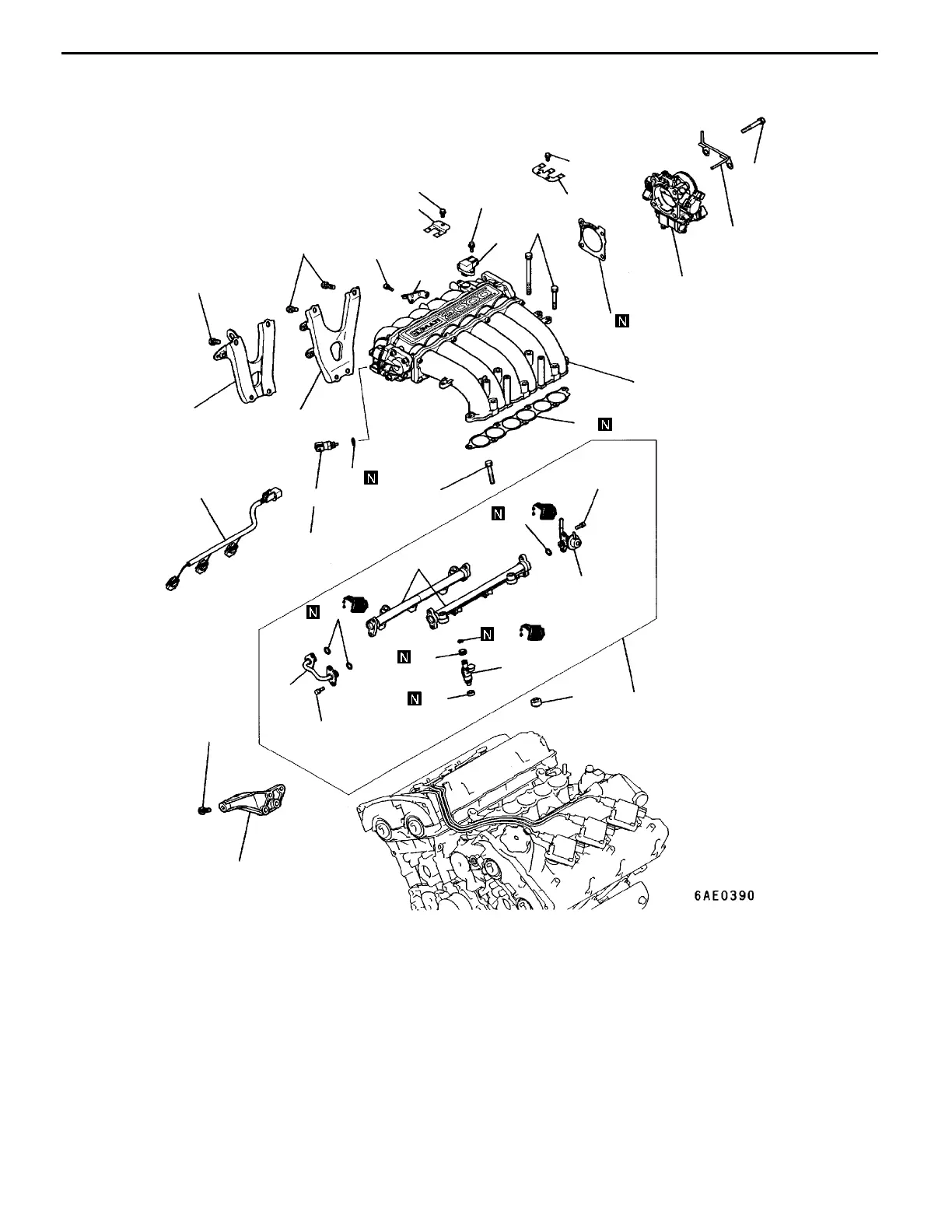

REMOVAL AND INSTALLATION <MIVEC>
2
3
4
5
6
7
8
10
12
13
14
15
16
17
18
19
20
21
22
24
18 Nm
23 Nm
12 Nm
14 Nm
9Nm
9Nm
23
26
1
18 Nm
11
12 Nm
11 Nm
11 Nm
18 Nm
8.8 Nm
18 Nm
25
9
Removal steps
1. Air intake plenum stay, front
2. Air intake plenum stay, rear
3. Vacuum pipe
4. Throttle body
"
C
A 5. Gasket
6. Connector bracket
7. Connector bracket
8. Accelerator cable bracket
9. Ignition failure sensor
10. Air temperature sensor
11. Gasket
12. Air intake plenum
13. Gasket
14. Control harness
15. Delivery pipe and injector
16. Insulator
17. Insulator
"
B
A 18. Injector
19. Grommet
20. O-ring
21. Fuel pipe
22. O-ring
"
A
A 23. Fuel pressure regulator
24. O-ring
25. Delivery pipe
26. Alternator bracket
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
