6A1 ENGINE (E-W) -
Water Pump and Water Pipe
11A-7-3

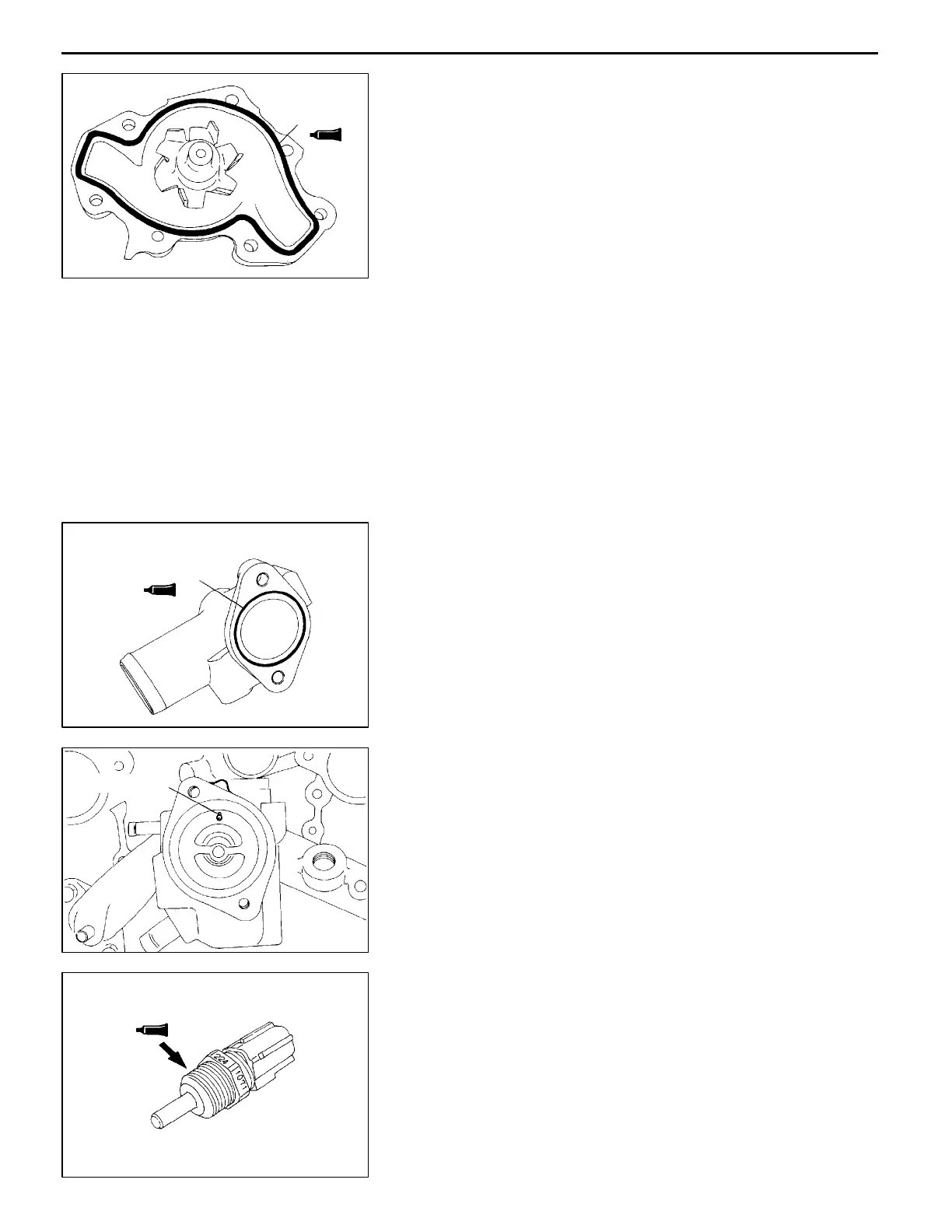

INSTALLATION SERVICE POINTS
"
A
A
SEALANT APPLICATION TO WATER PUMP
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent
"
B
A
WATER PIPE / O-RING INSTALLATION
(1) Wet the O-ring (with water) to facilitate assembly.
Caution
D
Keep the O-ring free of oil or grease.
D
Secure the water pipe after the thermostat housing
has been installed.
"
C
A
SEALANT APPLICATION TO WATER OUTLET
FITTING
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or
equivalent
"
D
A
THERMOSTAT INSTALLATION
(1) Install the thermostat so that the jiggle valve will be located
in the thermostat housing as shown.
"
E
A
SEALANT APPLICATION TO ENGINE COOLANT
TEMPERATURE SENSOR
Specified sealant:
3M Nut locking Part No. 4171 or equivalent
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
6AE0067
3mm
diameter
bead sealant
6AE0068
3mm
diameter
bead sealant
6AE0069
Jiggle valve
6AE0070
To Next Page
