6A1 ENGINE (E-W) -
Water Pump and Water Pipe
11A-7-2

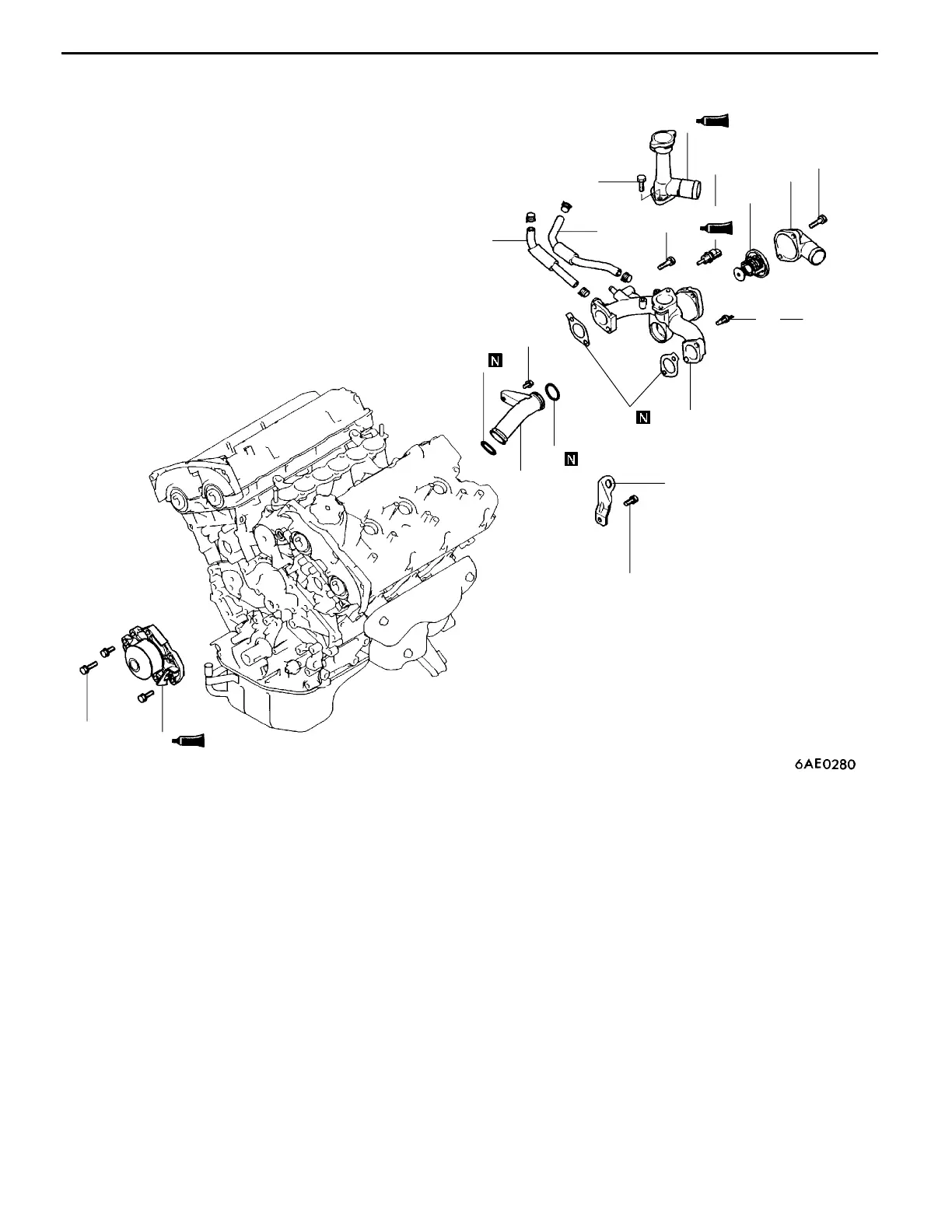

REMOVAL AND INSTALLATION <MIVEC>
1
2
4
5
6
7
8
9
10
11
12
13
14
13 Nm
18 Nm
23 Nm
29 Nm
18 Nm
18 Nm
3
11 Nm
23 Nm
Removal steps
1. Engine hanger
"
F
A 2. Engine coolant temperature gauge
unit
"
E
A 3. Engine coolant temperature sensor
4. Water hose
5. Water hose
6. Water inlet fitting
"
D
A 7. Thermostat
"
C
A 8. Water outlet fitting
9. Thermostat housing
10. Gasket
"
B
A 11. O-ring
"
B
A 12. Water pipe
"
B
A 13. O-ring
"
A
A 14. Water pump
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
