6A1 ENGINE (E-W) -
Fuel and Emission Control Parts
11A-5-3

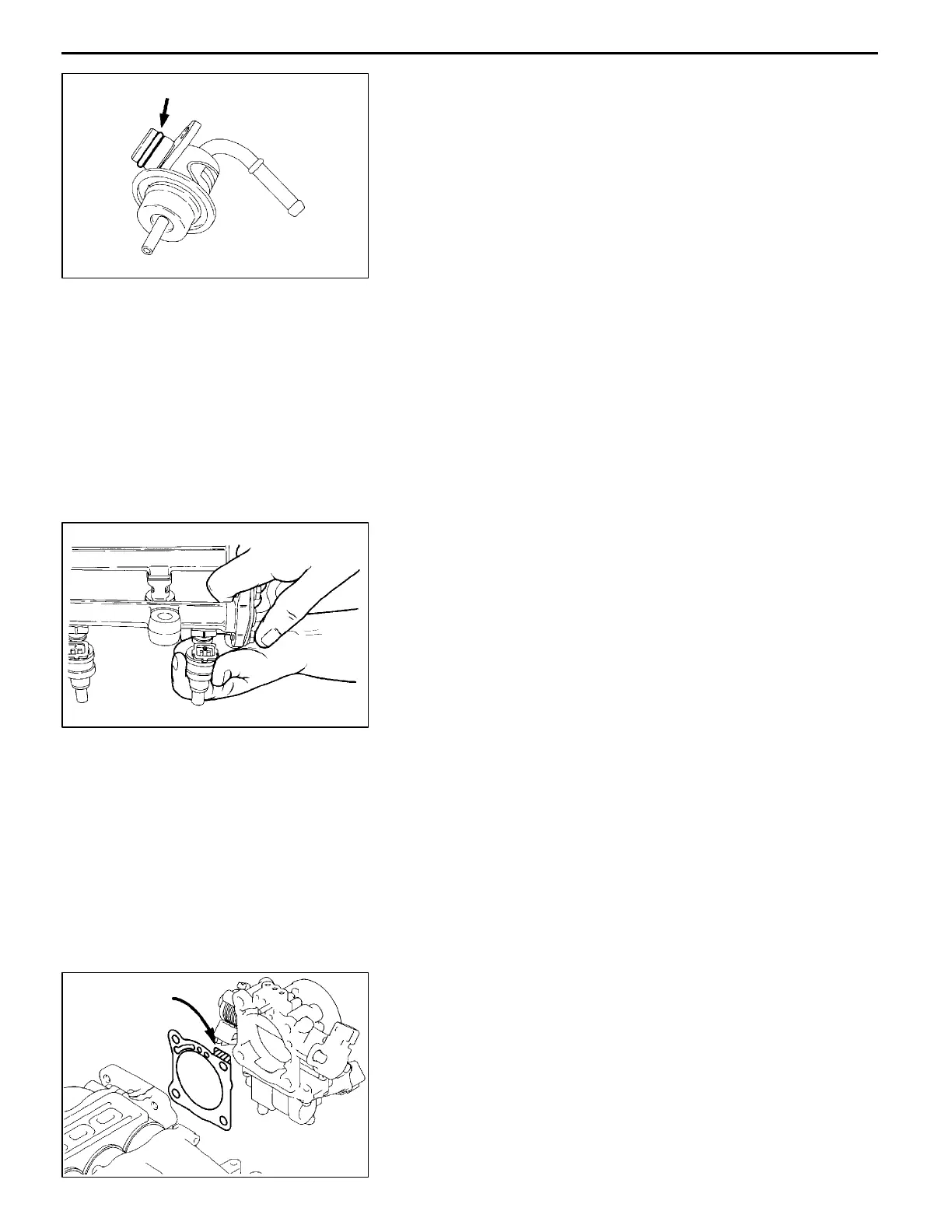

INSTALLATION SERVICE POINTS
"
A
A
FUEL PRESSURE REGULATOR INSTALLATION
(1) Apply spindle oil or gasoline to t he new O-ring installed
on the fuel pressure regulator.
(2) Insert th e fuel pressure regulator in the delivery pipe.
(3) Make sure that the fuel pressure regulator turns smoothly;
then align the threaded holes and tighten the regulator
bolts to specification.
Caution
D
If the regulator does not turn smoothly, the O-ring
probably gets caught somewhere in the delivery
pipe. In such a case, remove the fuel pressure
regulator and reinsert it into the delivery pipe.
Check it againfor smoothrotation beforesecuring.
"
B
A
INJECTOR INSTALLATION
(1) Install new grommet and O-ring on the injector.
(2) Apply spindle oil or gasoline to the O-ring of the injector.
(3) While turning the injector in both directions, install it in
the delivery pipe.
(4) Make sure that the injector turns smoothly.
Caution
D
If the injector does not turn smoothly, the O-ring
probably gets caught somewhere in the delivery
pipe. In such a case, remove the injector and
reinsert it into the delivery pipe. Check it again
for smooth rotation.
(5) On the right bank, align the marks on the injector a nd
delivery pipe.
"
C
A
GASKET INSTALLATION
(1) Locate the projection on the gasket as shown.
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
6AE0061
6AE0062
6AE0277
Projection
