6A1 ENGINE (E-W) -
Rocker Cover and Camshaft <MIVEC>
11A-10-2
INSTALLATION SERVICE POINT
"
A
A

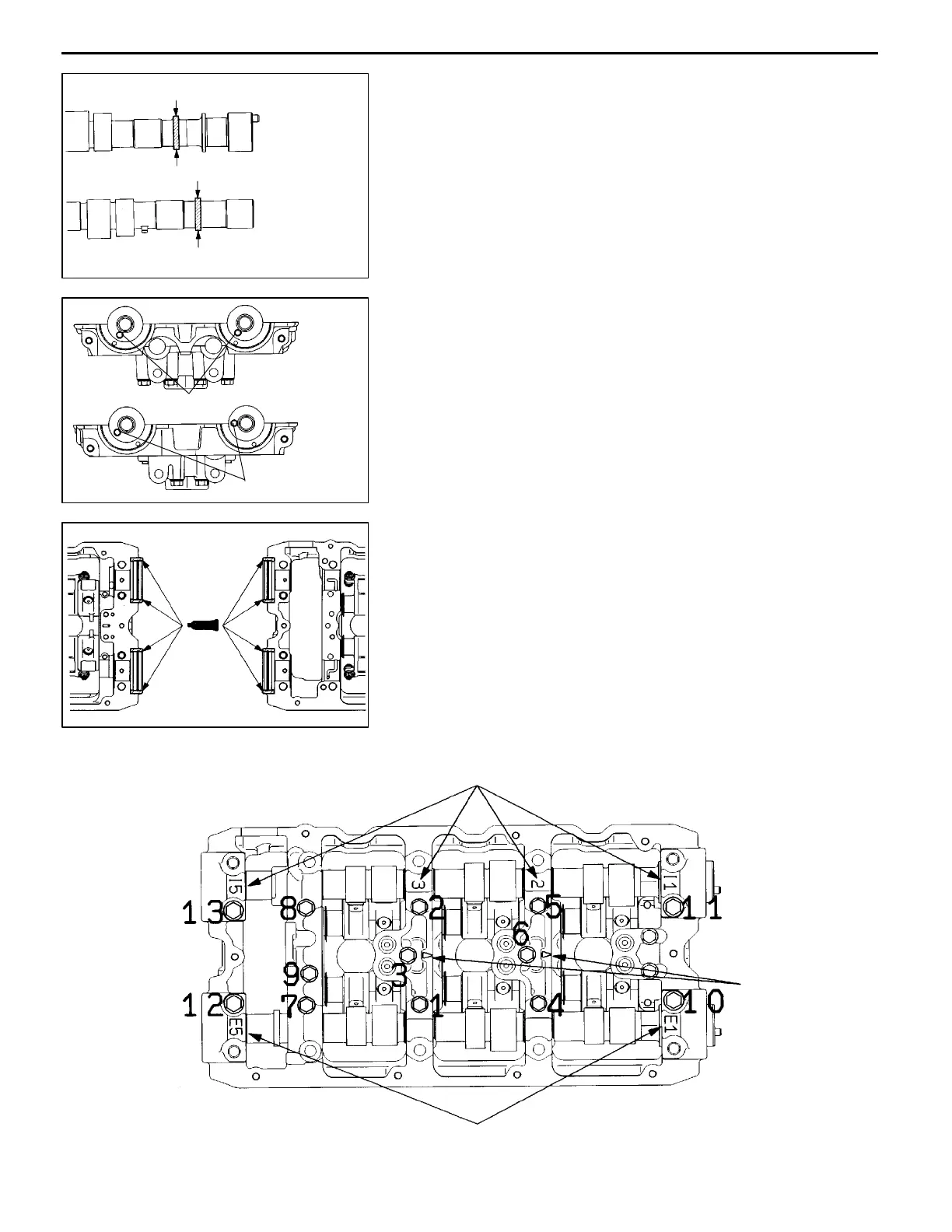

CAMSHAFT INSTALLATION
(1) Intake valve camshaft and exhaust valve camshaft can
be identified by their diameters at the portions indicated
in the illustration.
Intake valve camshaft: 25 mm
Exhaust valve camshaft: 30 mm
(2) Before installing each camshaft, apply engine oil to its
journals and cams.
(3) The camshaft dowel pins must be positioned as shown
in the illustration.
"
B
A
CAMSHAFT BEARING CAP / CAM CAP
INSTALLATION
(1) Apply sealant to th e illustrated points of the camshaft
holders.
Specified sealant:
3M ATD part No. 8660 or equivalent
(2) Install the bearing caps and cam caps correctly according
to the “I” (intake) and “E” (exhaust) marks as well as
the stamped cap numbers and front marks.
(3) Tighten the bolts in the sequence of the numbers shown
in the illustration.
6AE0308
Intake
Exhaust
Cap No.
Cap No.
Front mark
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
6AE0229
Left bank
camshaft
Right bank
camshaft
6AE0230
Right
bank
Dowel pin
Left
bank
Dowel pin
EX
EXIN
IN
6AE0233
