6A1 ENGINE (E-W) -
Rocker Arm and Rocker Shaft Cap <MIVEC>
11A-11-2
INSTALLATION SERVICE POINTS
"
A
A

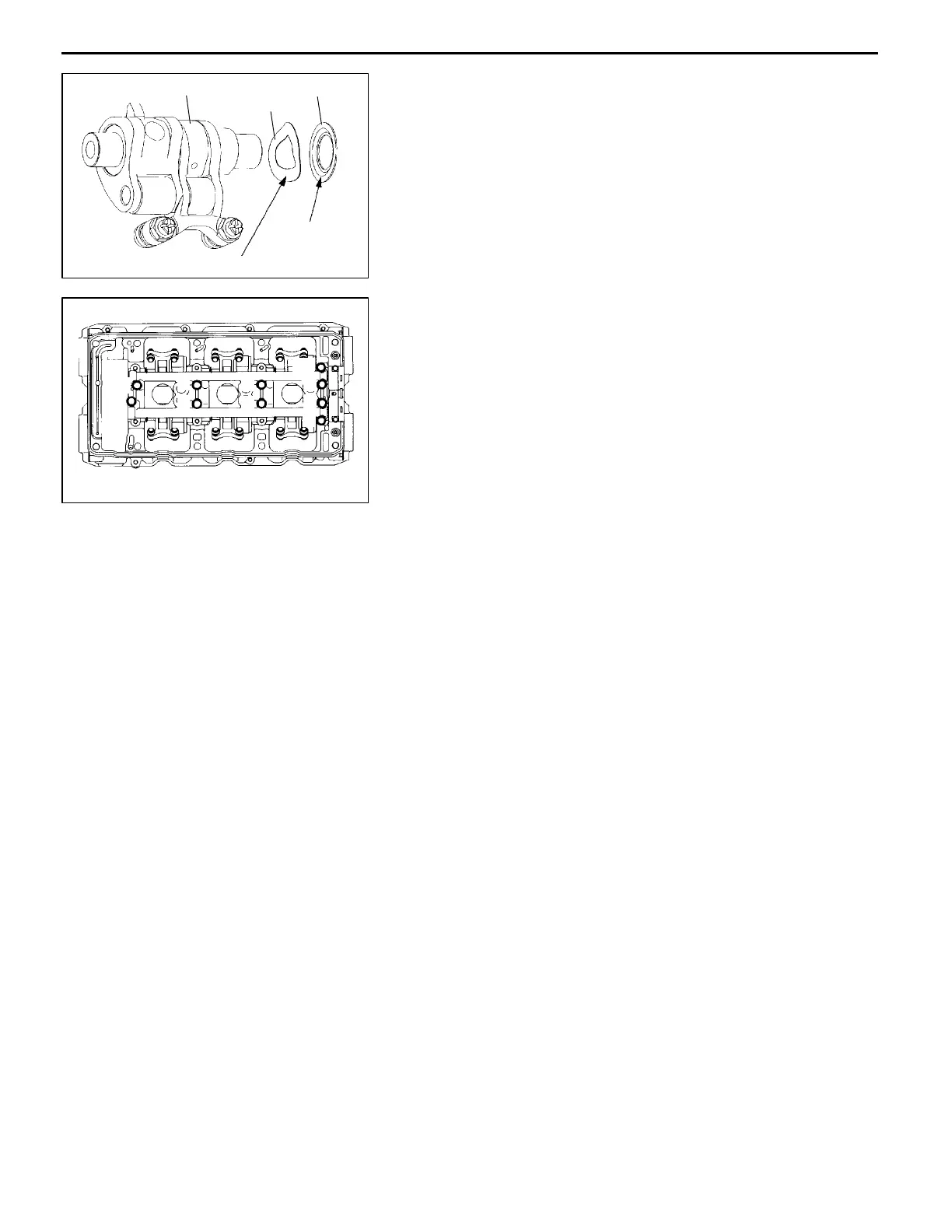

SPRING GUIDE INSTALLATION
(1) Install the spring guide with the concave side toward
the rocker arm. The waved washer may be installed with
either side out.
"
B
A
ROCKER SHAFT CAP INSTALLATION
(1) Tighten the bolts in the sequence shown.
(2) Make sure that each rocker arm moves smoothly.
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
6AE0247
Spring guide
Waved washer
T-lever
Either side may be out
Concave
side
6AE0249
9
7
8
10
3
4
1
2
5
6
