6A1 ENGINE (E-W) -
Rocker Arm and Rocker Shaft Cap <MIVEC>
11A-11-1

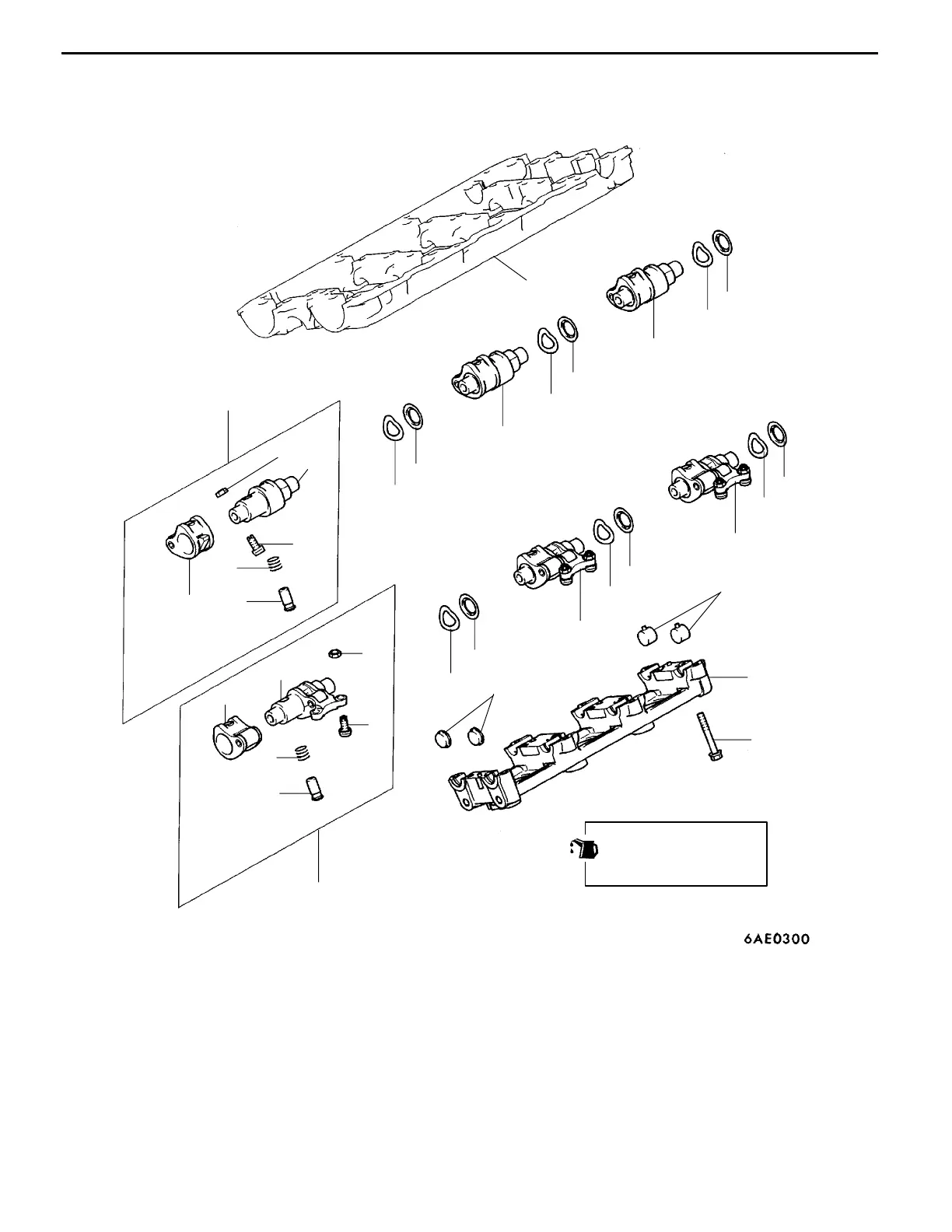

11. ROCKER ARM AND ROCKER SHAFT CAP <MIVEC>
REMOVAL AND INSTALLATION
Apply engine oil to all
moving parts before
installation.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
11 Nm
22
20
21
13
20
21
20
21
13
19
18
4
11
12
11
12
4
Removal steps
"
B
A 1. Rocker shaft cap
2. Seal cap A
3. Seal cap C
4. Intake rocker arm assembly A
5. Nut
6. Adjusting screw
7. Intake rocker arm H
8. Piston H
9. Piston spring H
10. Intake T-lever
"
A
A 11. Spring guide
12. Wave washer
13. Exhaust rocker arm assembly A
14. Nut
15. Adjusting screw
16. Exhaust rocker arm H
17. Piston H
18. Piston spring H
19. Exhaust T-lever L
"
A
A 20. Spring guide
21. Wave washer
22. Camshaft holder
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
