6A1 ENGINE (E-W) -
Ignition System
11A-6-2
REMOVAL AND INSTALLATION <MIVEC>
1
2
3
25 Nm
1.0 Nm

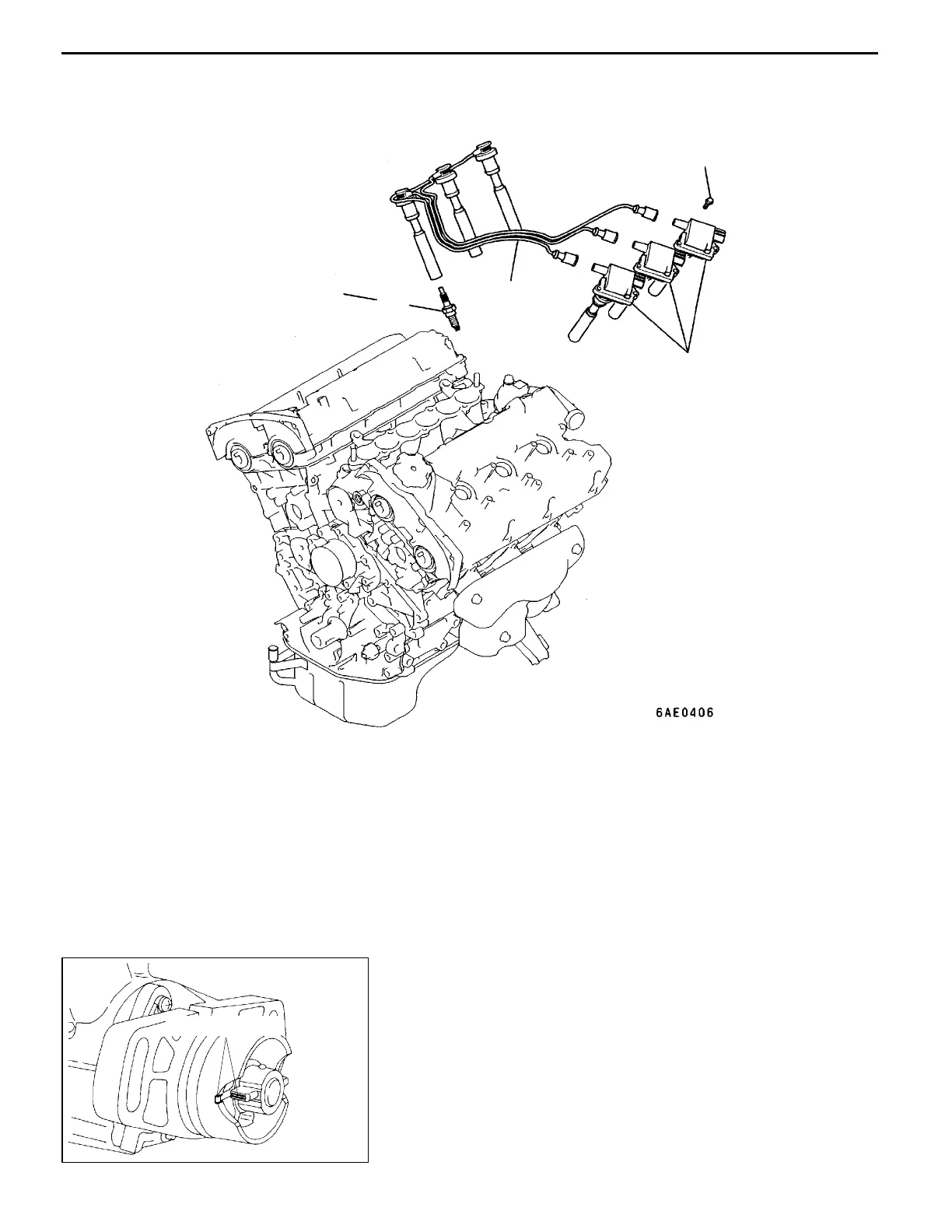

Removal steps
1. Spark plug cable
2. Ignition coil
3. Spark plug
INSTALLATION SERVICE POINT
"
A
A
DISTRIBUTOR INSTALLATION
(1) Turn t he crankshaft clockwise to bring the No. 1 cylinder
piston to the compression stroke top dead center.
(2) Align the mark on the distributor housing with the mark
on the coupling.
(3) Install the distributor while aligning t he coupling key with
the keyway in the camshaft end.
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
6AE0151
Alignment mark
