6A1 ENGINE (E-W) -
Rocker Cover and Camshaft <MIVEC>
11A-10-1

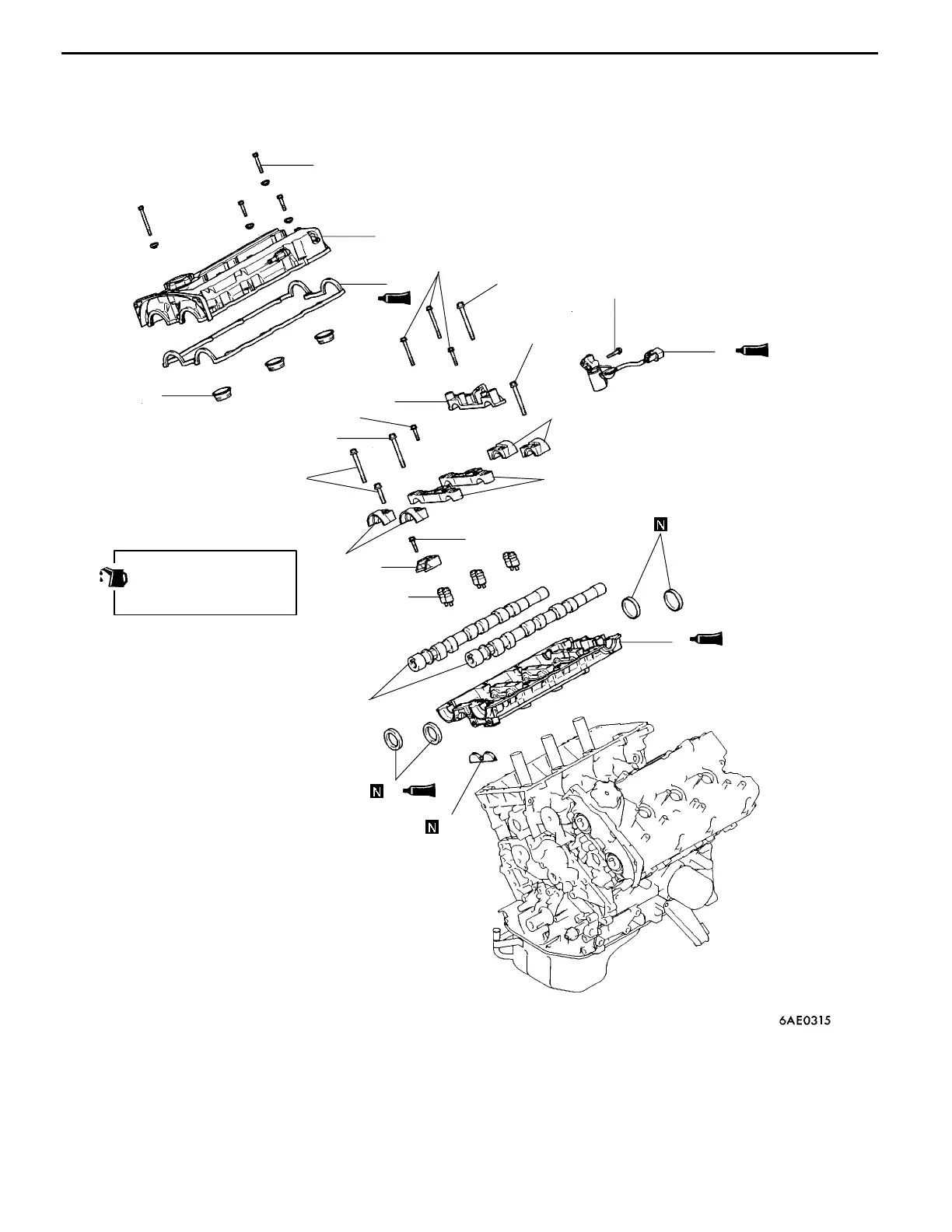

10. ROCKER COVER AND CAMSHAFT <MIVEC>
REMOVAL AND INSTALLATION
Apply engine oil to all
moving parts before
installation.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
4Nm
24 Nm
11 Nm
11 Nm
11 Nm
9
24 Nm
24 Nm
24 Nm
9Nm
Removal steps
"
G
A 1. Rocker cover
2. Rocker cover gasket
3. Oil seal
"
F
A 4. Circuit packing
"
E
A 5. Oil seal
"
D
A 6. Camshaft holder
"
D
A 7. Semi-circular packing
"
C
A 8. Oil control valve
"
B
A 9. Cam cap
10. Oil control valve holder
"
B
A 11. Camshaft bearing cap
12. Arm spring holder
13. Arm spring
"
A
A 14. Camshaft
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
