Mitsubishi 6A1 series

6A1 ENGINE (E-W) -
Water Pump and Water Pipe
11A-7-1

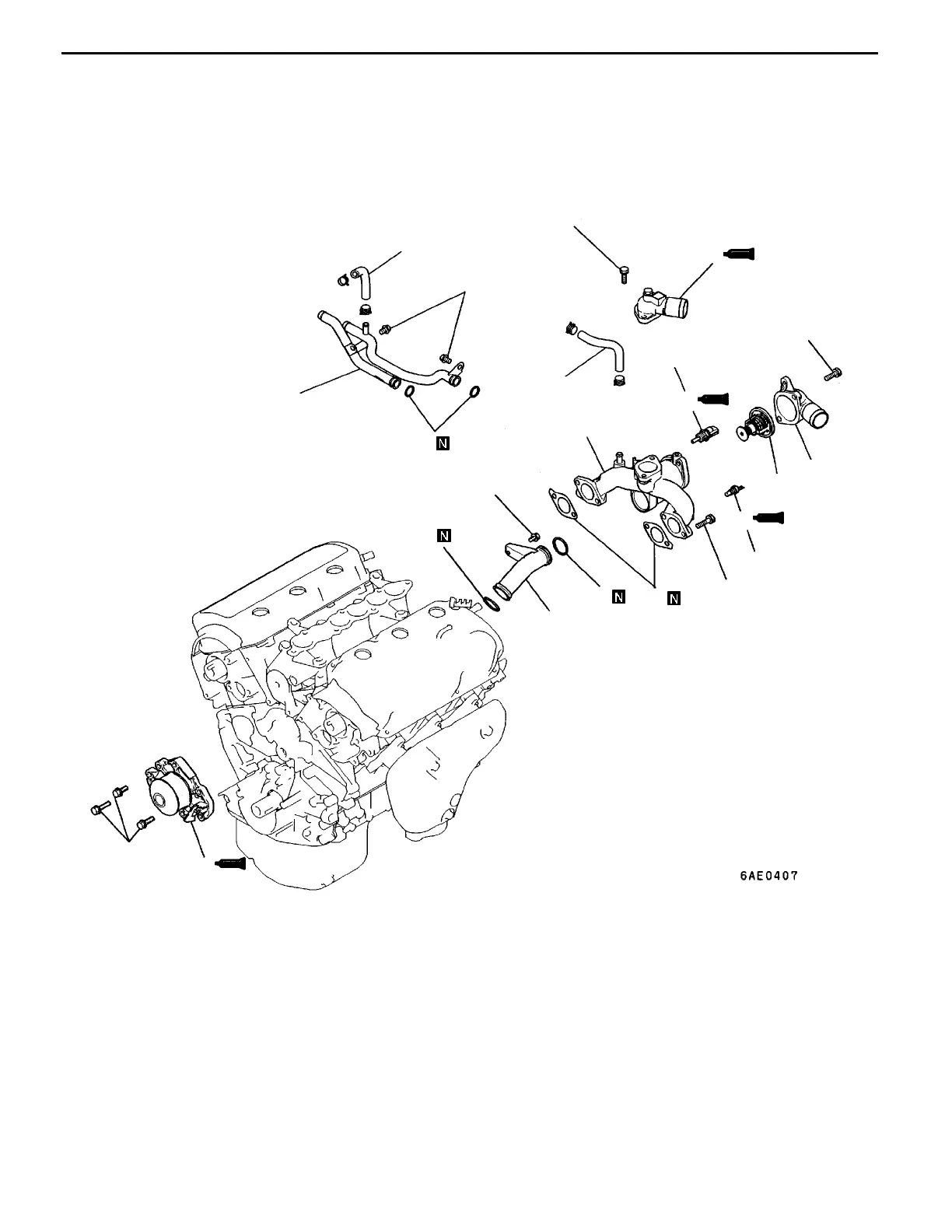

7. WATER PUMP AND WATER PIPE
REMOVAL AND INSTALLATION <SOHC>
1
2
3
4
5
6
7
8
9
10
1112
13
14
15
13 Nm
18 Nm
23 Nm
29 Nm
11 Nm
23 Nm
23 Nm
18 Nm
Removal steps
"
F
A 1. Engine coolant temperature gauge
unit
"
E
A 2. Engine coolant temperature sensor
3. Water hose
4. Water hose
5. Heater pipe
6. O-ring
7. Water inlet fitting
"
D
A 8. Thermostat
"
C
A 9. Water outlet fitting
10. Thermostat housing
11. Gasket
"
B
A 12. O-ring
"
B
A 13. Water pipe
"
B
A 14. O-ring
"
A
A 15. Water pump
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
