6A1 ENGINE (E-W) -
Cylinder Head and Valves
11A-12-2

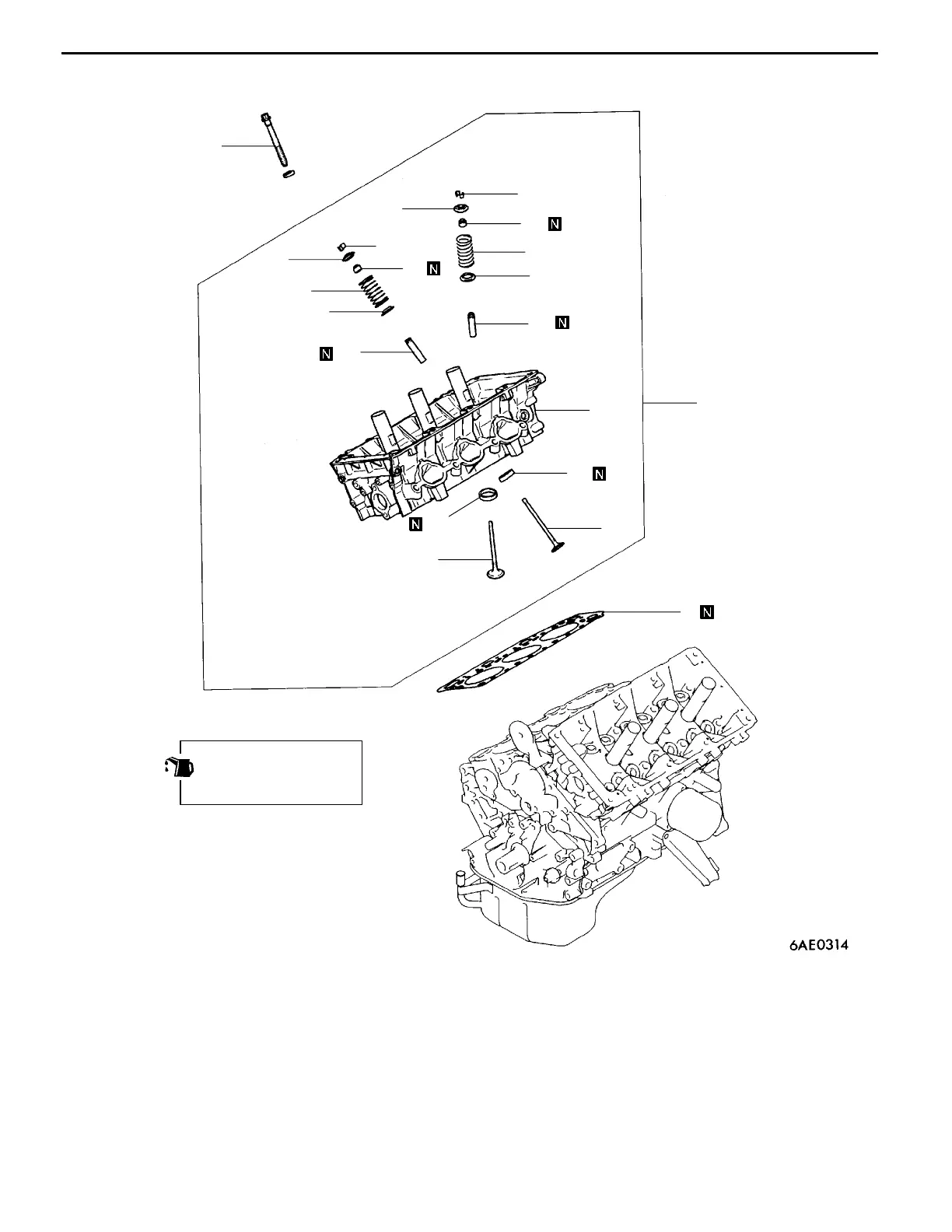

REMOVAL AND INSTALLATION <MIVEC>
Apply engine oil to all
moving parts before
installation.
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
20
19
11
18
Removal steps
A
A
""
D
A 1. Cylinder head bolt
2. Cylinder head
3. Cylinder head gasket
A
B
""
C
A 4. Retainer lock
5. Valve spring retainer
"
B
A 6. Valve spring
7. Intake valve
A
B
""
C
A 8. Retainer lock
9. Valve spring retainer
"
B
A 10. Valve spring
A
D
" 11. Exhaust valve
A
C
""
A
A 12. Valve stem seal
13. Valve spring seat
A
C
""
A
A 14. Valve stem seal
15. Valve spring seat
16. Intake valve guide
17. Exhaust valve guide
18. Intake valve seat
19. Exhaust valve seat
20. Cylinder head
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
