6A1 ENGINE (E-W) -
Cylinder Head and Valves
11A-12-10

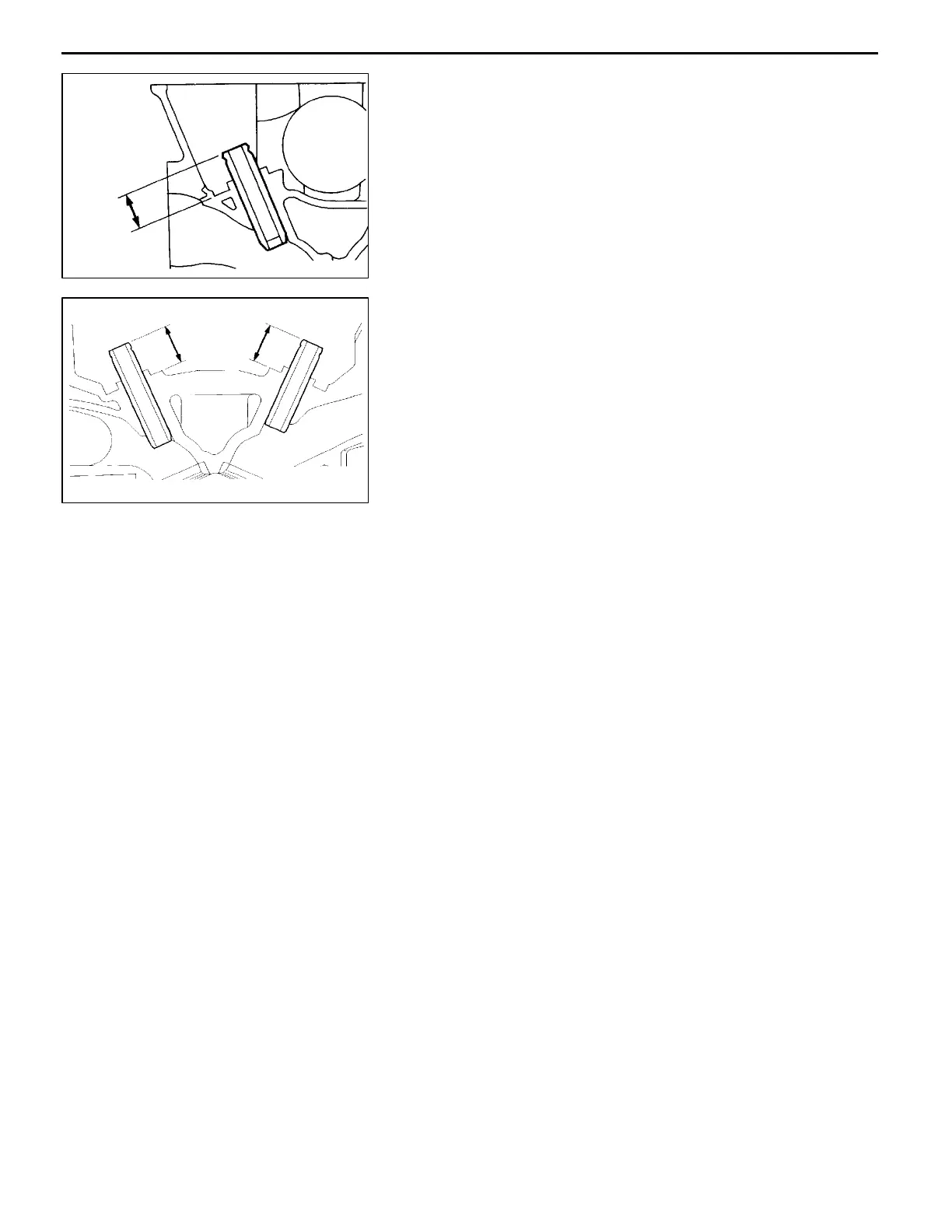

(3) Press-fit the valve guide until it protrude specified value
(SOHC: 14 mm, DOHC: 19 mm) as shown in the
illustration.
Caution
D
Press the valve guide from the cylinder head top
surface.
D
Valve guide for intake valve and that for exhaust
valve are different in length. (45.5 mm for intake
valve; 50.5 mm for exhaust valve)
(4) After the valve guide has been installed, insert a new
valve to check for smooth sliding motion.
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
1EN0106
14 mm
<SOHC>
6AE0254
<DOHC>
19 mm
19 mm
