6A1 ENGINE (E-W) -
Oil Pump Case and Oil Pan
11A-13-2

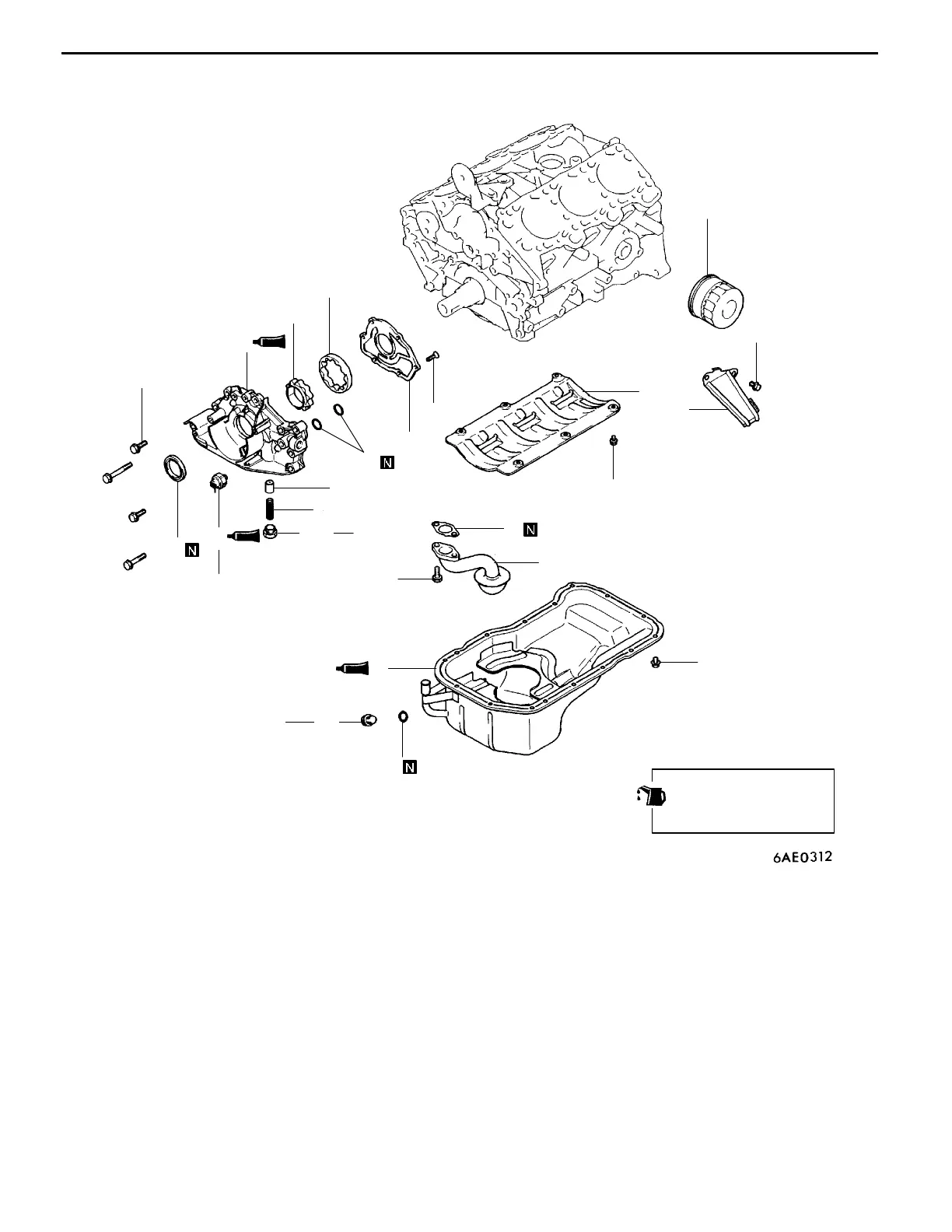

REMOVAL AND INSTALLATION <MIVEC>
Apply engine oil to all
moving parts before
installation.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19 Nm
39 Nm
21 Nm
44 Nm
7Nm
7Nm
10 Nm
14 Nm
18
12 Nm
Removal steps
"
I
A 1. Oil pressure switch
"
H
A 2. Oil filter
3. Oil filter cover
4. Drain plug
"
F
A 5. Gasket
A
A
""
E
A 6. Oil pan
7. Oil screen
8. Gasket
9. Buffle plate
10. Relief plug
11. Relief spring
12. Relief plunger
"
C
A 13. Oil seal
"
B
A 14. Oil pump case
15. O-ring
16. Oil pump case cover
"
A
A 17. Outer rotor
"
A
A 18. Inner rotor
PWEE9622
E
Feb. 1997Mitsubishi Motors Corporation
