INSTALLATION SERVICE POINTS

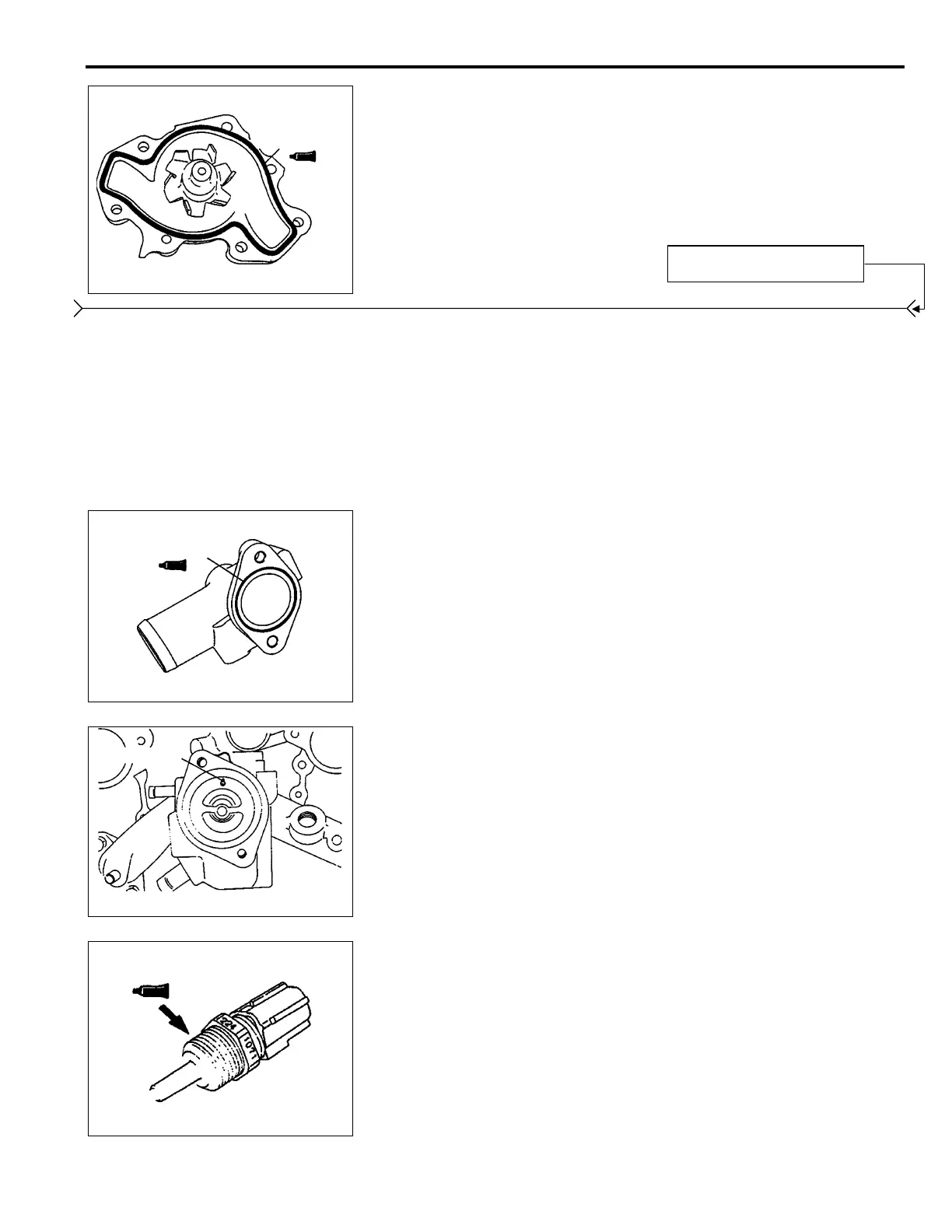

SEALANT APPLICATION TO WATER PUMP
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or equivalent
WATER PIPE / O-RING INSTALLATION
(1) Wet the O-ring (with water) to facilitate assembly.
Caution
•
Keep the O-ring free of oil or grease.
•
Secure the water pipe after the thermostat housing
has been installed.
SEALANT APPLICATION TO WATER OUTLET FITTING
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or equivalent
THERMOSTAT INSTALLATION
(1) Install the thermostat so that the jiggle valve will be located in
the thermostat housing as shown.
SEALANT APPLICATION TO ENGINE COOLANT
TEMPERATURE SENSOR
Specified sealant:
3M Nut locking Part No. 4171 or equivalent
ENGINE 6A1 (E-W) Workshop Manual
6A1
ENGINE (E-W) –
Water Pump and Water Pipe
11A-7-3
6AE0067
3 mm diameter
bead sealant
4
th
page added here.
3 mm diameter
bead sealant
6AE0068
6AE0069
Jiggle valve
6AE0070
A
◄
►
B
◄
►
C
◄
►
D
◄
►
E
◄
►
